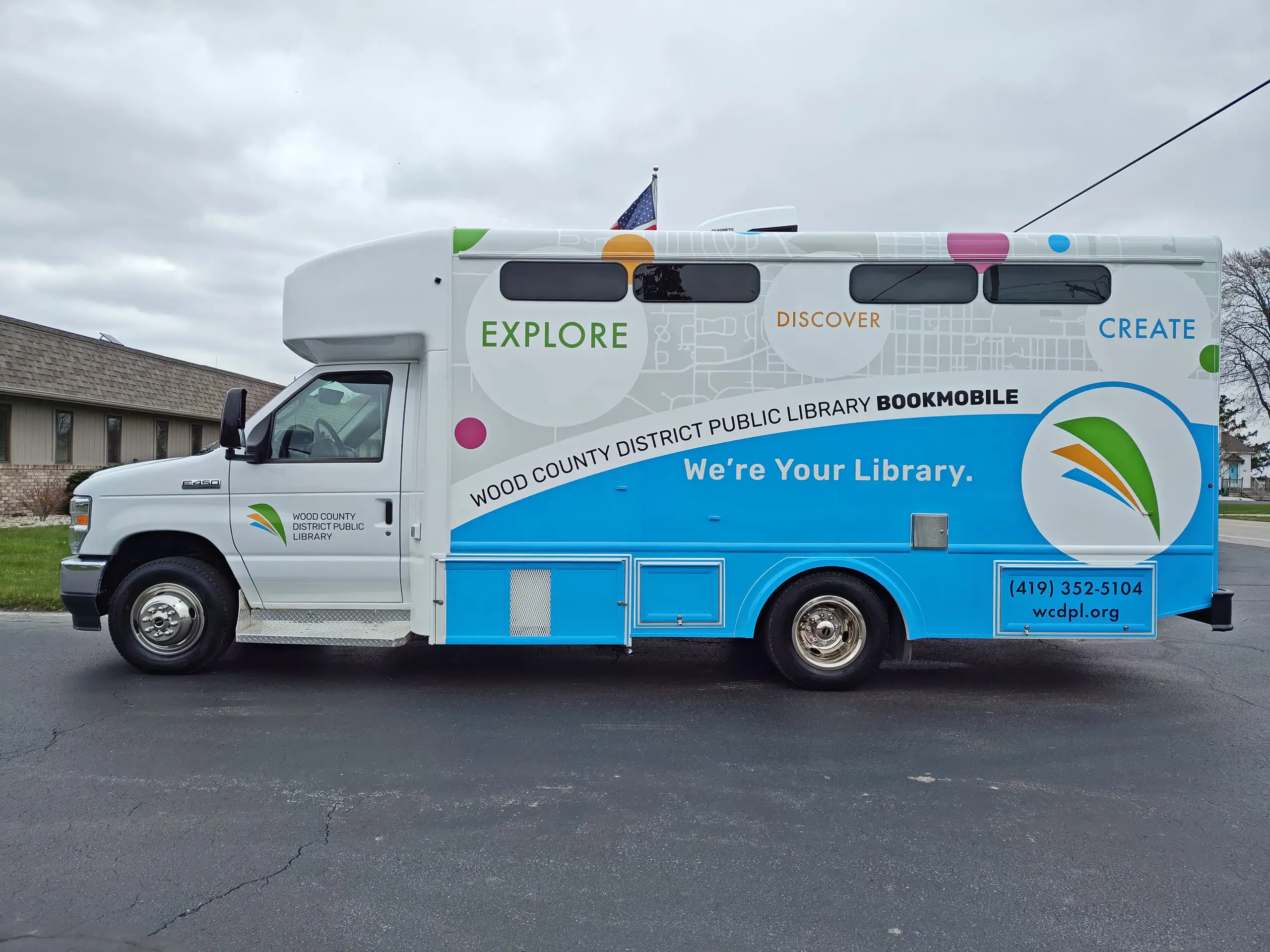

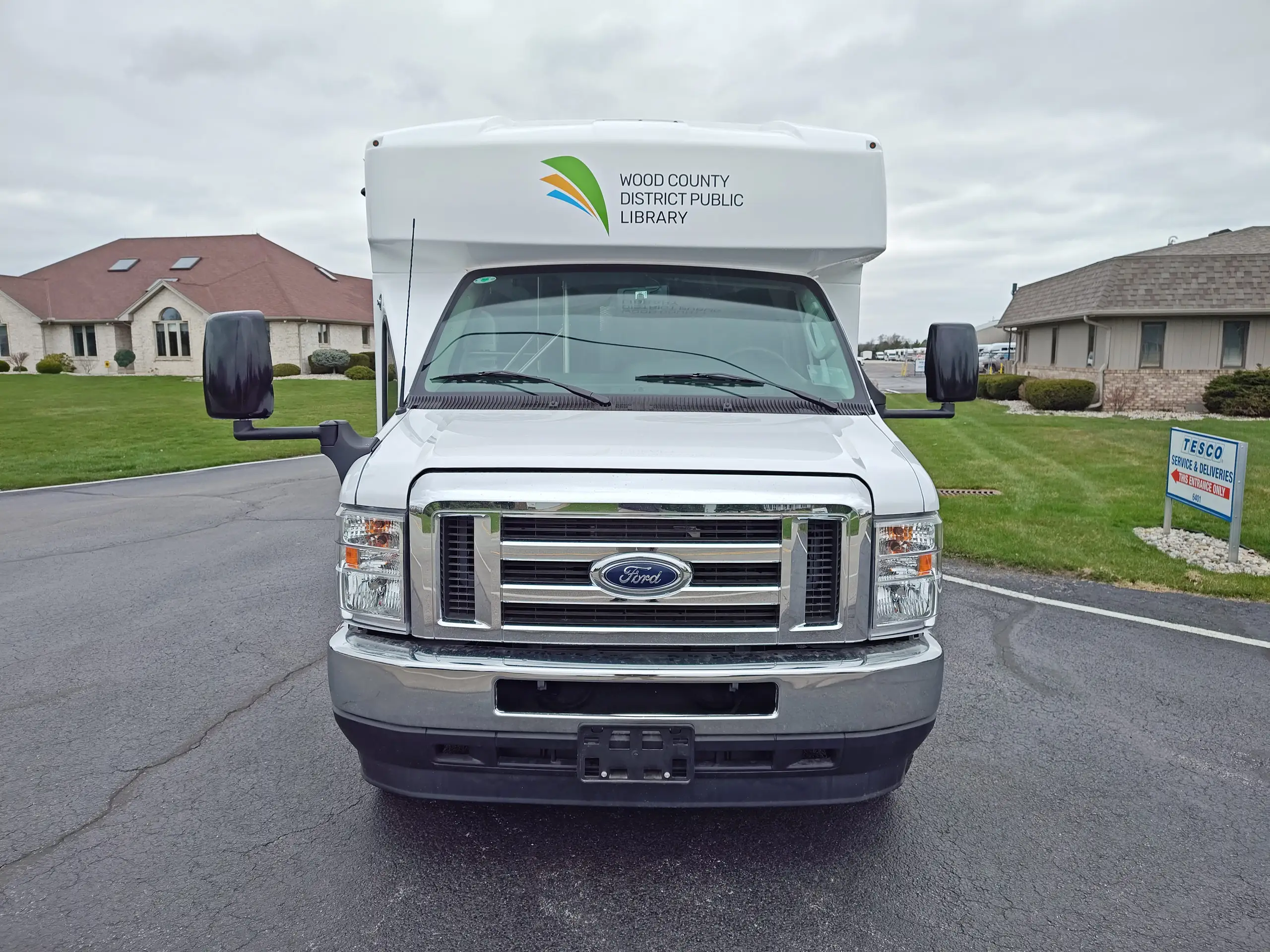

24ft One Room Bookmobile with Wheelchair Lift
Group G-3

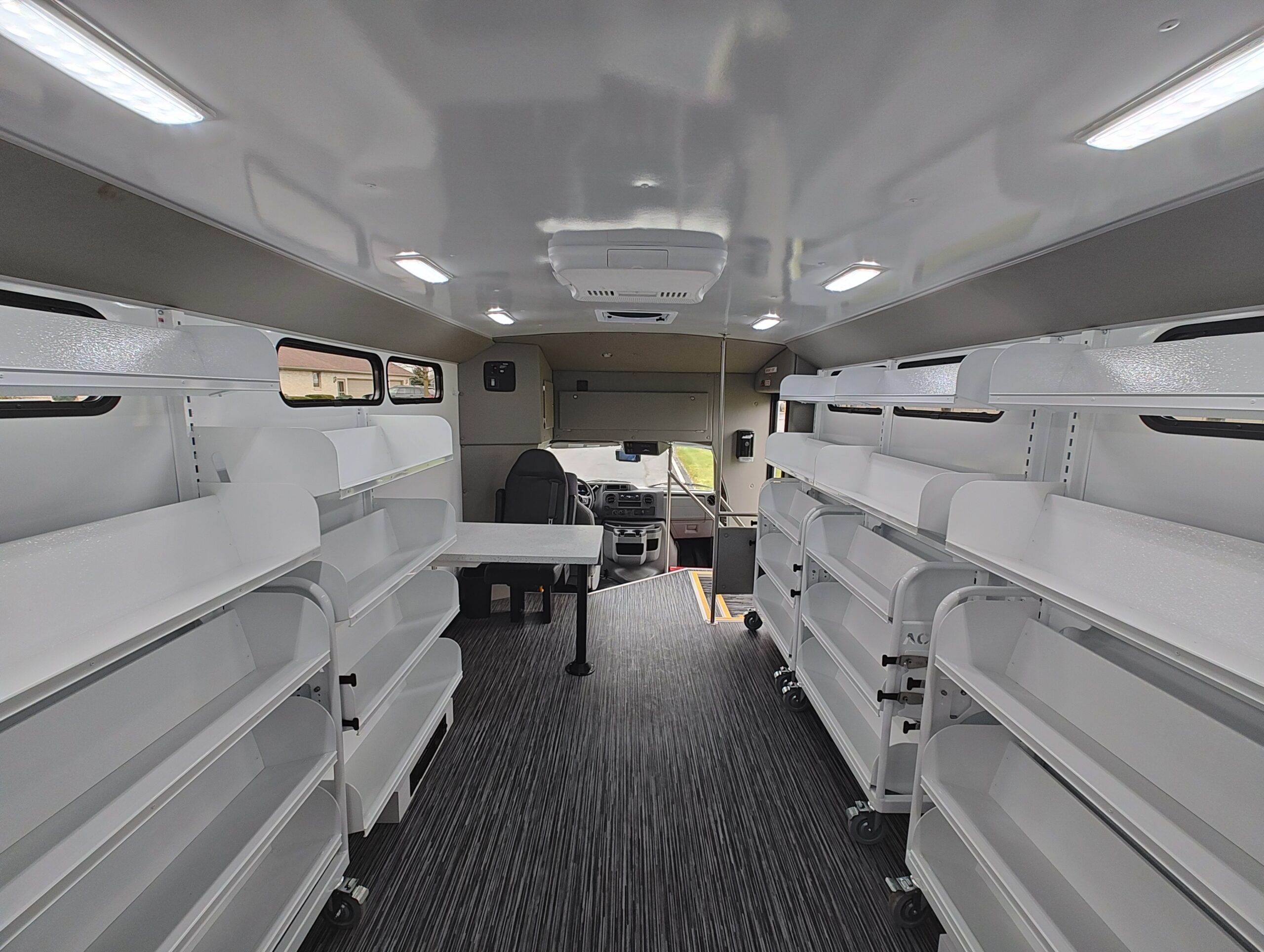

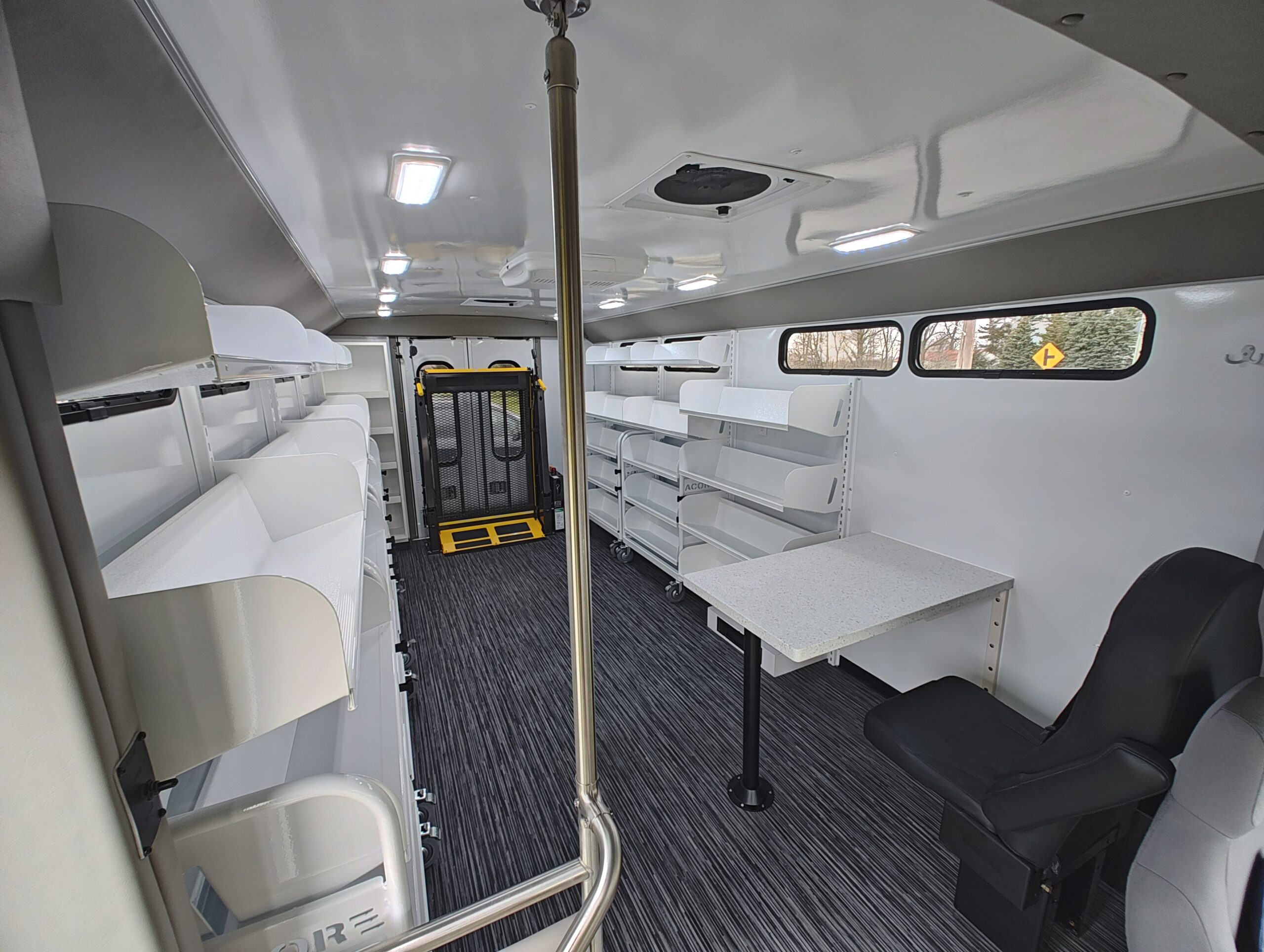

The new Ford E-450 is a smaller-sized, bookmobile unit with plenty of shelf space to hold inventory. It’s easy to drive and comes with standard features like an Acore book carts and shelving, check-in desk w/ chair, custom cabinetry, flip seat, and a Braun wheelchair lift. The model includes a full roll cage for safety and has a roomy straight wall exterior design. The Ford E-450 is a versatile and reliable option for any customer looking to start a bookmobile program!

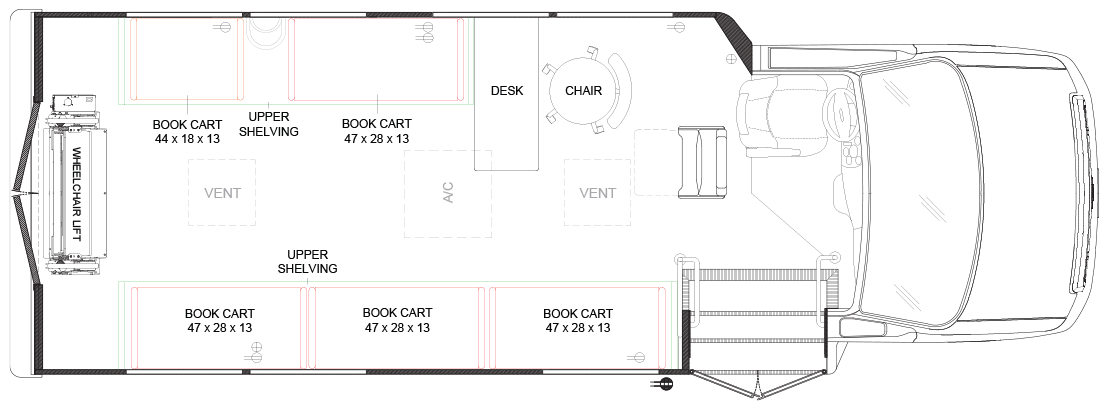

Check Floor Plan
Floorplan
Vehicle Description
Standard Chassis Equipment
- Ford E‐450 7.3L V8 Gas Engine
- 14,500 GVWR
- 6 Speed Automatic Transmission
- 225/75RX16E Tires
- 50 State Emissions
- Cruise Control
- Dual Batteries
- 55 Gallon Fuel Tank
- Daytime Running Lights
- AM/FM/USB Radio with 4 Speakers
Standard Body Equipment
- Welded Tubular Steel Cage
- Drive Shaft Guards
- Rear Mud Flaps
- Steel Cage Primered w/Rust Inhibitor
- Underbody Foam Sealed and Undercoated
- 3/4" Coosa Composite Subfloor
- Fiberglass Flat Vertical Sidewalls
- White Fiberglass Gel Coat Exterior
- 1' Polystyrene Foam Board Insulation
- Tinted A‐Panel Window in Cab
- LED Interior and Exterior Lighting
- Heavy‐Duty Steel Powder‐Coated Rear Bumper
- Velvac Exterior Manual Mirrors ﴾L & R﴿ on Terra Transit
Additional Chassis Equipment
- Full Wheel Alignment ‐ Castor & Camber
Additional Equipment

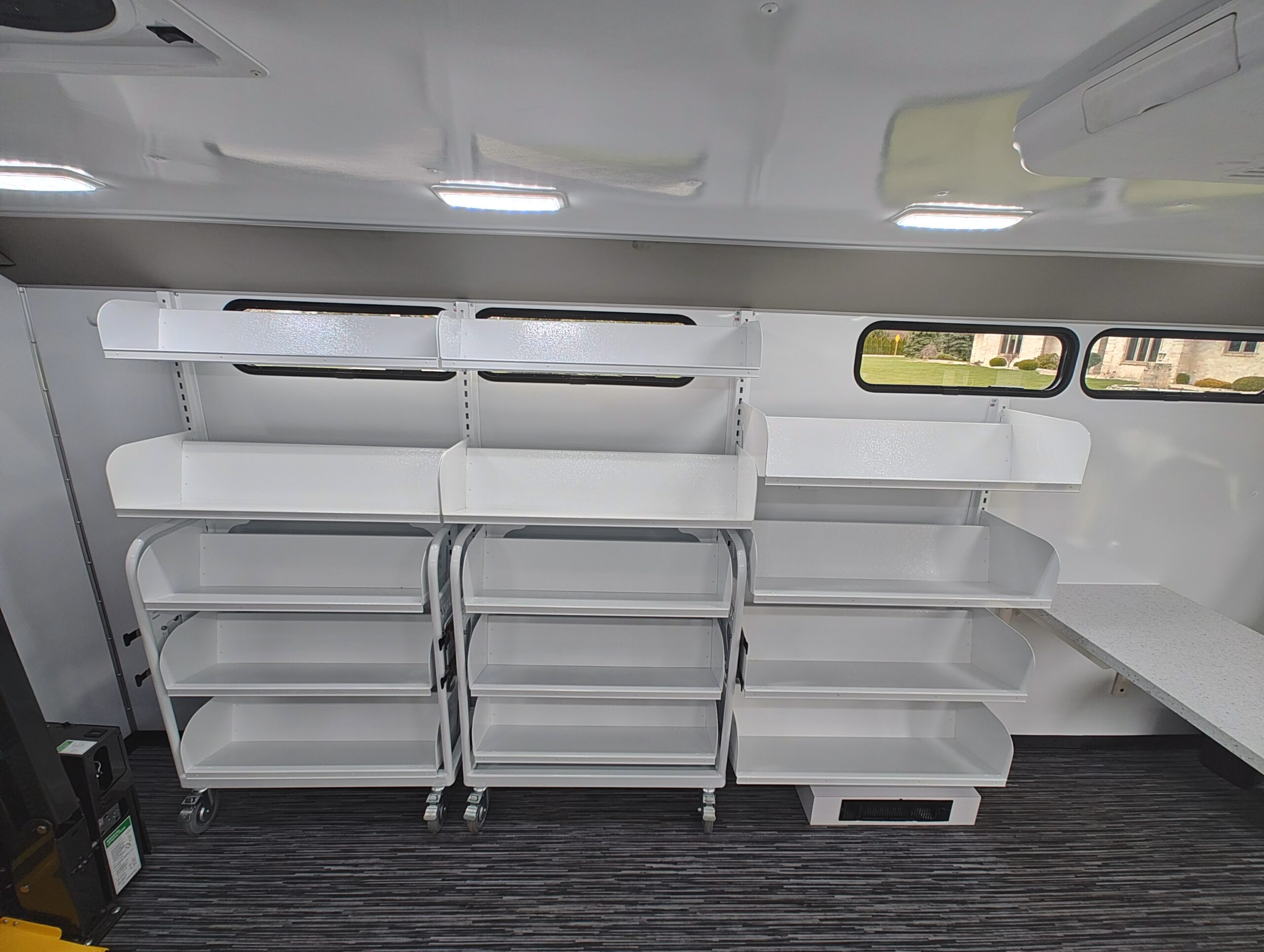

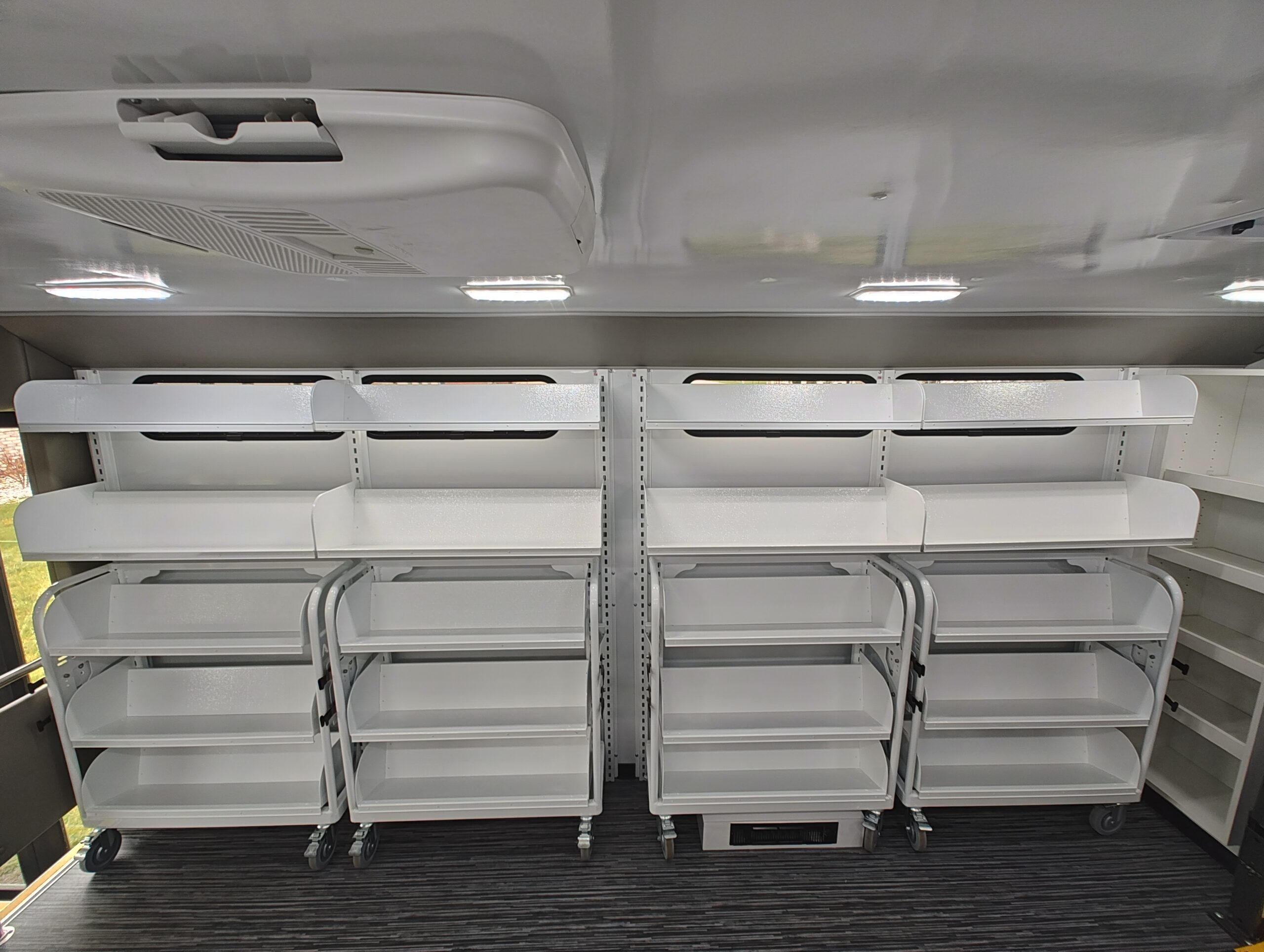

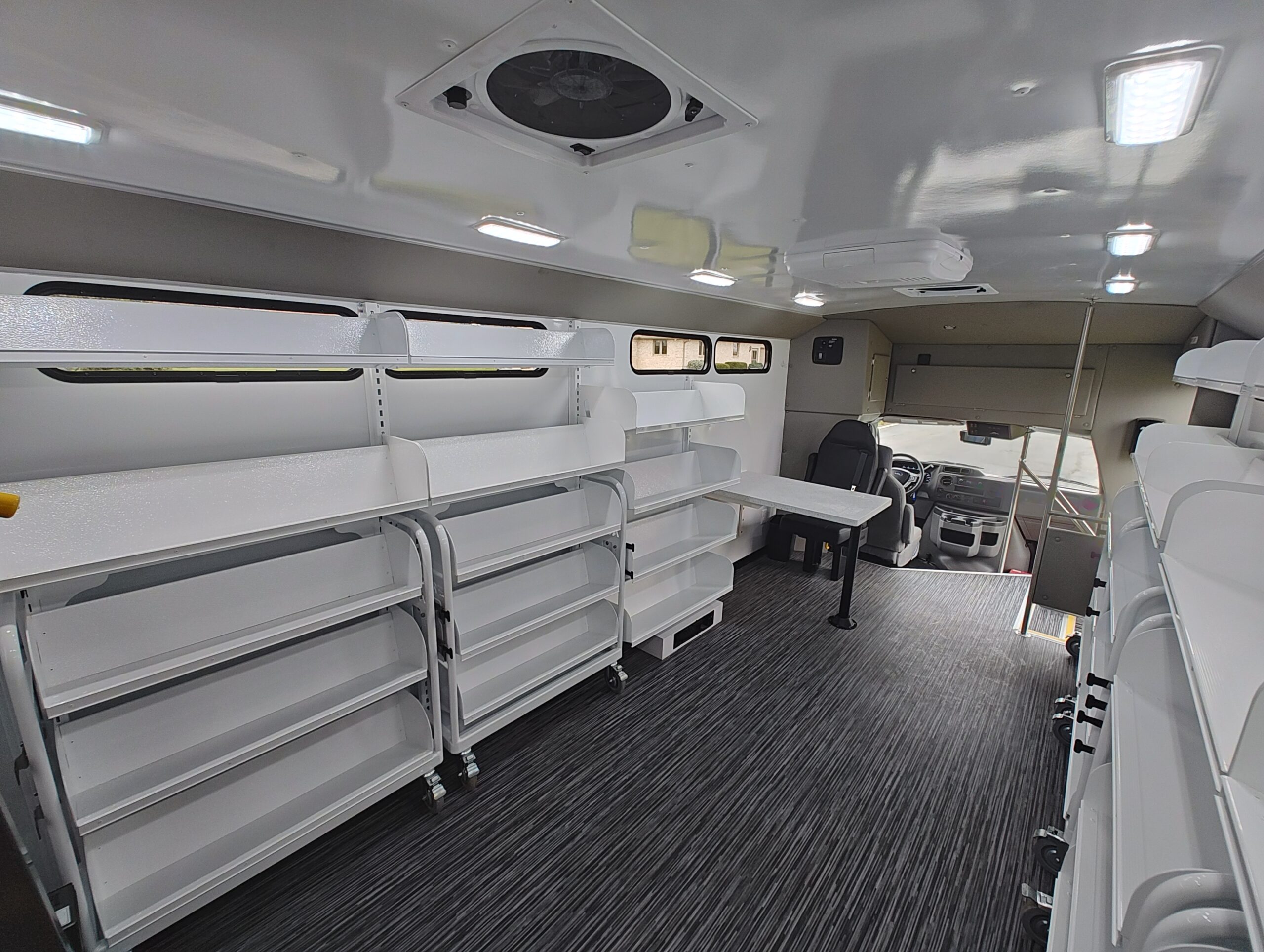

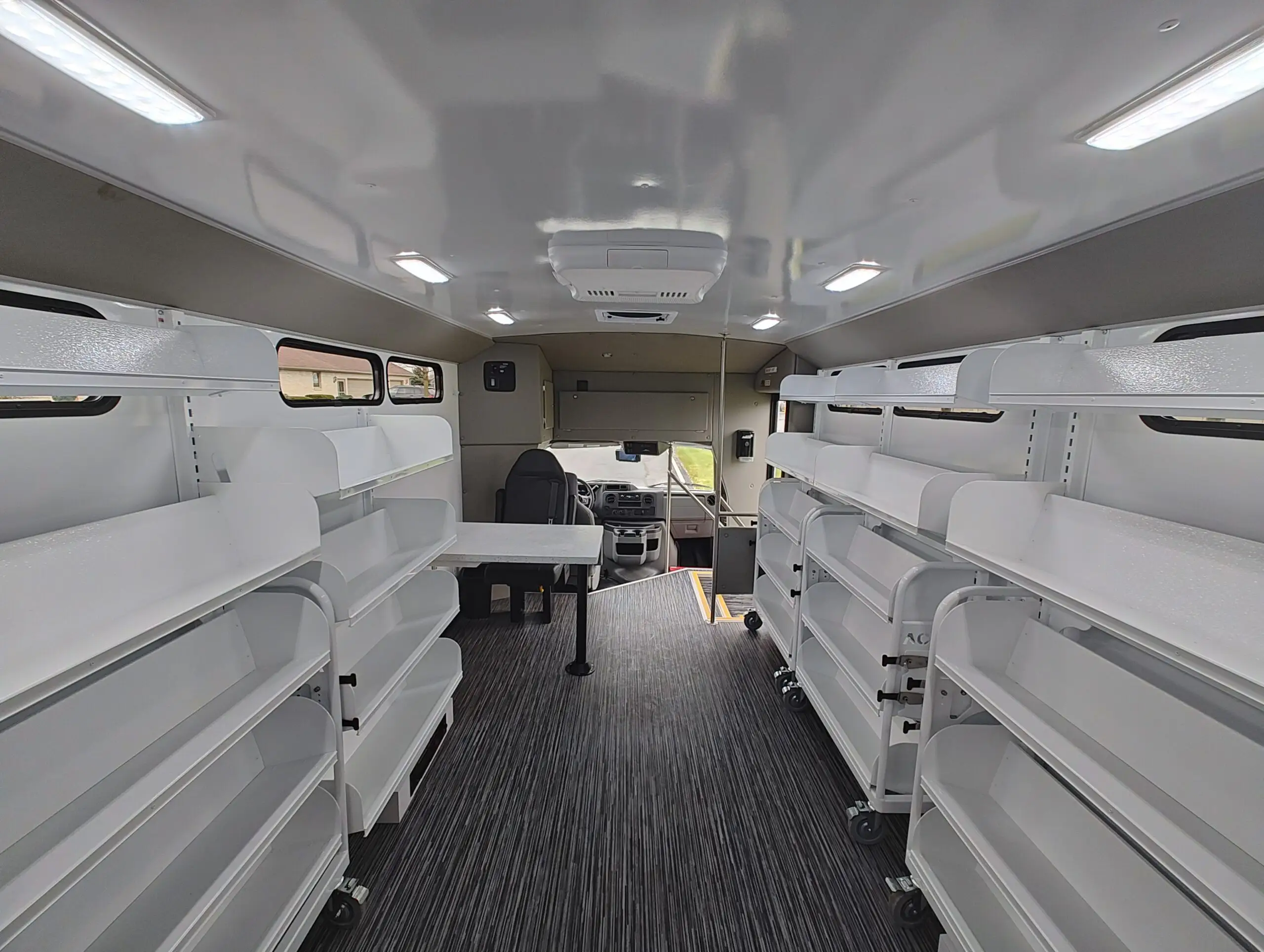

- Acore Metal Shelving
- LED Light Strip for book shelves
- ﴾2﴿ Floor Wall Heater 1000W 120V
- ﴾2﴿ Smoke/Carbon Detector
- ﴾2﴿ Trash Can
Additional Installed Options
- Curtain Hold Back Strap
- Wheel Liners Stainless Steel E350/450 w/Valve Ext.
- Vent Fan Header Compartment
- 5 Lb. Extinguisher 3A 40 BC
- First Aid Kit ‐ 24 Unit
- Gel Hand Sanitizer
- Vent Fan Cover‐ For Header Comp.
- ﴾2﴿ Coat Hook
- Triangle Reflectors
- ﴾2﴿ Storage Compartment Lock 1 3/8" Keyed
Climate Control
- ﴾2﴿ Roof Vent ‐ Fantastic 4000 Series 14"

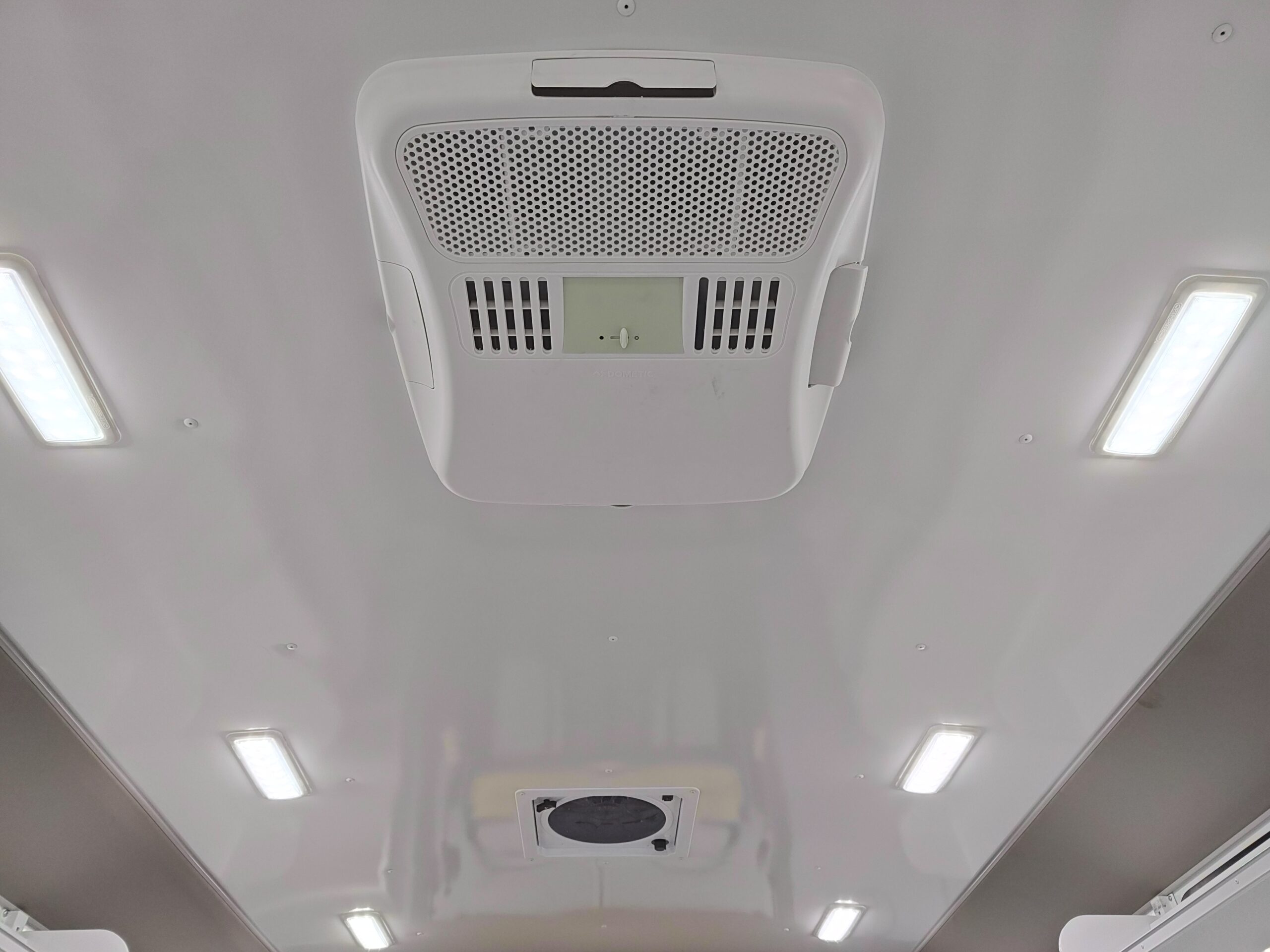

- Roof A/C 15,000 BTU with Thermostat
Doors/Windows/Mirrors
- Interior Door Switch ﴾For Front Passenger Entrance Door﴿

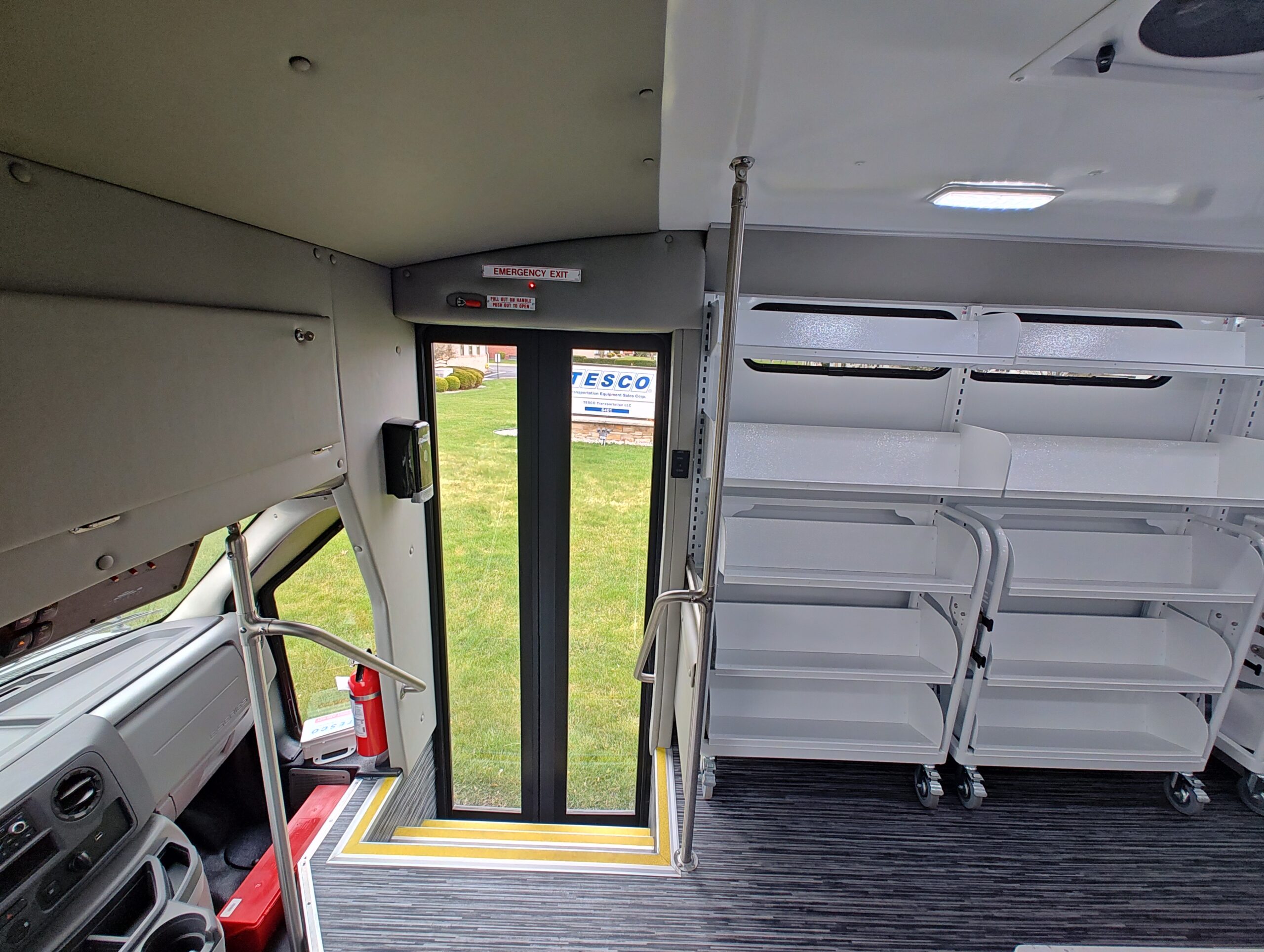

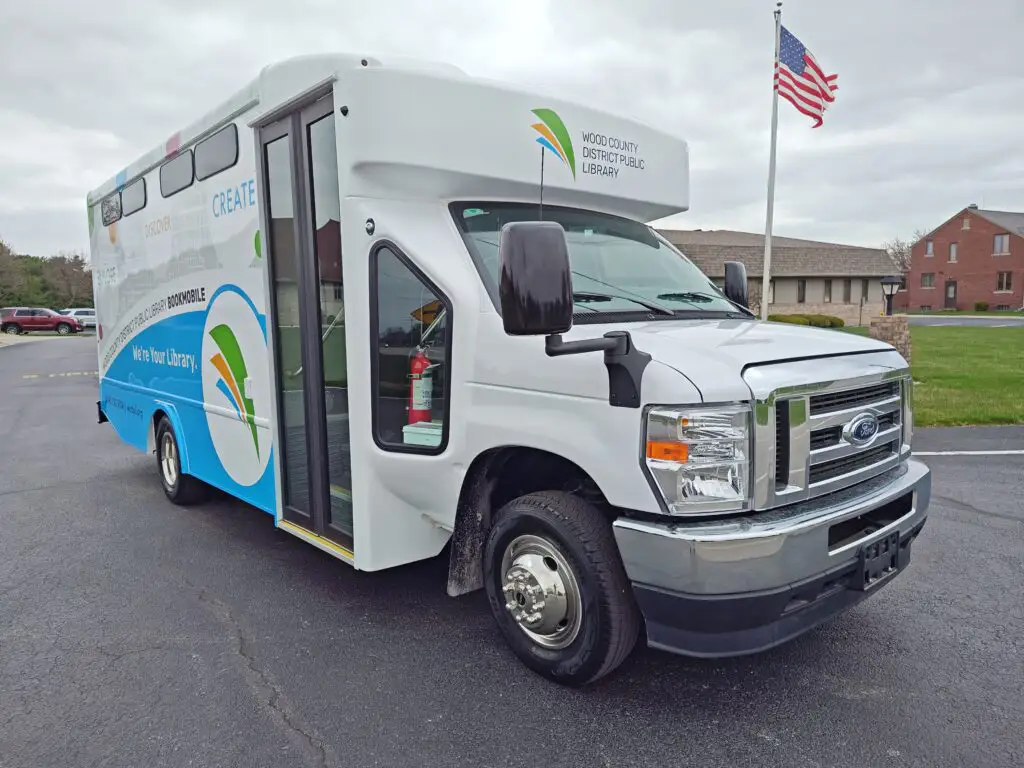

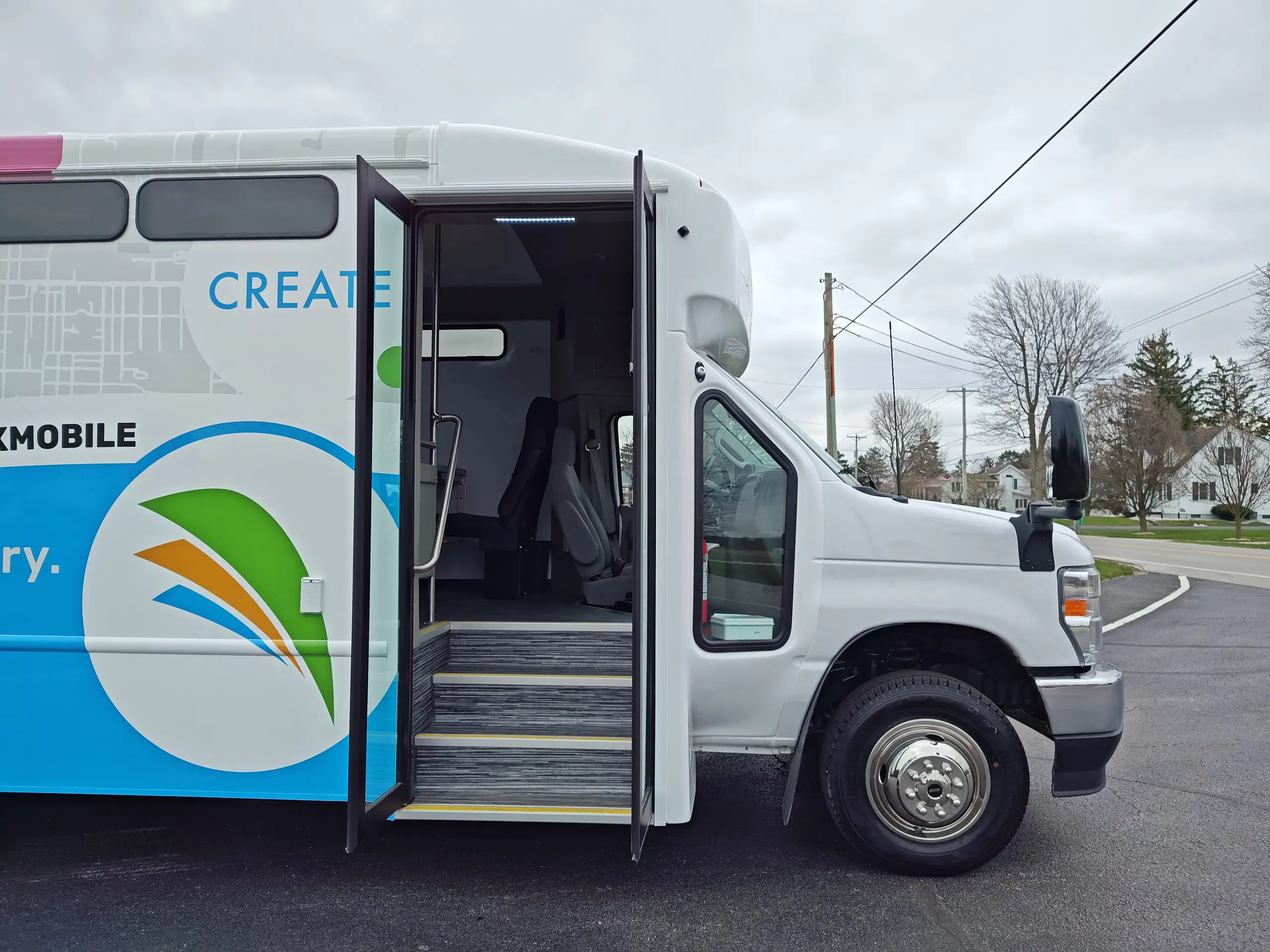

- Entrance Door, Electric ‐ Built In Cab, 29"
- Kubota Key Switch ‐ Exterior
Electrical
- 2000w Inverter Located in the B‐Pillar
- 110V Transfer Switch
- Wire One 110v Outlet To Be Hot At All Times
- ﴾6﴿ 110v Outlet with Faceplate ‐ 110v Duplex Outlet
- ﴾2﴿ 12v Wire Circuit
- 110V Electrical
- Additional 4" x 11" LED Light
- RVS Backup Camera ‐ 7" Mirror Monitor
- Terra Transit Pullout Battery Tray
- Pull 110v 12 Ga. SL Cable, Coiled Up to Front Bulkhead Area
- ﴾2﴿ Pull 110v 14/2 Ga. SL Wire Lead
- Replace Standard Dome Lights with 4" x 11" LED Lights
- 110v Exterior GFI Outlet
- ﴾2﴿ Interior Switch for Dome Lights
- QG7000 Generator
- Thor TH002 MFG Inverter Switch
- Full Battery Disconnect Switch ﴾Mounted in Drivers Stepwell﴿
- 90A All‐in‐one 240V 18 pos Converter w/ Resettable Breakers
- 25' 50 Amp Shore Power Cord w/ Inlet plug wired to transfer switch
Exam Specific Electrical
- Breaker Box, Breakers and Transfer Switch
- 50 Amp Shore Power with Cord, 28' Length
- Inlet on Side of Vehicle for Plug In
- 110v Package Includes 5 Outlets ‐ 10 Plugs

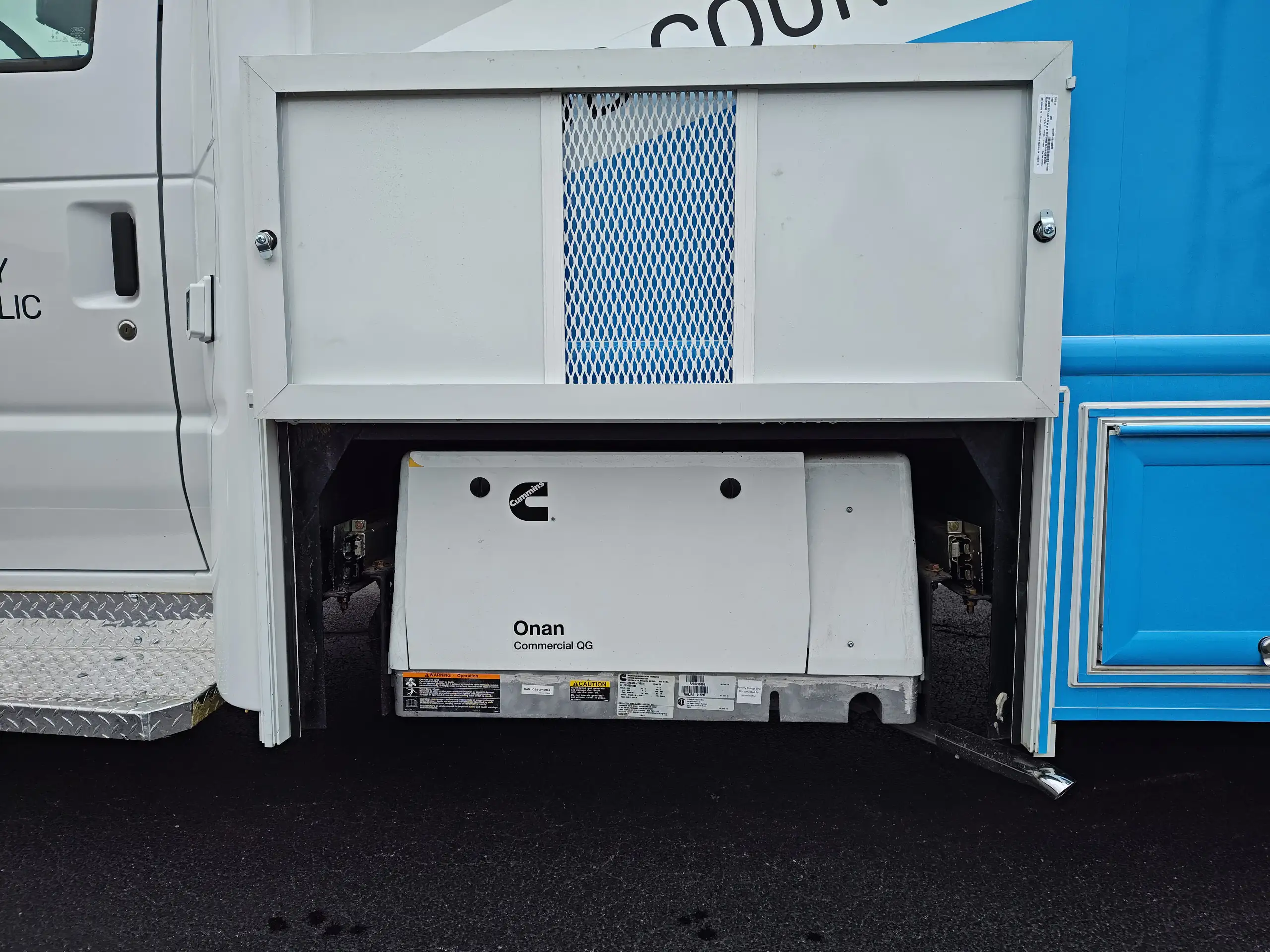

- Cummins Onan 7.0 Generator GL7000 w/Remote Starter Switch
Exterior
- Generator Prep Kit
- All Storage Areas Locked and Keyed the Same
- Generator Enclosure Kit
- Running Board ‐ Wide Diamond Plate ﴾Driver's Side﴿
Interior
- White Fiberglass Wall with Door
- Smooth White Interior Walls ‐ Gray Vinyl Corner Boards Shipped Loose

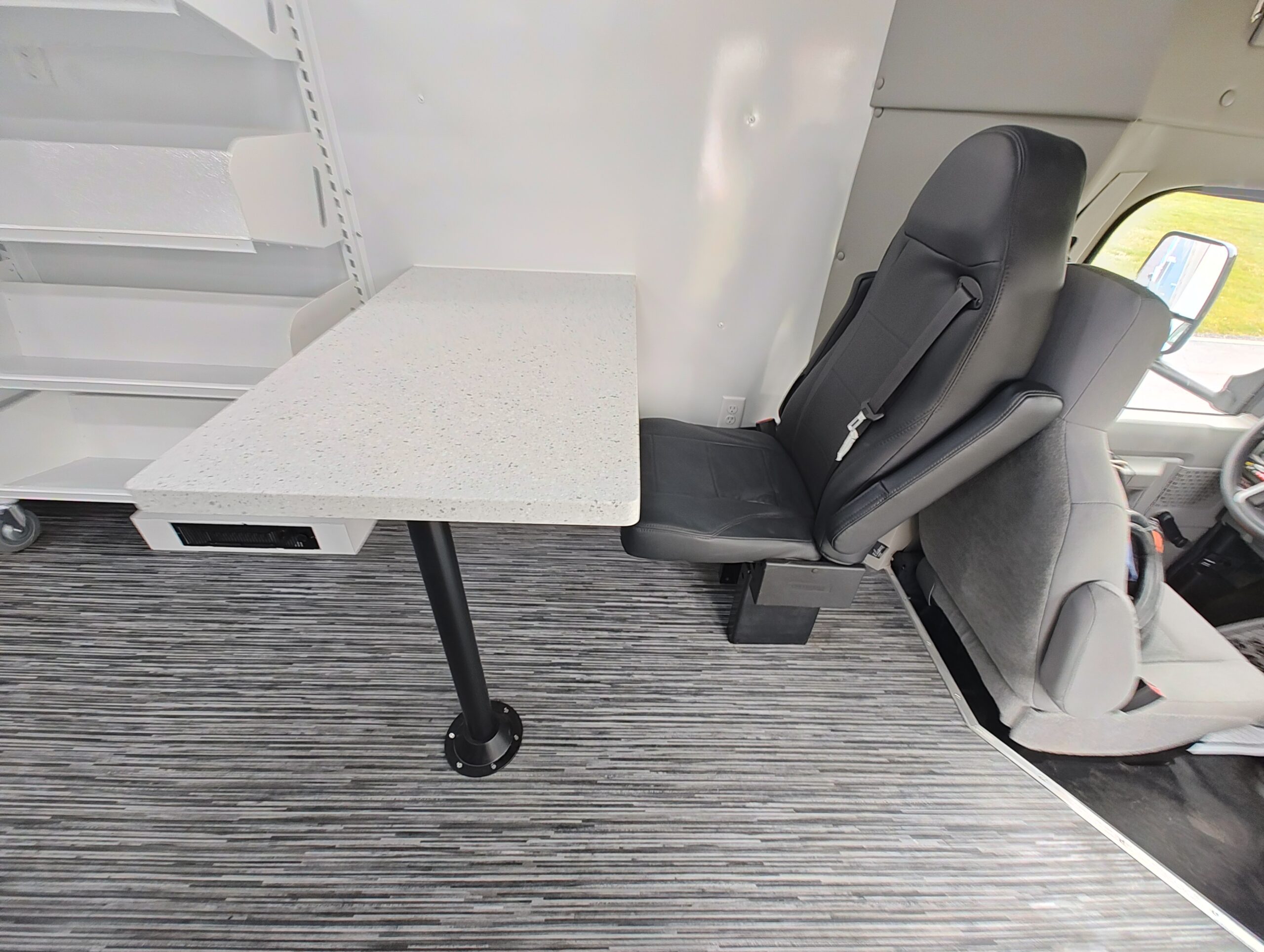

- Flip Seat ‐ Featherweight, Single Mid‐Back 17" w/ Lap Belts
- Additional Steel Backer ‐ Behind Driver Seat
- Altro Faux Wood Flooring Upgrade ﴾Iron Bamboo﴿
- Exterior Skirt Storage ﴾36"w x 16"h x 21"d﴿
- Stanchion Pole w/Assist R.H. Entry
- Yellow Step Treads
- Additional Steel Strapping/Backer in Sidewall, Curbside for Cabinets
- Storage Compartment ‐ Over Driver
Paratransit Equipment
- Wheelchair Lift Belt

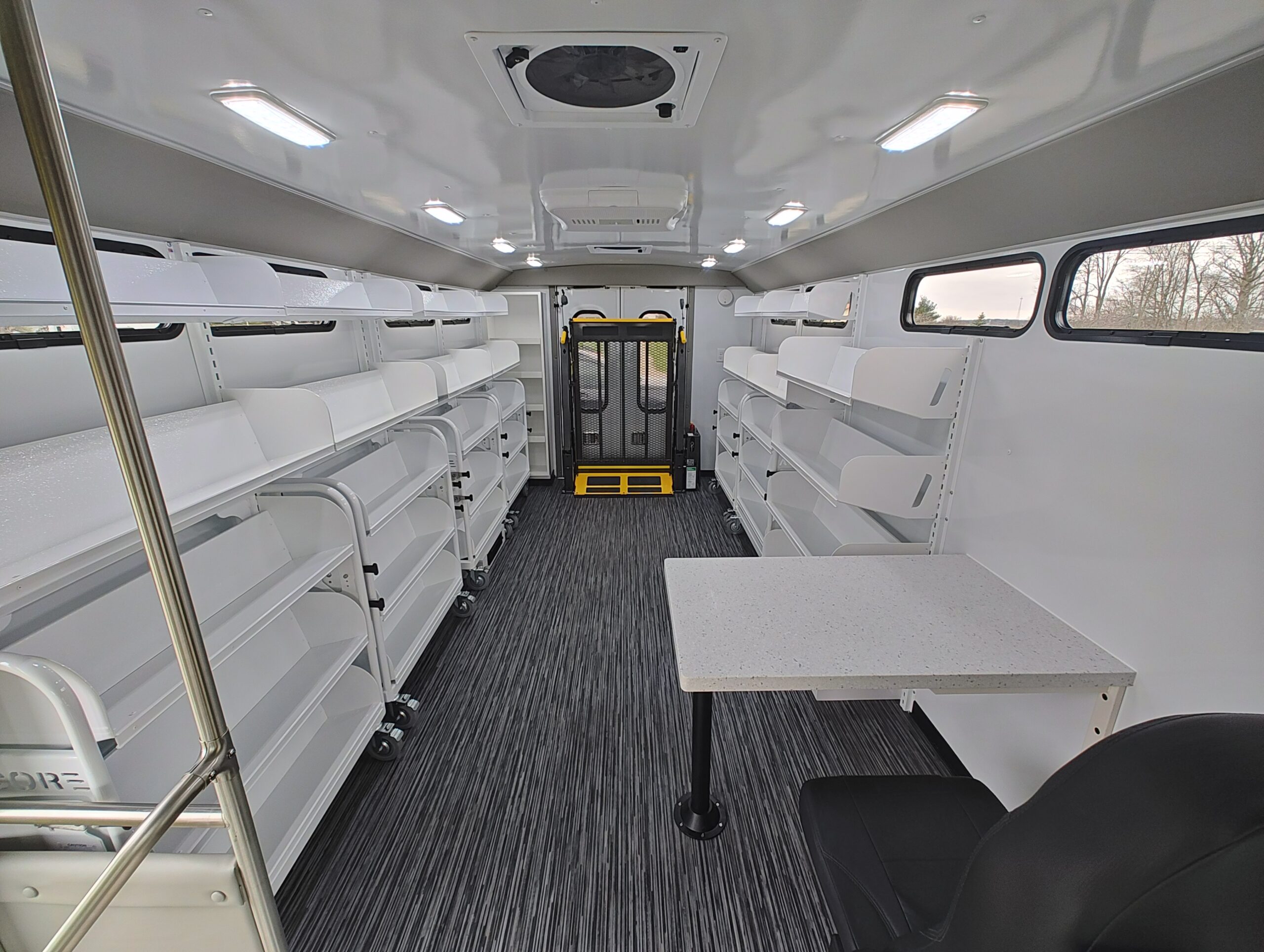

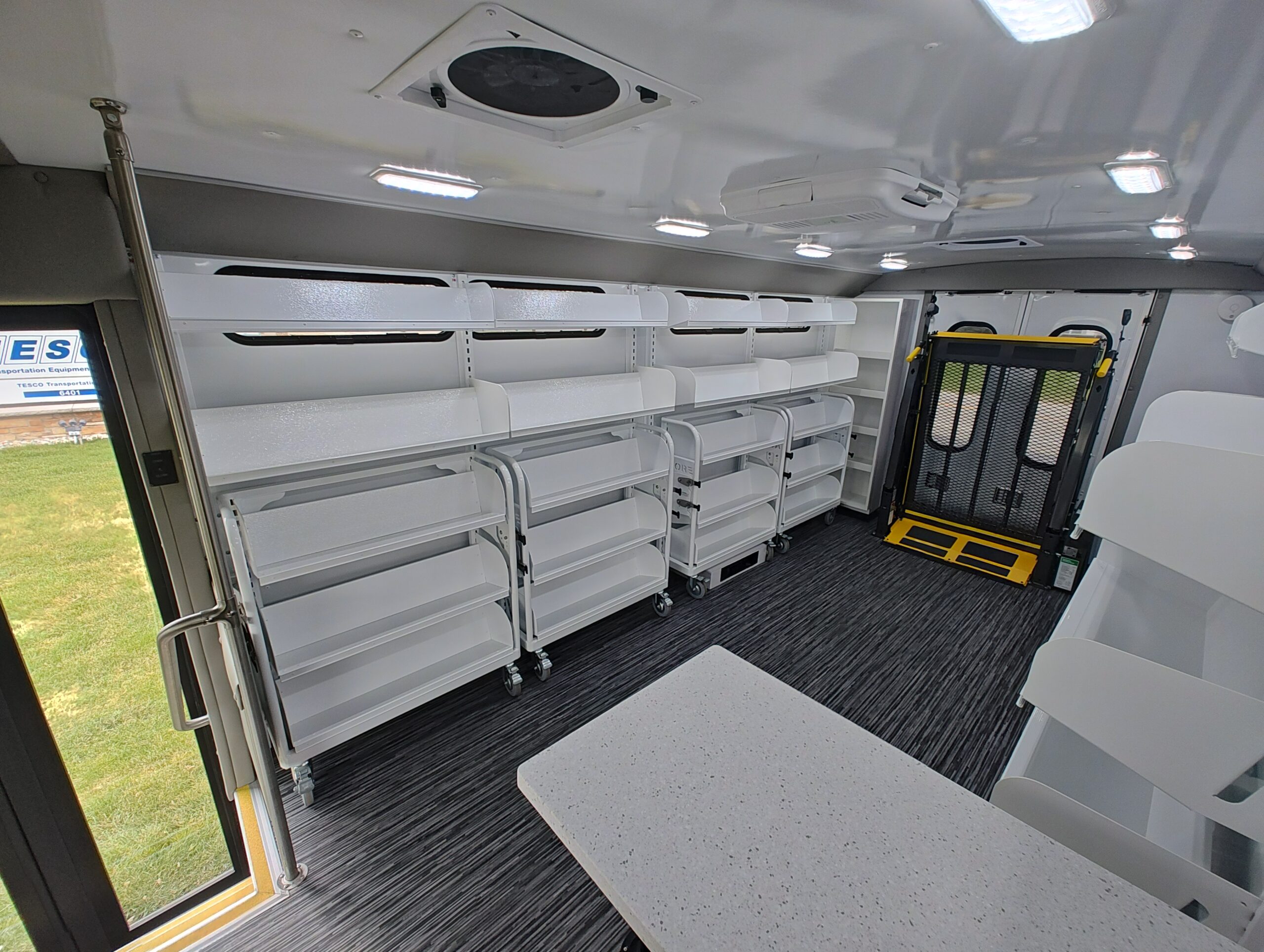

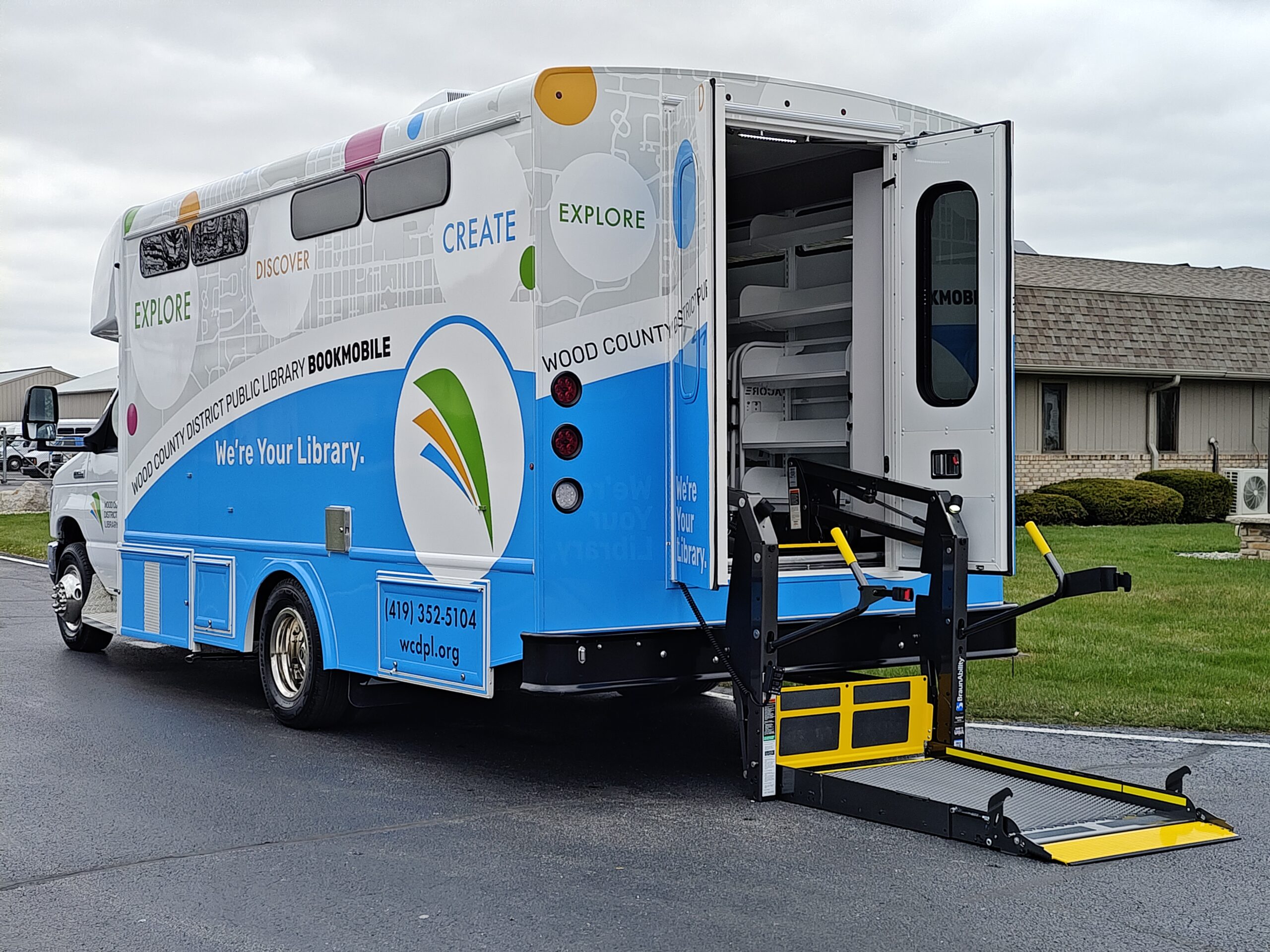

- Double W/C Lift Door ‐ Deluxe off rear

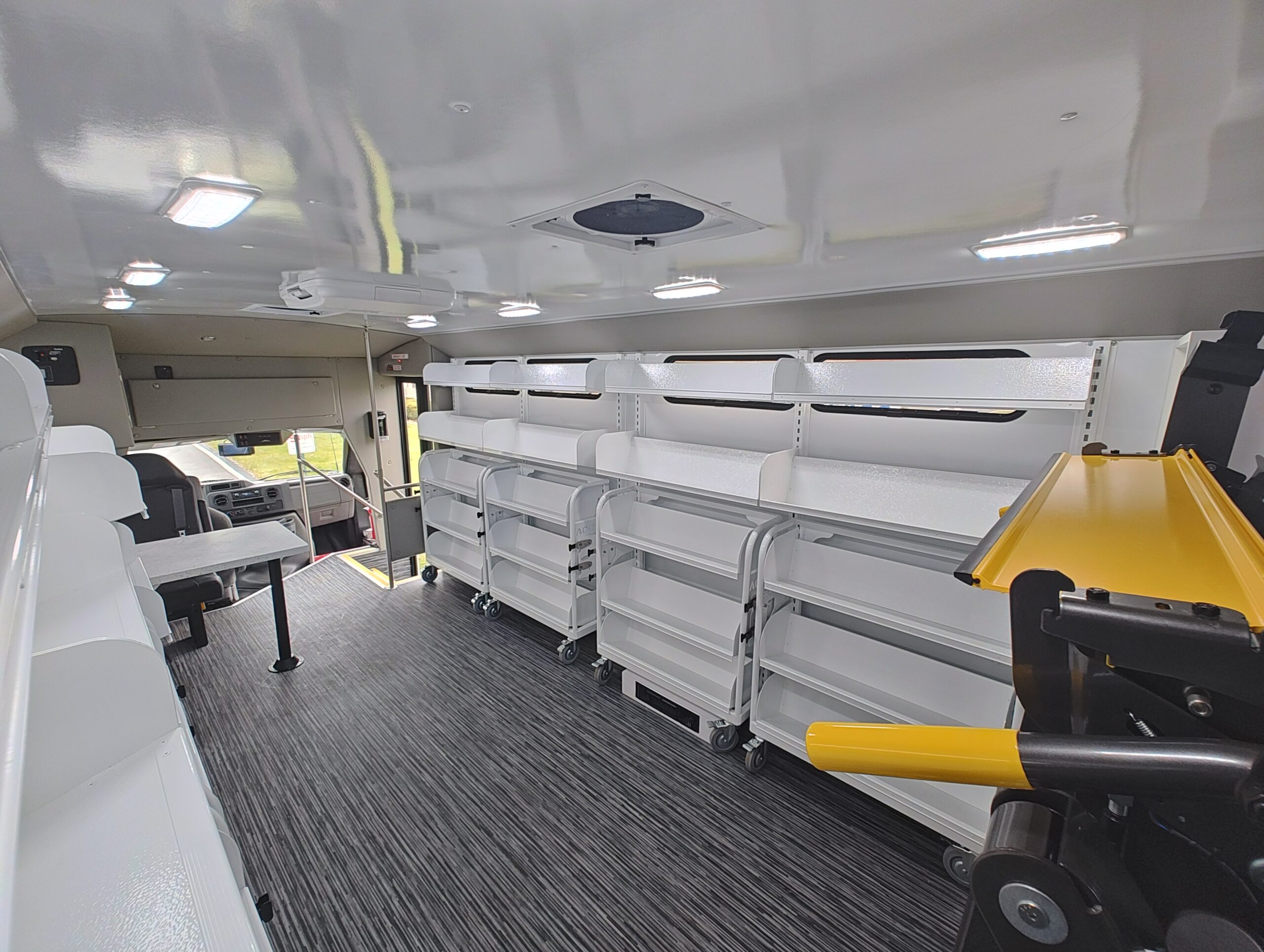

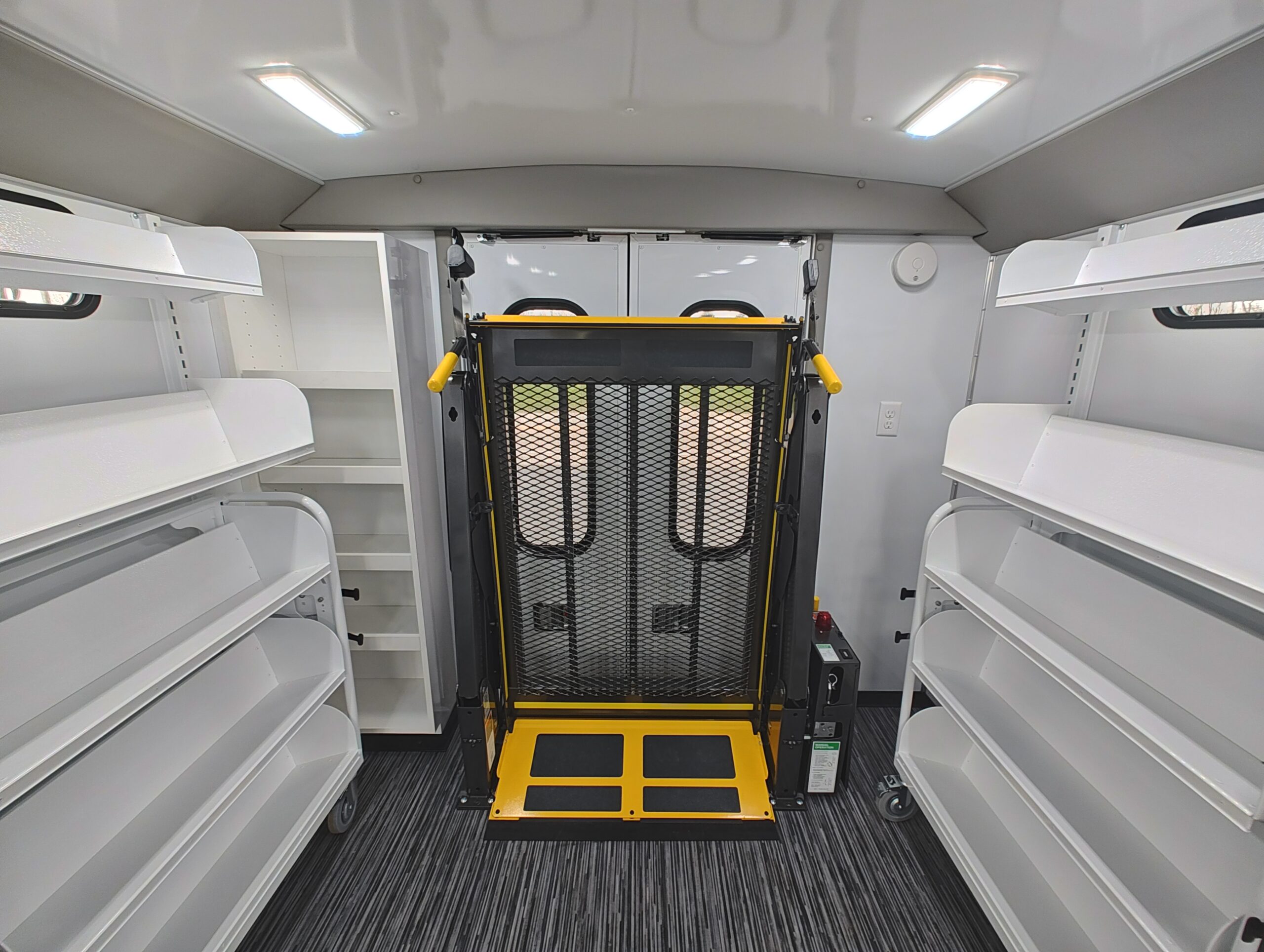

- Braun NCL1000LB3454 1000# Lift
Safety
- Back Up Alarm
- LED Brake Light ‐ Center High Mount
- Locking Fuel Door ‐ Deluxe
Customers have to say:
FAQ
Do we need a Commercial Driver License (CDL) to drive a TESCO Specialty Vehicle?
Our Vehicles do not require a special drivers license. They are designed to be under CDL requirements of a Gross Vehicle Weight Rating of 26,000lbs or less.
Are your vehicles commercial grade?
Our vehicles are NEVER built from retrofitted RV’s which are not designed to hold up to the operational use of medical clinics. Each TESCO Specialty vehicle is custom built for its commercial application, with steel body construction directly to the chassis. We welcome the opportunity to show you the difference and review with you our manufacturing process.
Where do you ship your vehicles?
We ship our vehicles to every state in the US and have the capabilities to ship internationally.
Do you offer Warranty Coverage?
Yes. Each vehicle comes with a 3 to 5-year warranty for the chassis and body. Please contact us to learn more about our various warranty coverages.
What do I need to consider when starting a mobile unit program?
There are several key strategic areas to consider. At TESCO we offer a free consultation with our Director of Specialty. Our director has a clinical background and years of healthcare service line development, including real life experience with deploying a mobile unit program. We will be able to offer guidance on market research, setting a budget, design, and other strategic operational considerations. Please feel free to schedule appointment here.
How do we power our mobile unit?
Every unit comes with a commercial grade generator and shore power capabilities. Shore power can provide the unit access to power at your parking locations to run your mobile unit electrical systems without use of generator. Please schedule a call with us to learn more about our custom electrical solutions.
What training and support is offered?
We offer onsite training at delivery of your unit, and ongoing virtual training support. We also offer preventative maintenance tools for your unit.
Do you offer Financing?
We have unique leasing programs. Please schedule a meeting with us to learn more about our financing and leasing options.
Can we trade in our used mobile unit?
We offer a robust used unit program. Please schedule a call with us to discuss your needs and current used mobile unit.
