25ft One Room Mobile Medical Clinic Wheelchair Lift

Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
One Exam Room with Blood Draw and Wheelchair Lift, Group D
Open Gallery View →

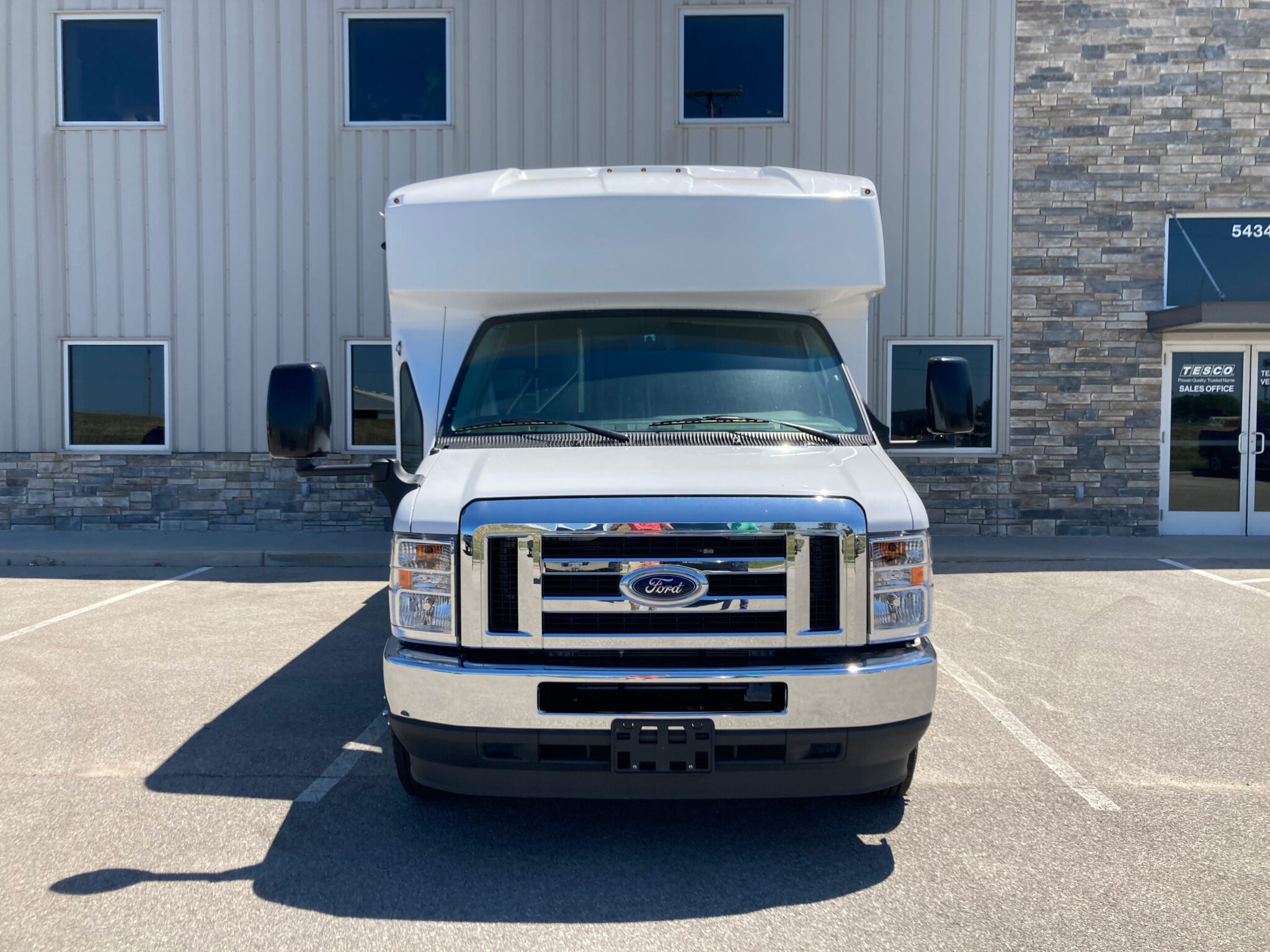

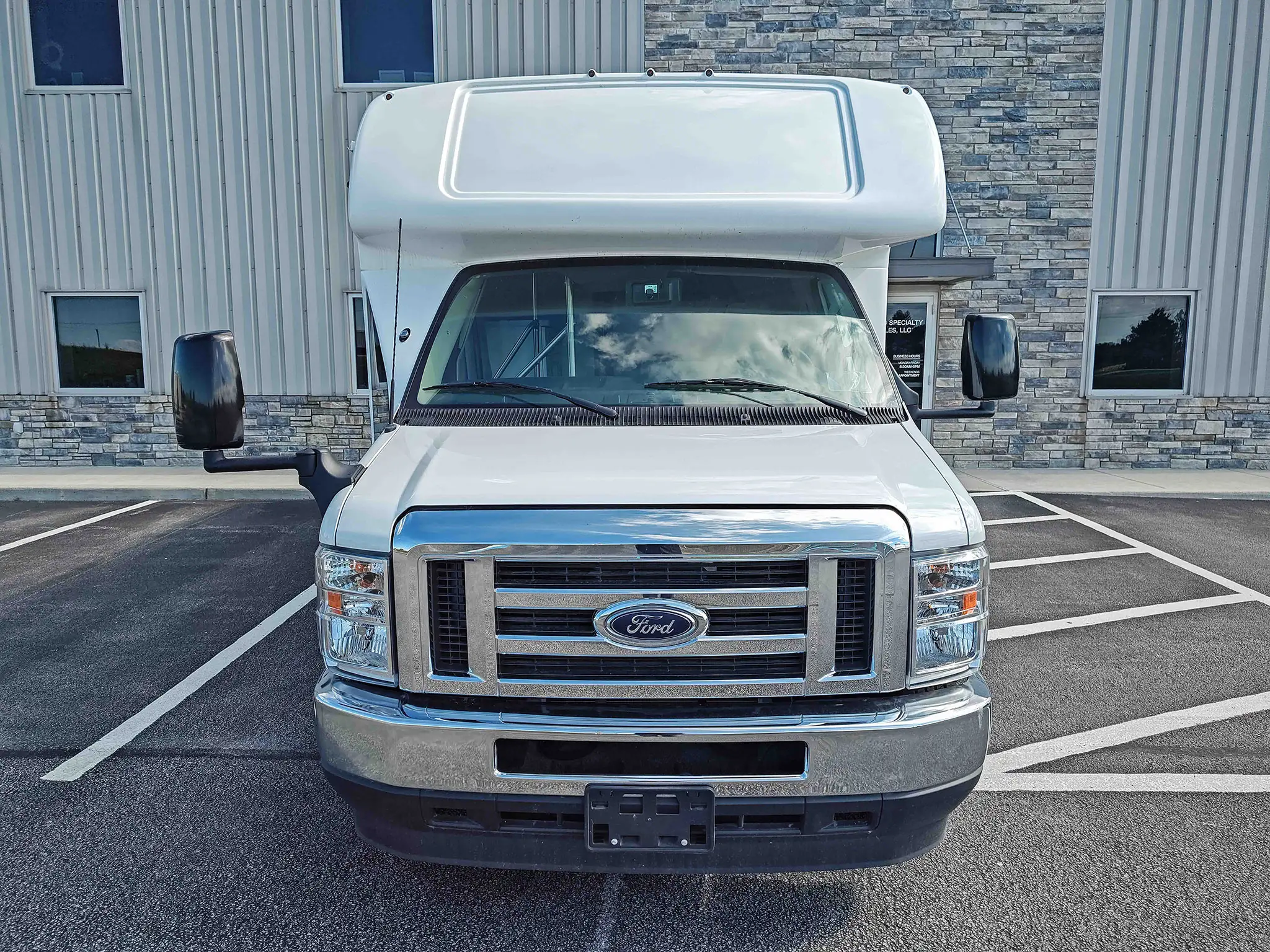

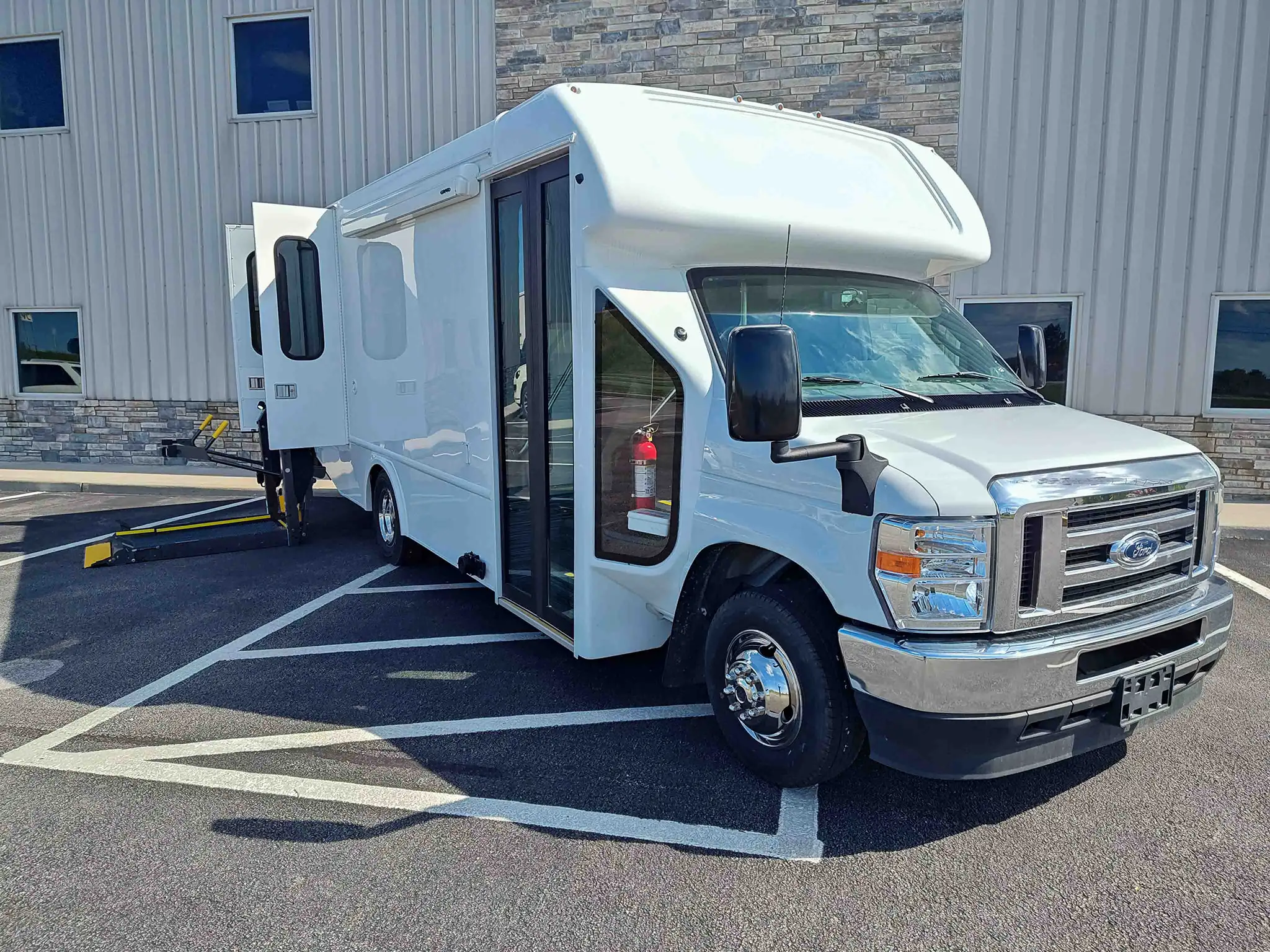

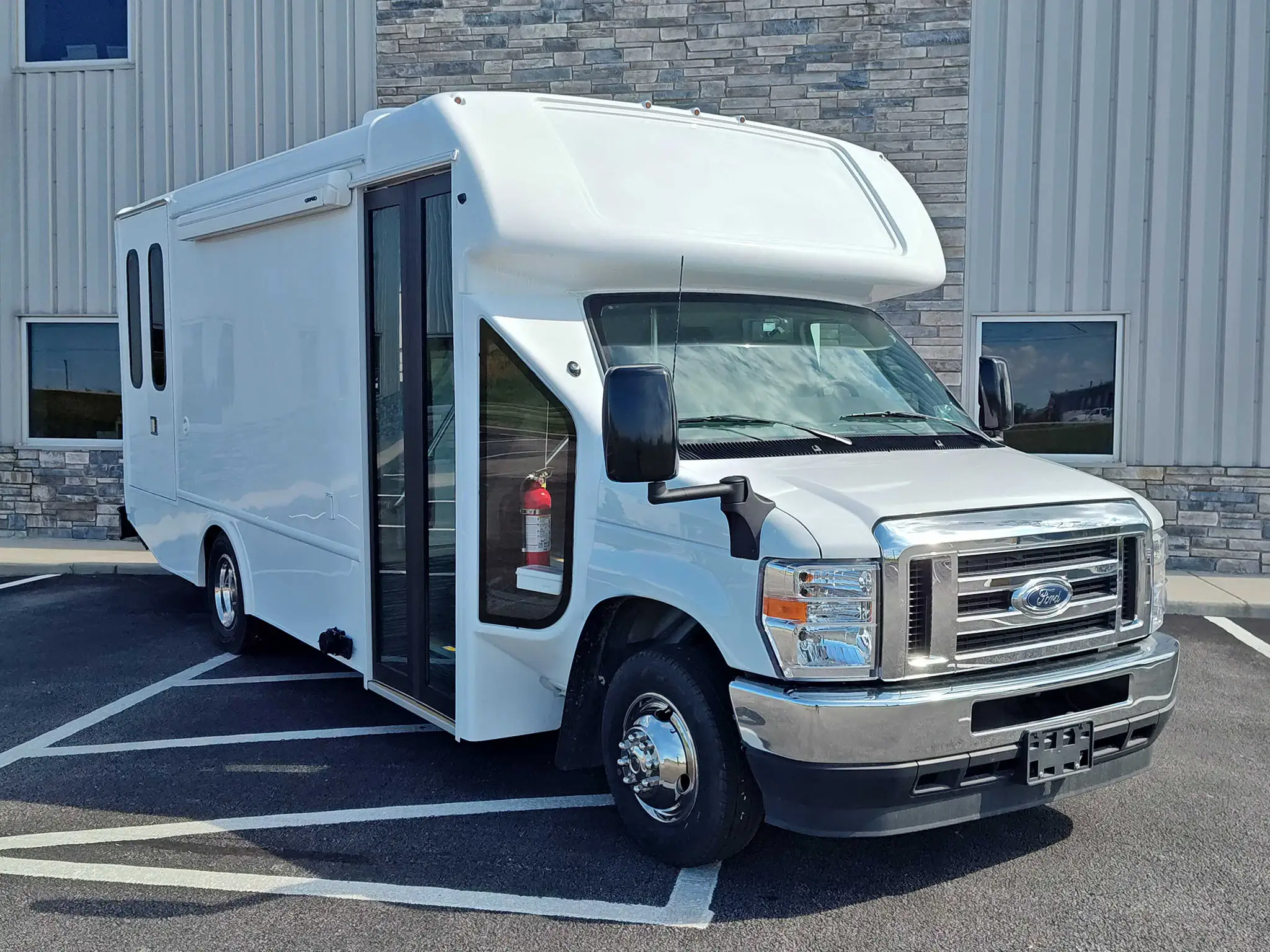

The new Ford E-450 is an economical mid-size unit with wheelchair access and two private rooms, maximizing operational throughput potential. It’s easy to drive and comes with standard features like an exam table, medical-grade fridge, bathroom, and custom cabinetry. The model includes a full roll cage for safety and has a sharp-looking straight wall exterior design. The Ford E-450 is a versatile and reliable option, ideal for programs that require both wheelchair access and flexible service options.

360° View
See 360 View

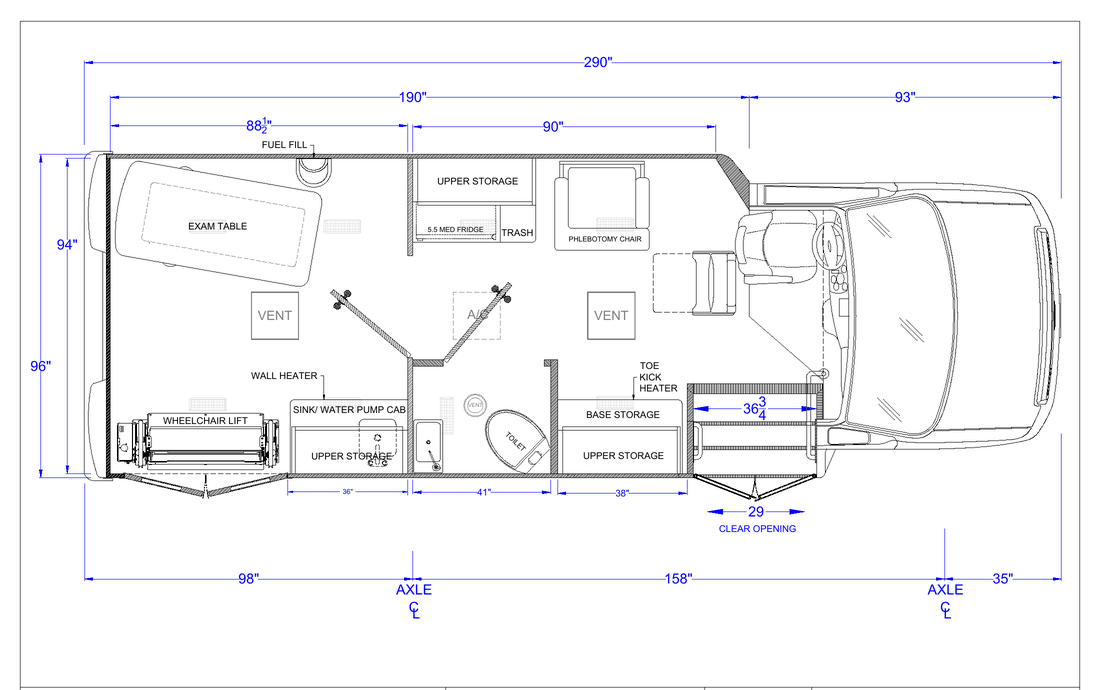

Floor Plan
Check Floor Plan

360° Tour

7.3L Gas

Engine

Automatic

Transmission

Make

Vehicle Description

Overall

  • Ford E-450 with 7.3L Gasoline Engine
  • Automatic Transmission
  • 14,500 lbs Gross Vehicle Weight Rating
  • Cruise Control
  • Extended View Exterior Mirrors
  • 55 Gallon Fuel Tank To Minimize Fueling
  • All Weather Tires for Multiple Terrains
  • Steel Cage Shell Designed For Heavy Duty Operations
  • Cage Primered with Rust Inhibitor to Minimize Corrosion
  • Floor and Underbody Undercoated For Sound Deadening
  • Insulated Walls For Sounds Deadening and Efficient Temperature Control

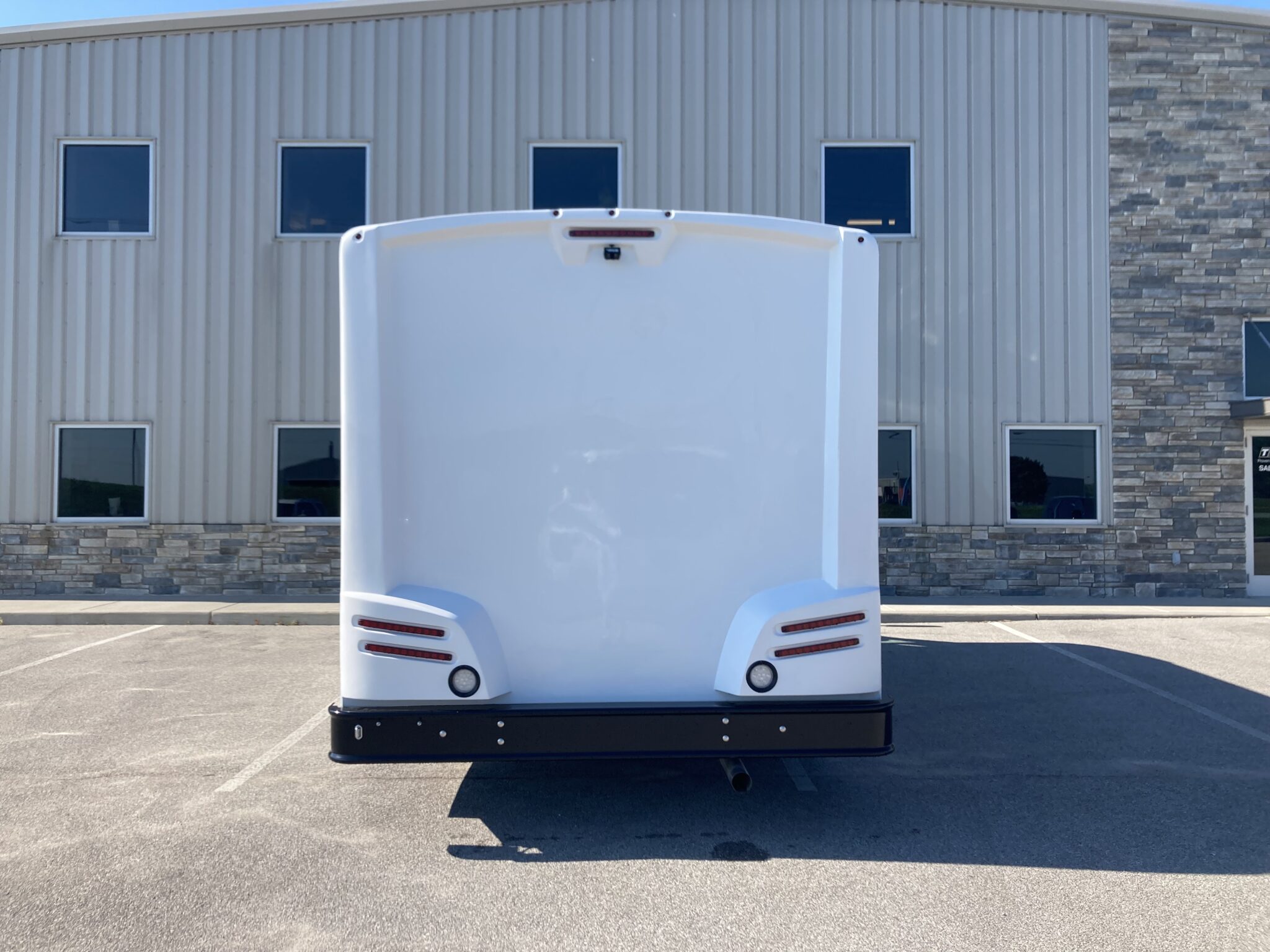

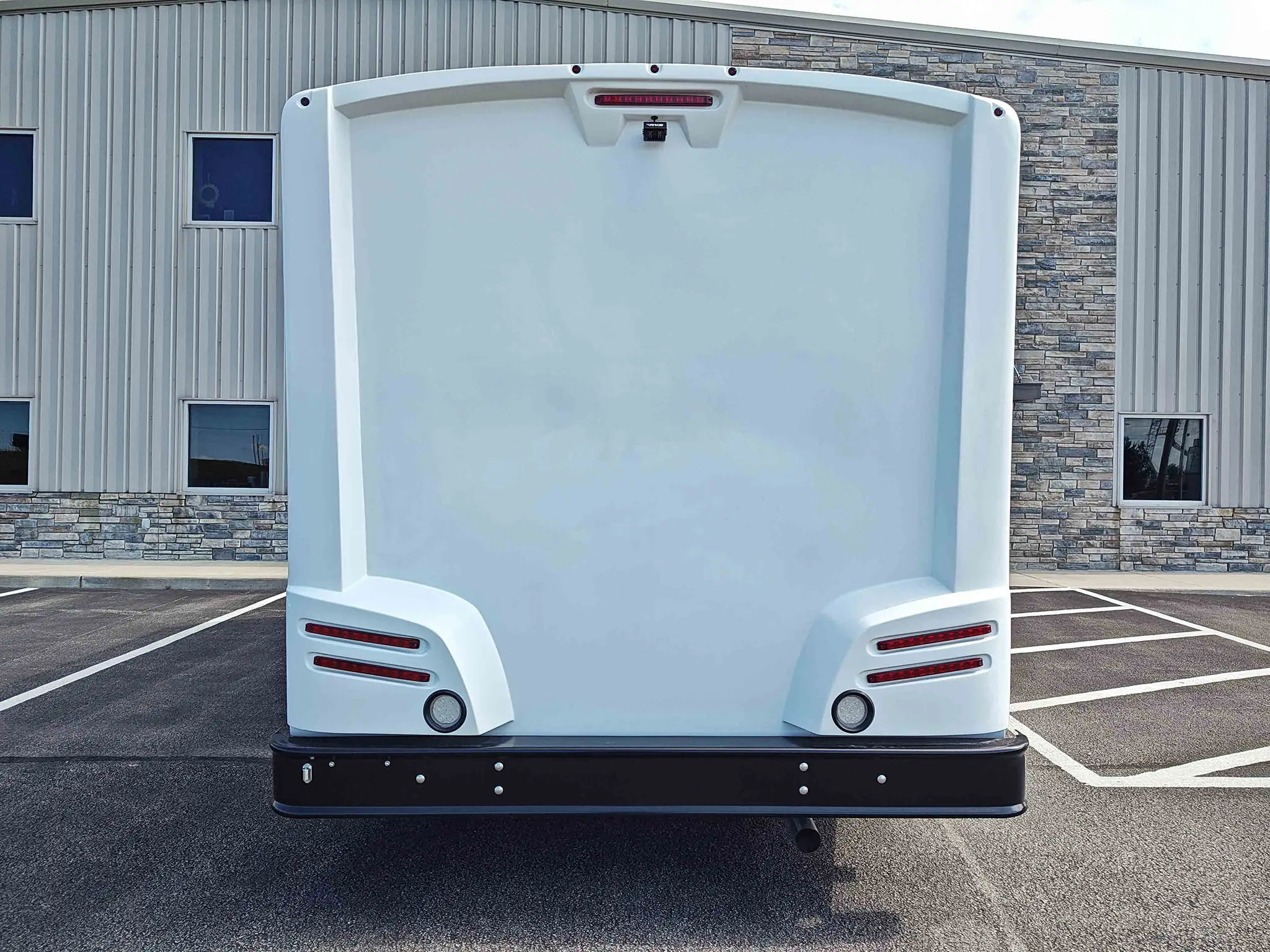

  • Heavy Duty Steel Rear Bumper with Black Powder-Coat Finish
  • Driveshaft Guards

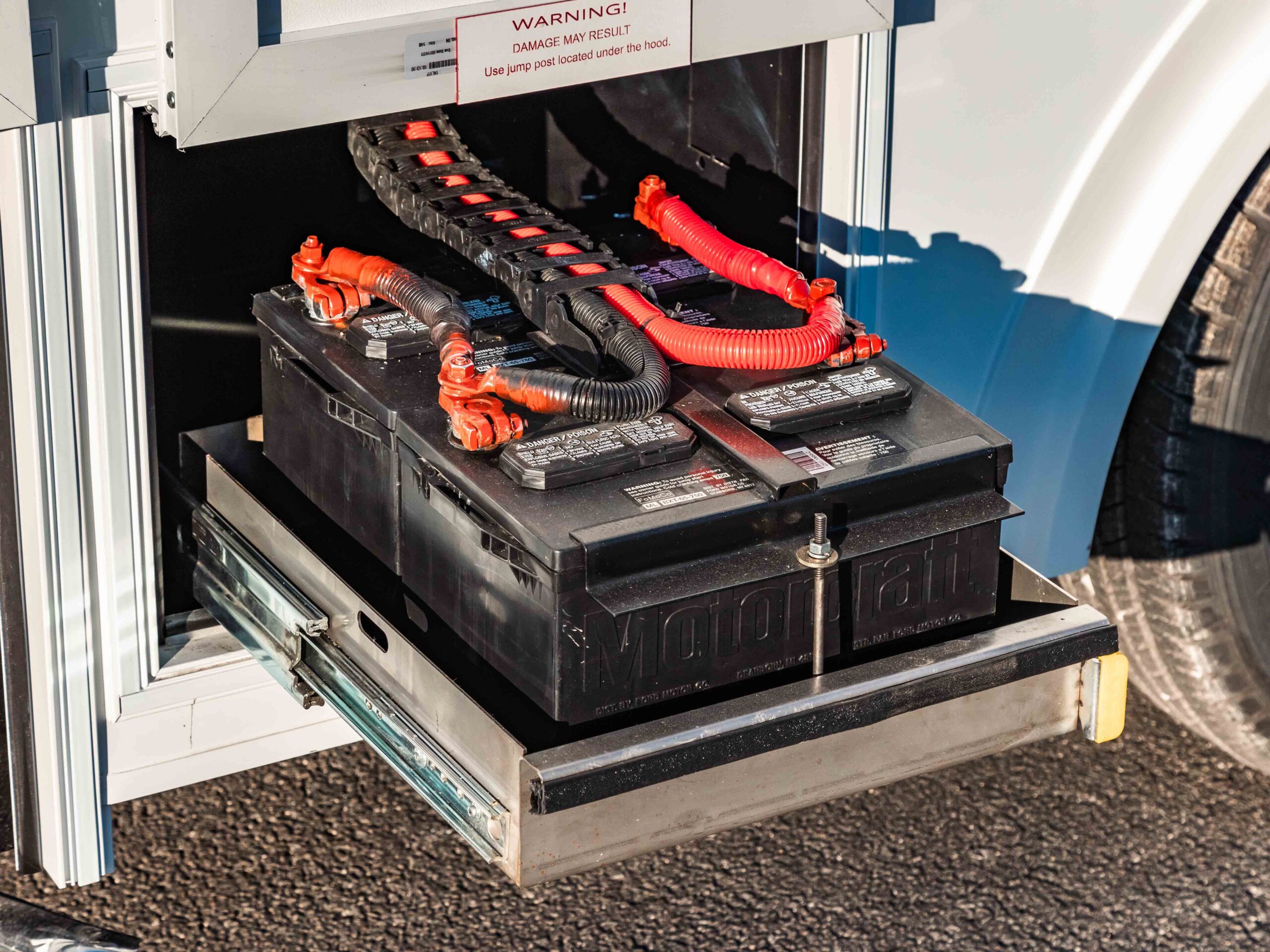

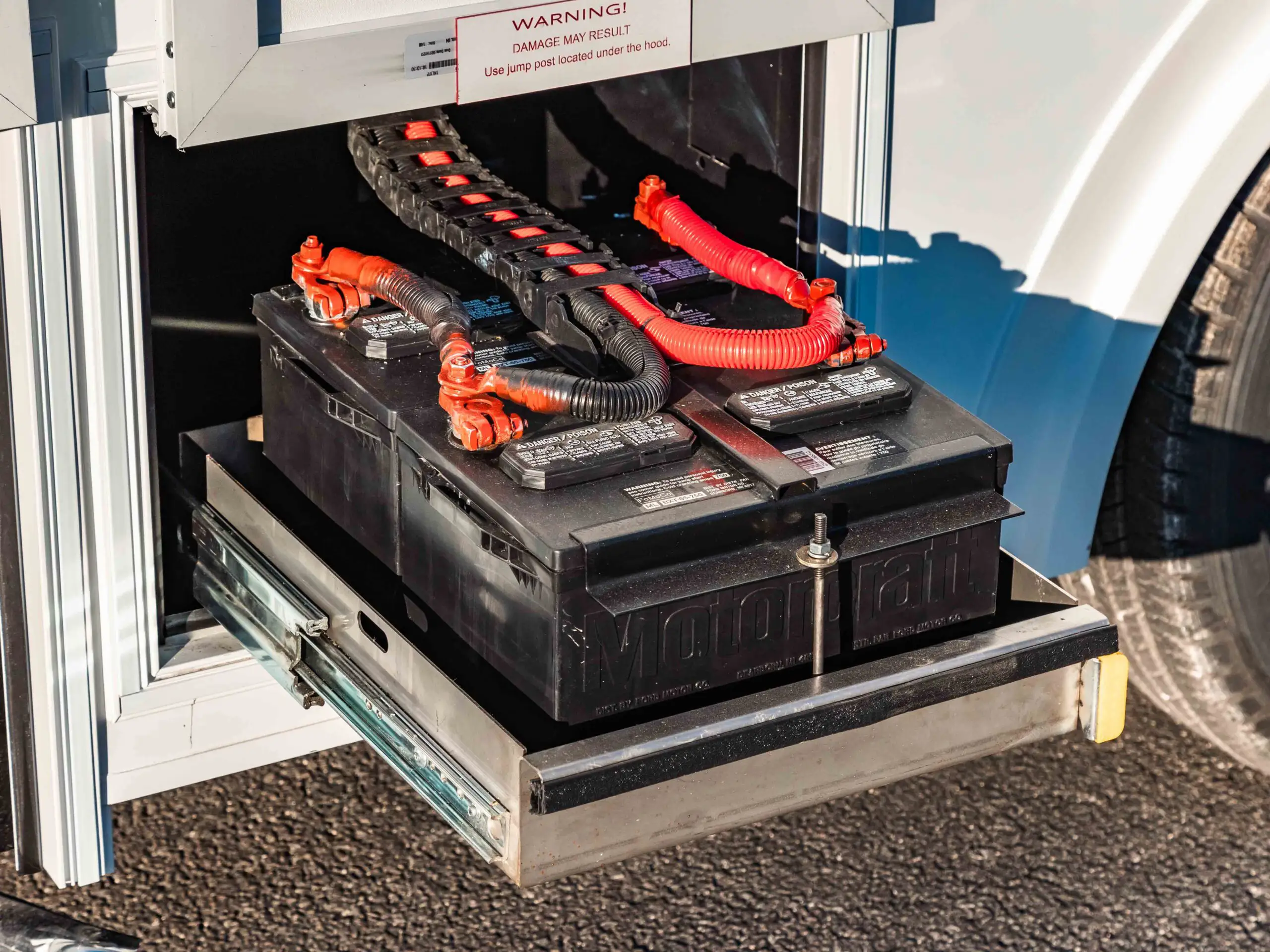

  • Dual Batteries
  • 3/4" Coosa Composite Subfloor

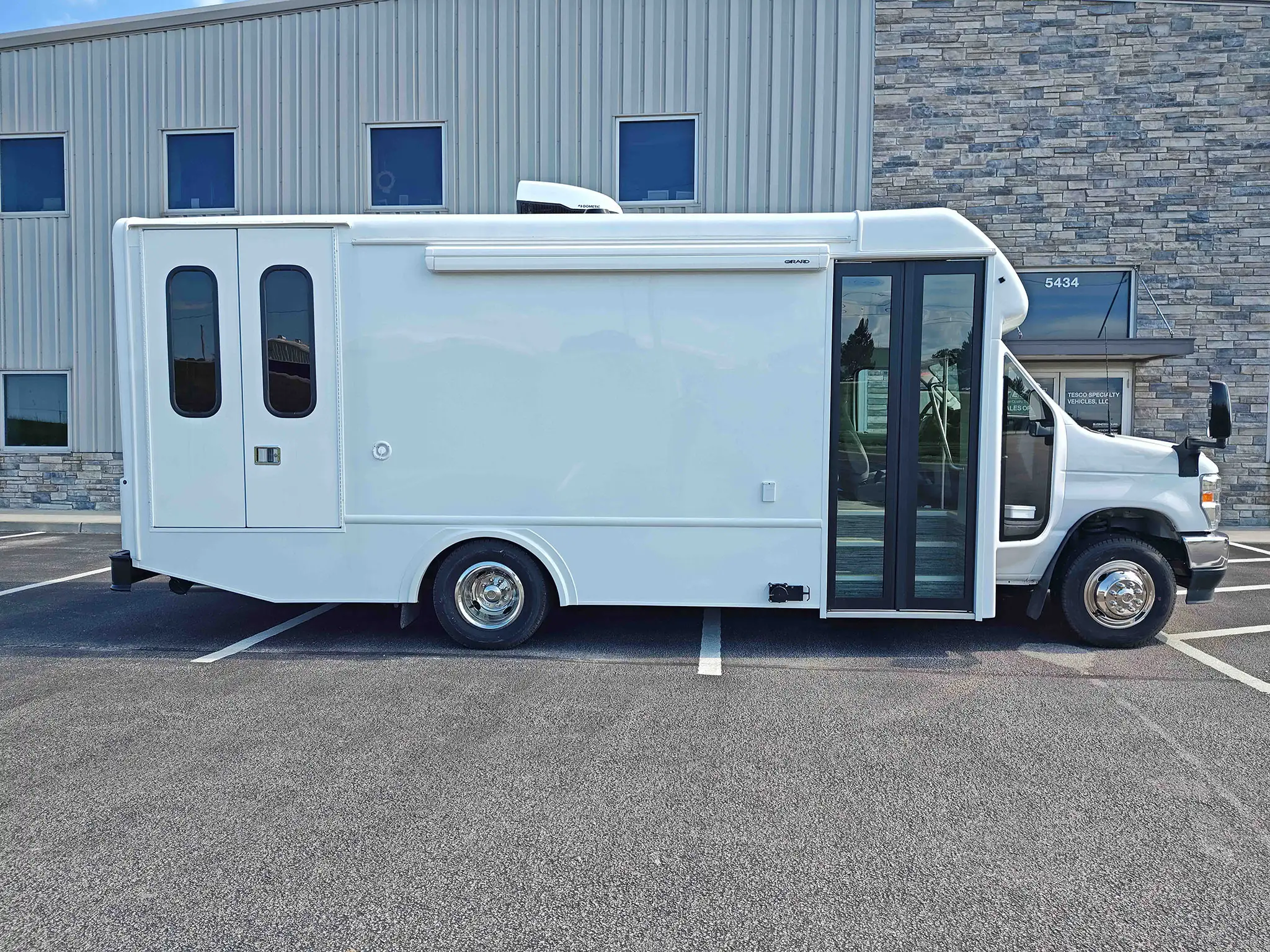

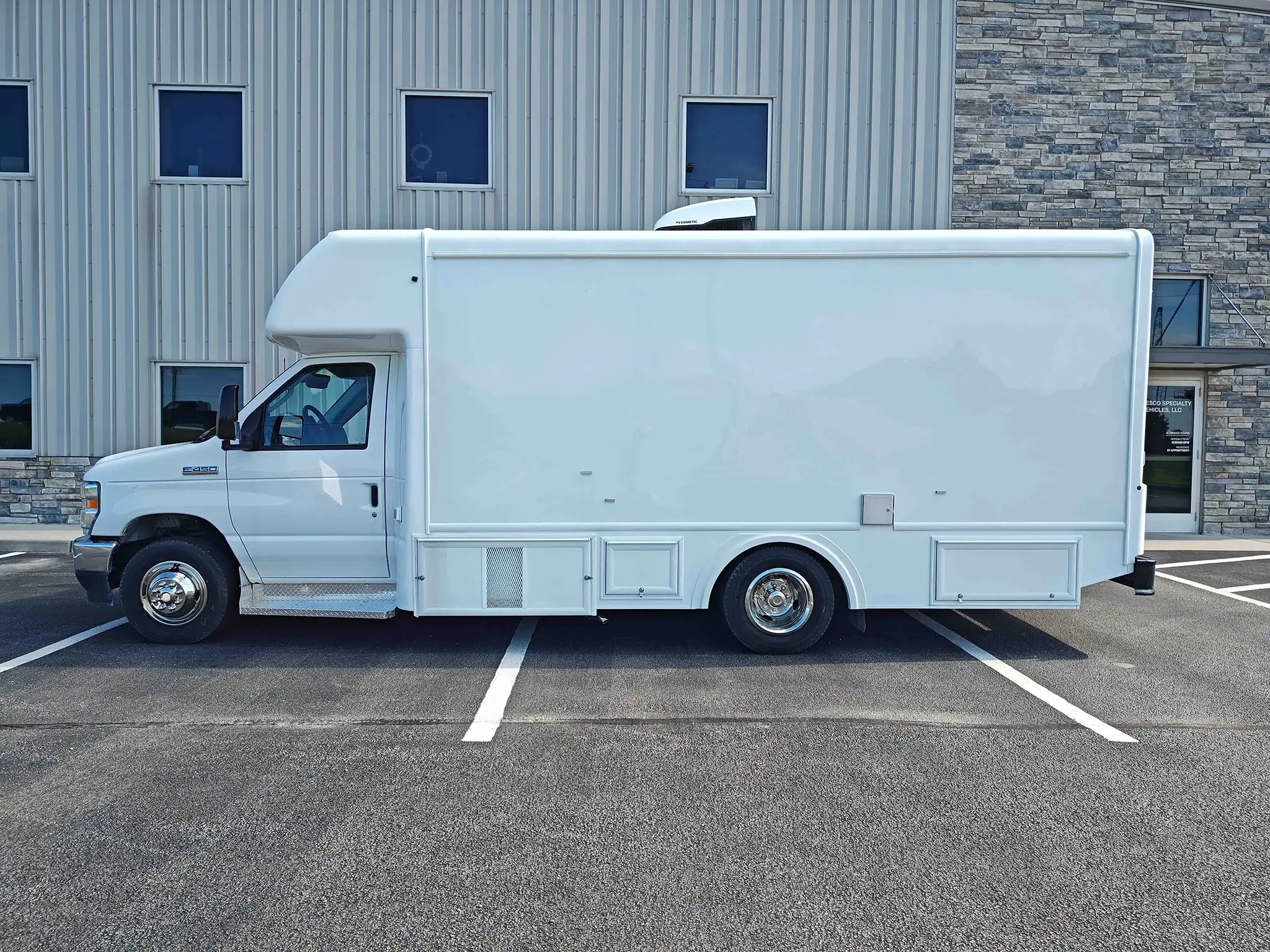

Exterior

  • Corrosion Free Fiberglass Body Exterior
  • High Visibility LED Exterior Lighting
  • Lower Body Skirt Panels For Superior Appearance
  • Locking Fuel Door
  • Exterior Door for Simplified Generator Access
  • 36" Wide Exterior Storage Area
  • Stainless Steel Wheel Covers

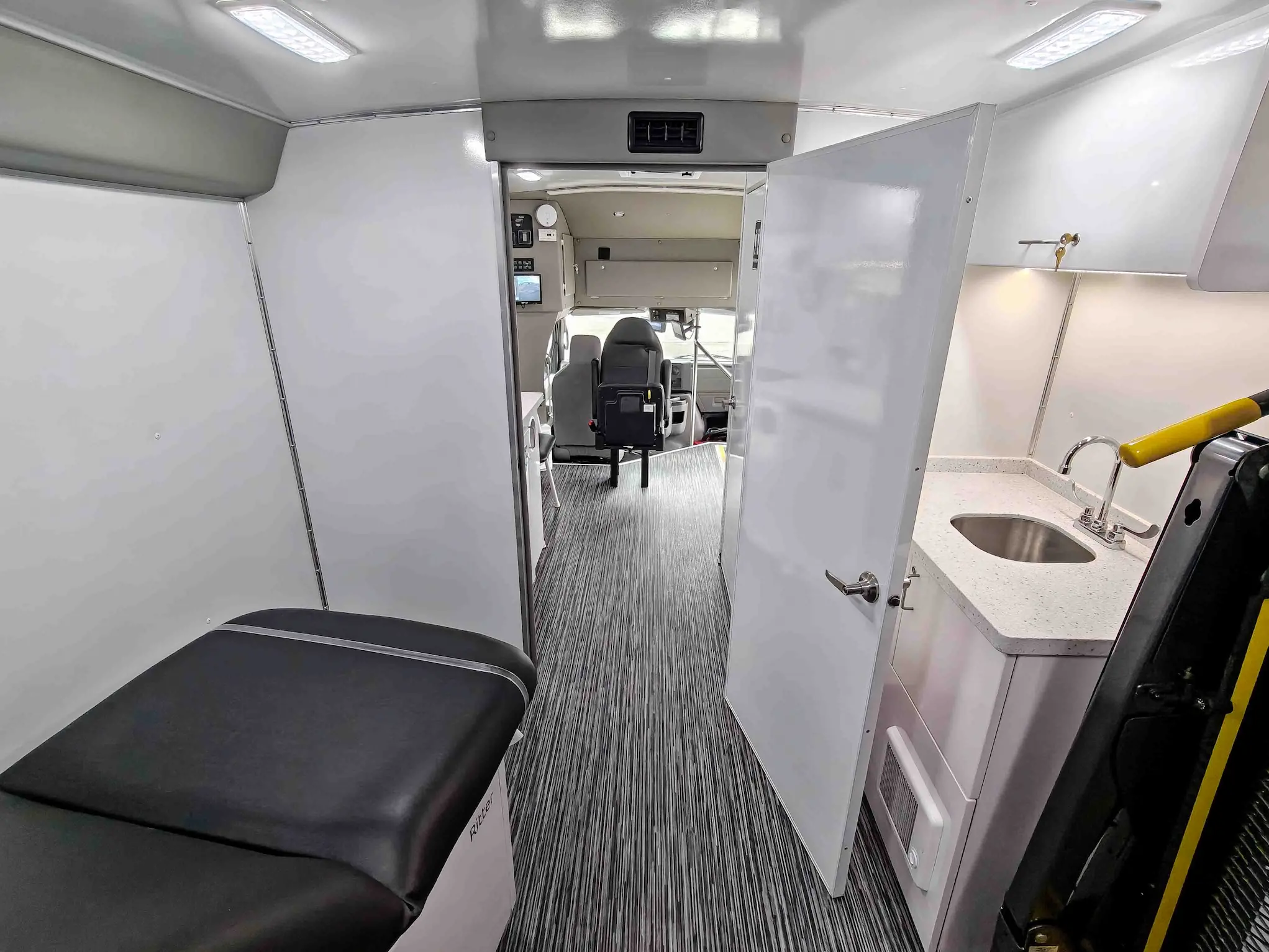

Interior

  • Commercial Grade Smooth Fiberglass White Interior Walls and Ceiling
  • 76" Interior Height
  • Completely Flat Floor
  • Commercial Flooring with Wood Appearance
  • 4" x 11" Interior Bright White LED Lighting Throughout Vehicle
  • Gray Vinyl Padded Corner Boards and Door Trim
  • Vented Header Compartment Above Driver Area For Electricals

Entrances

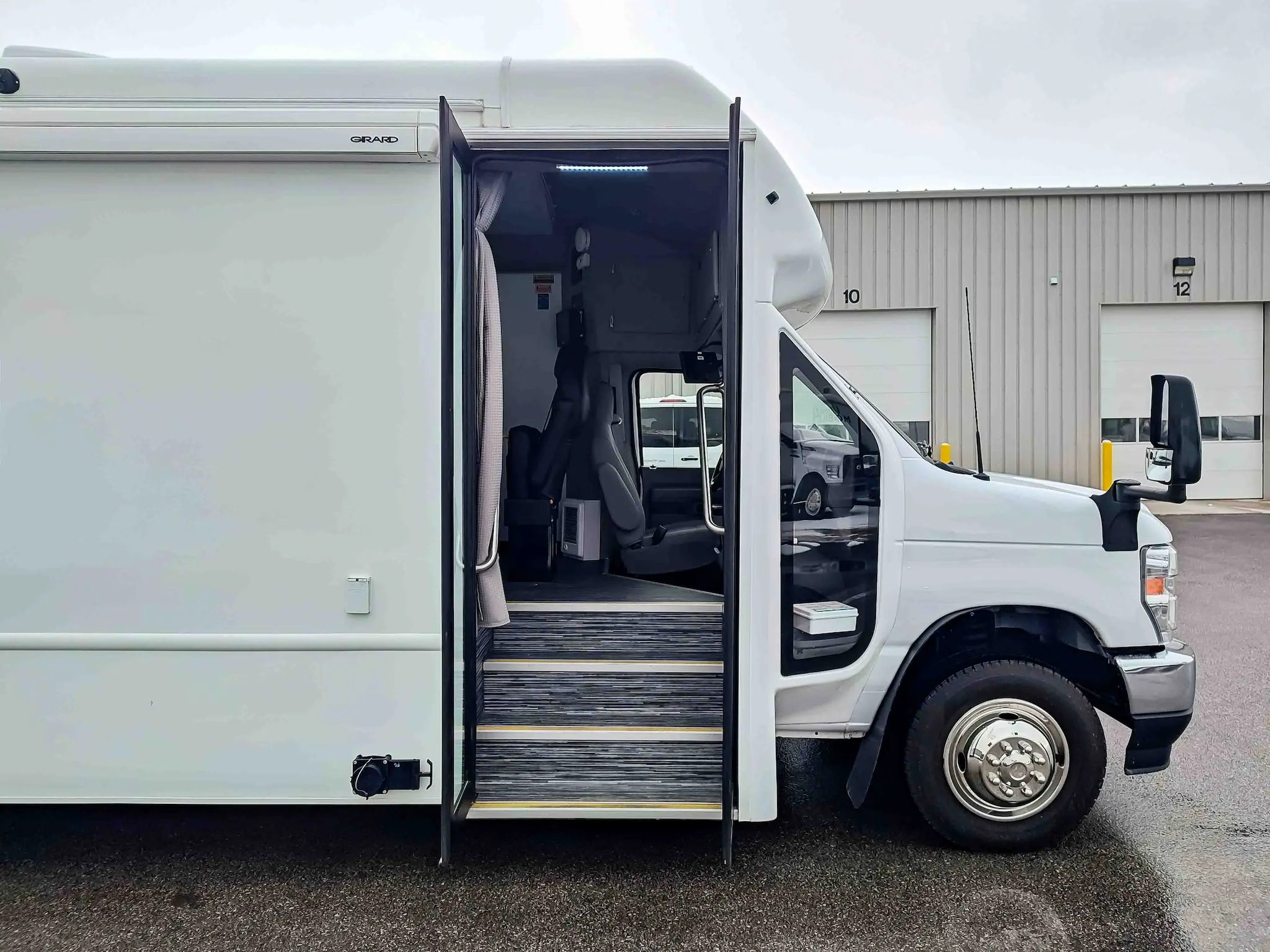

  • Bus Style Heavy Duty Electric Entrance Door For Ambulatory Entrance
  • Exterior Key Switch For Ambulatory Entrance
  • Anti Skid Entrance Steps
  • High Visibility Yellow Step Nosing at Ambulatory Entrance
  • Medical Grade Stainless Steel Assist Rails

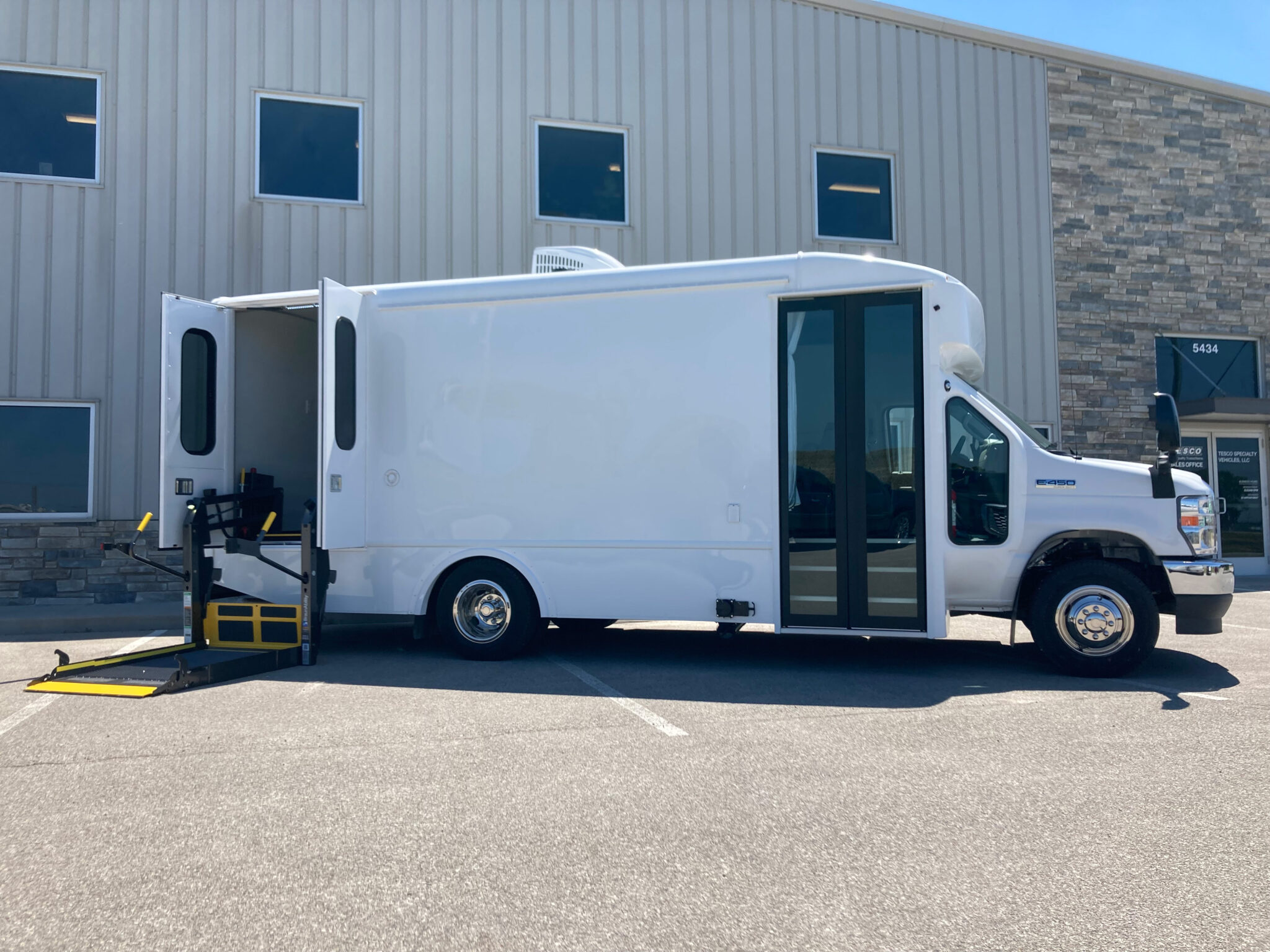

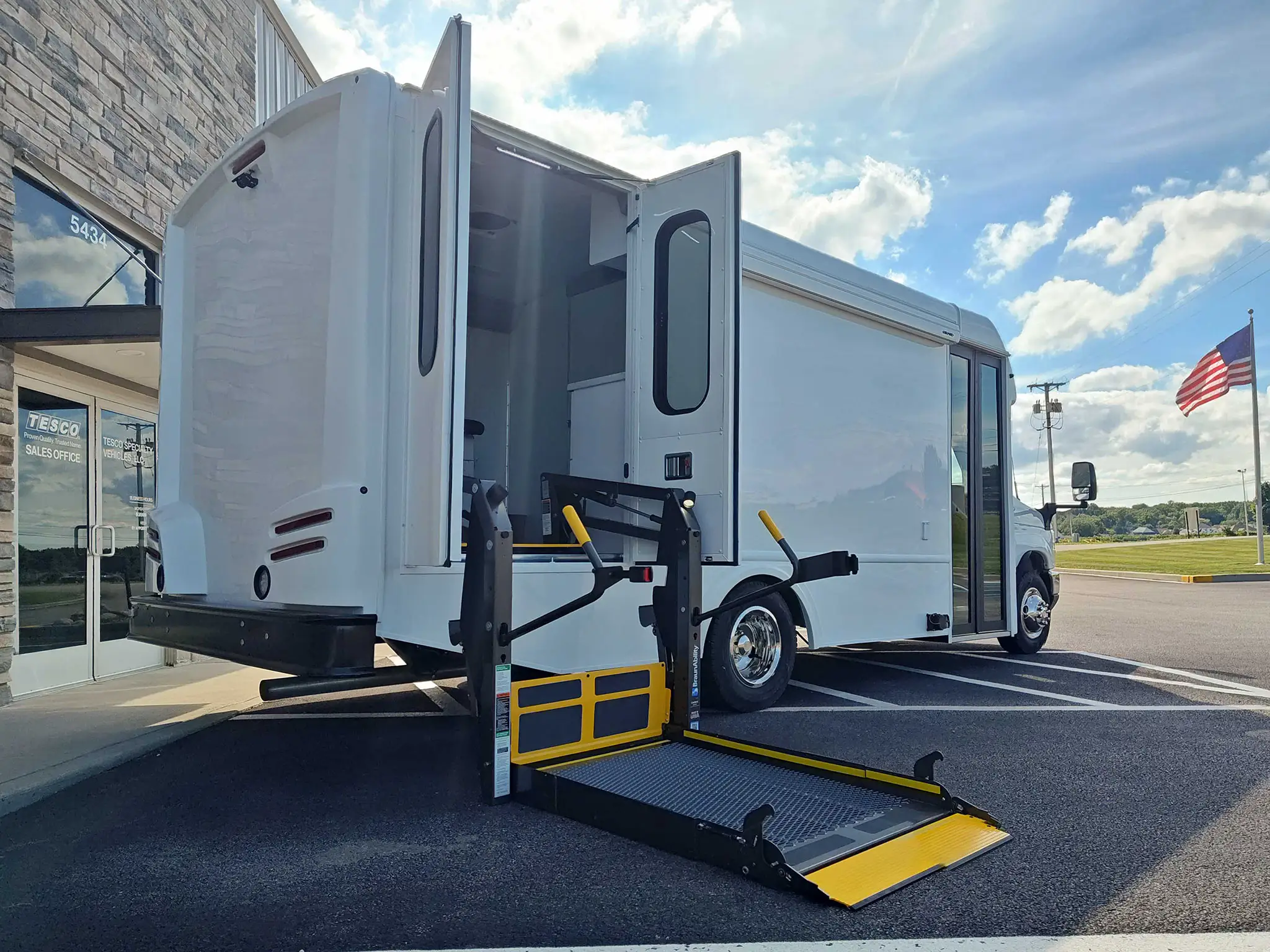

  • Wheelchair Accessible Entrance Into Exam Room

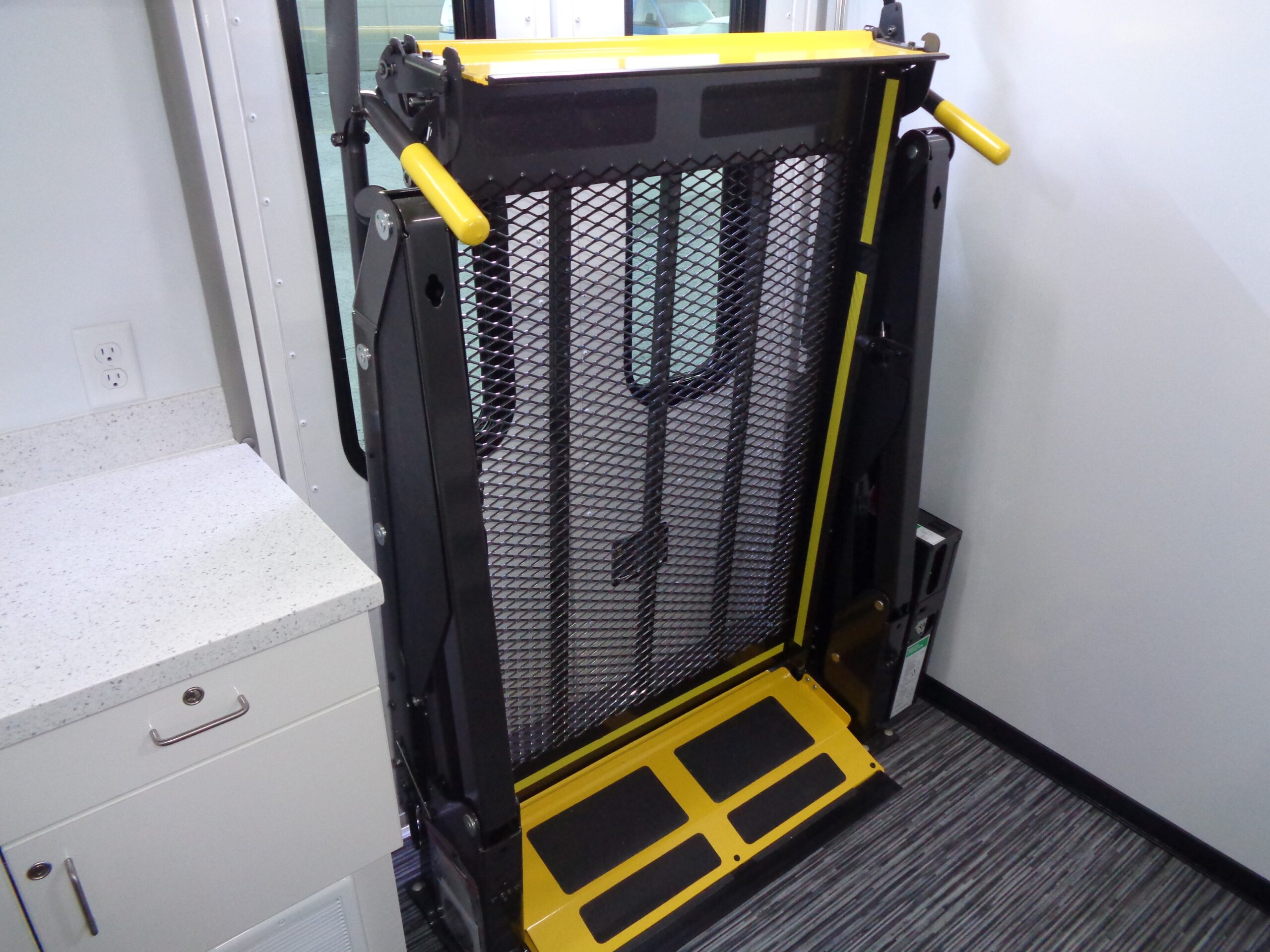

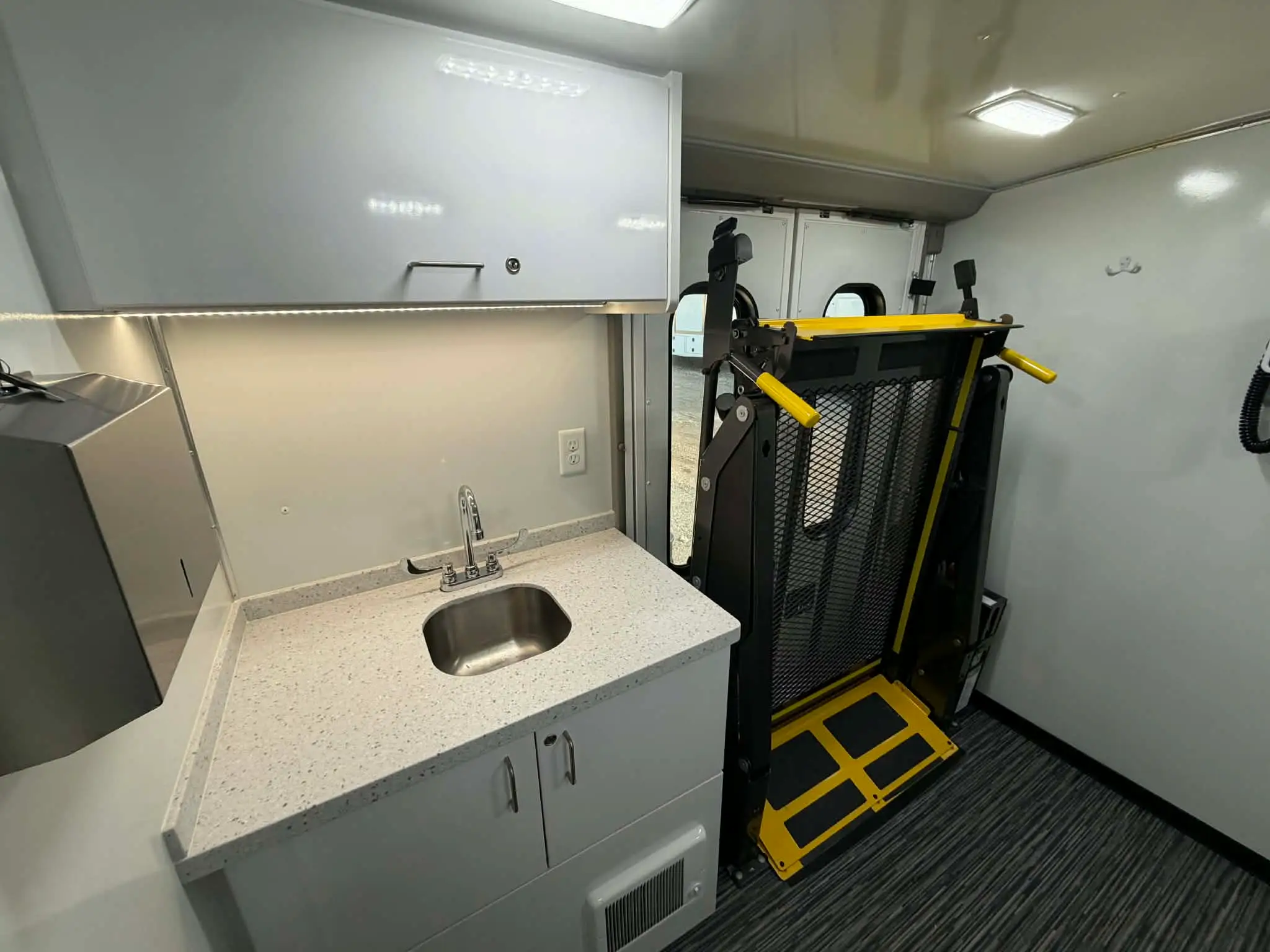

  • Wheelchair Accessible Entrance Features Commercial Grade Wheelchair Lift With Remote Pendant
  • 800 Lb Certified Wheelchair Lift with Safety Belt

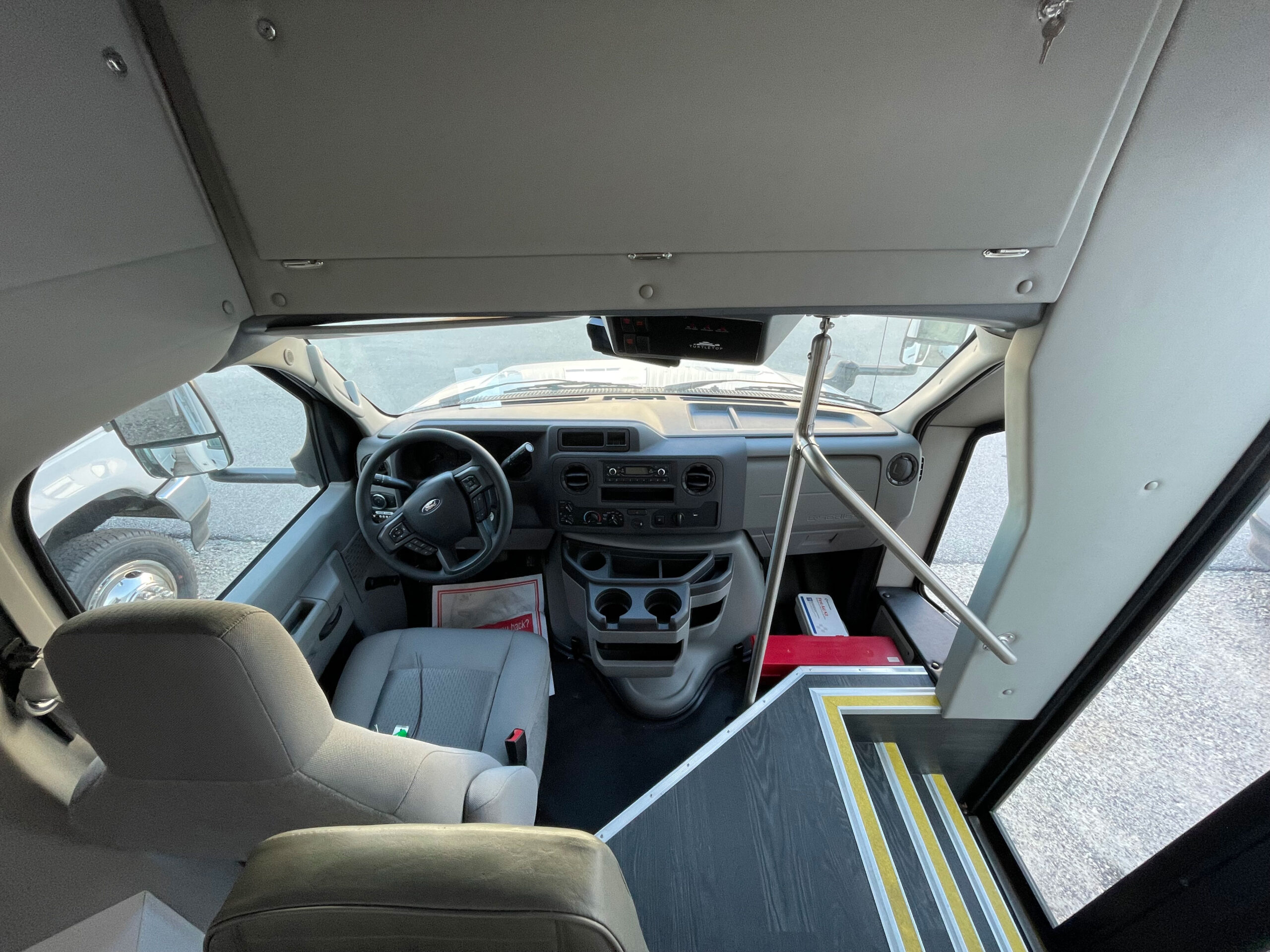

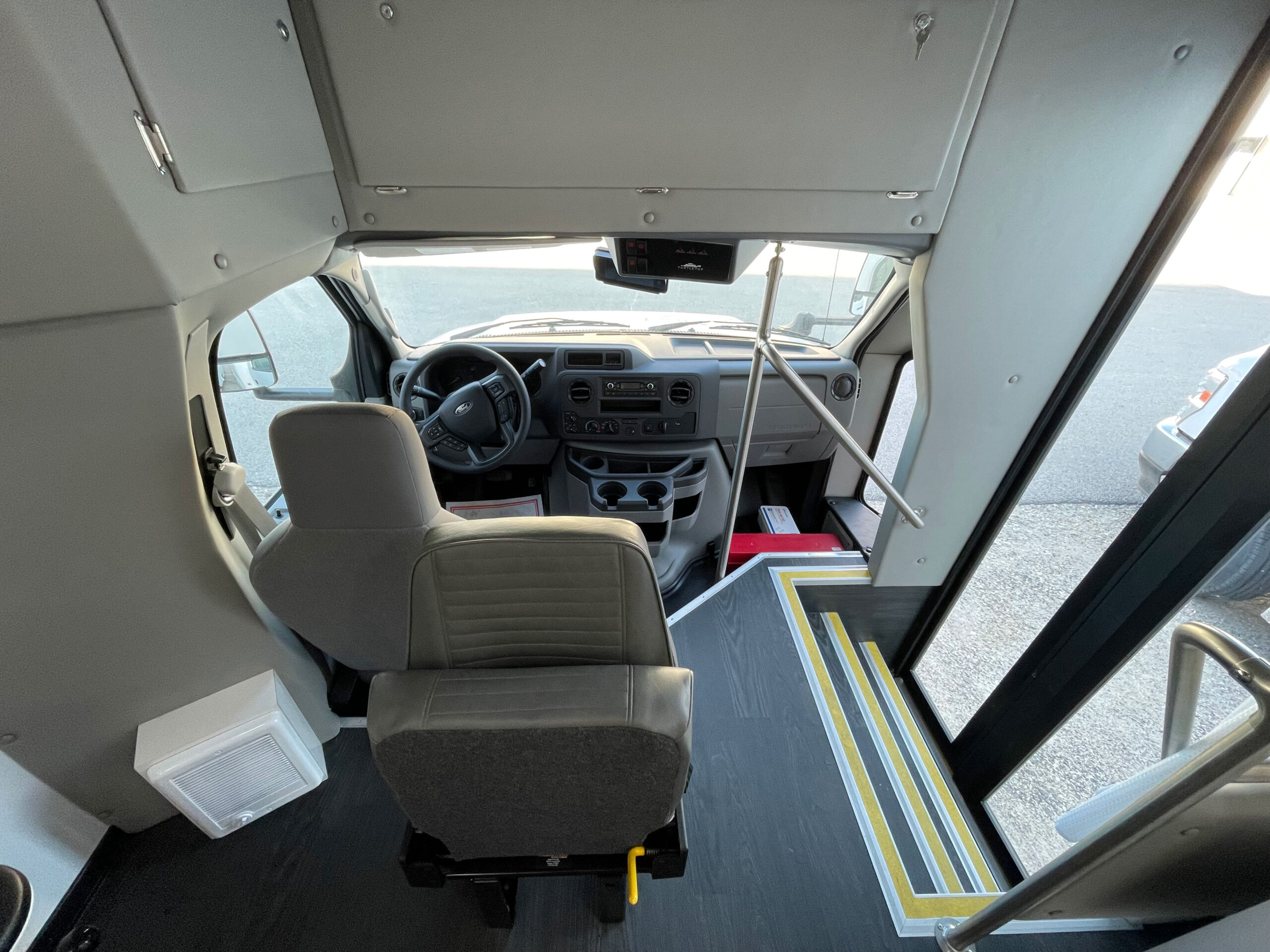

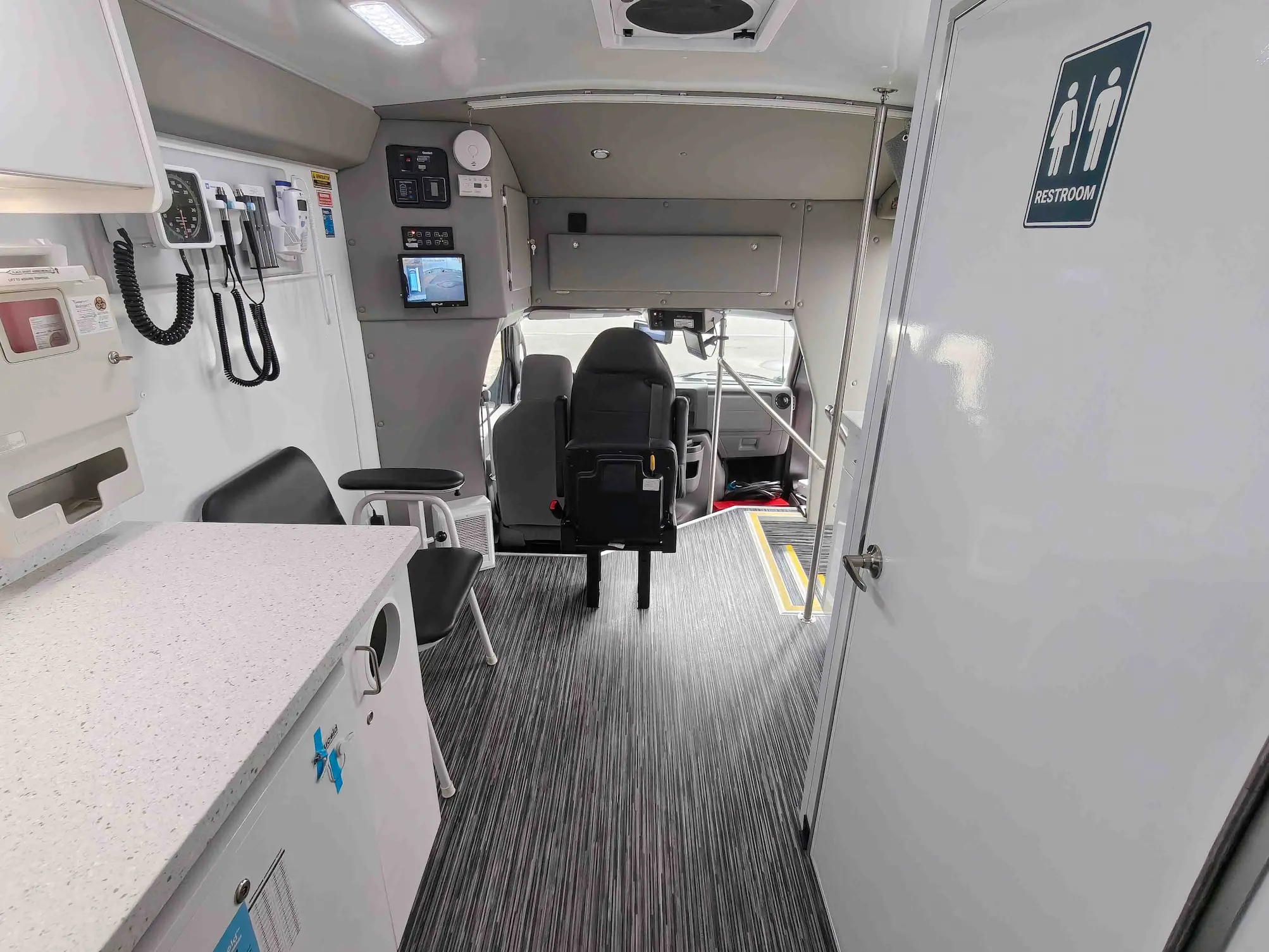

Cab Area

  • Bluetooth Stereo
  • Comfortable Bucket Driver Seat with Armrest

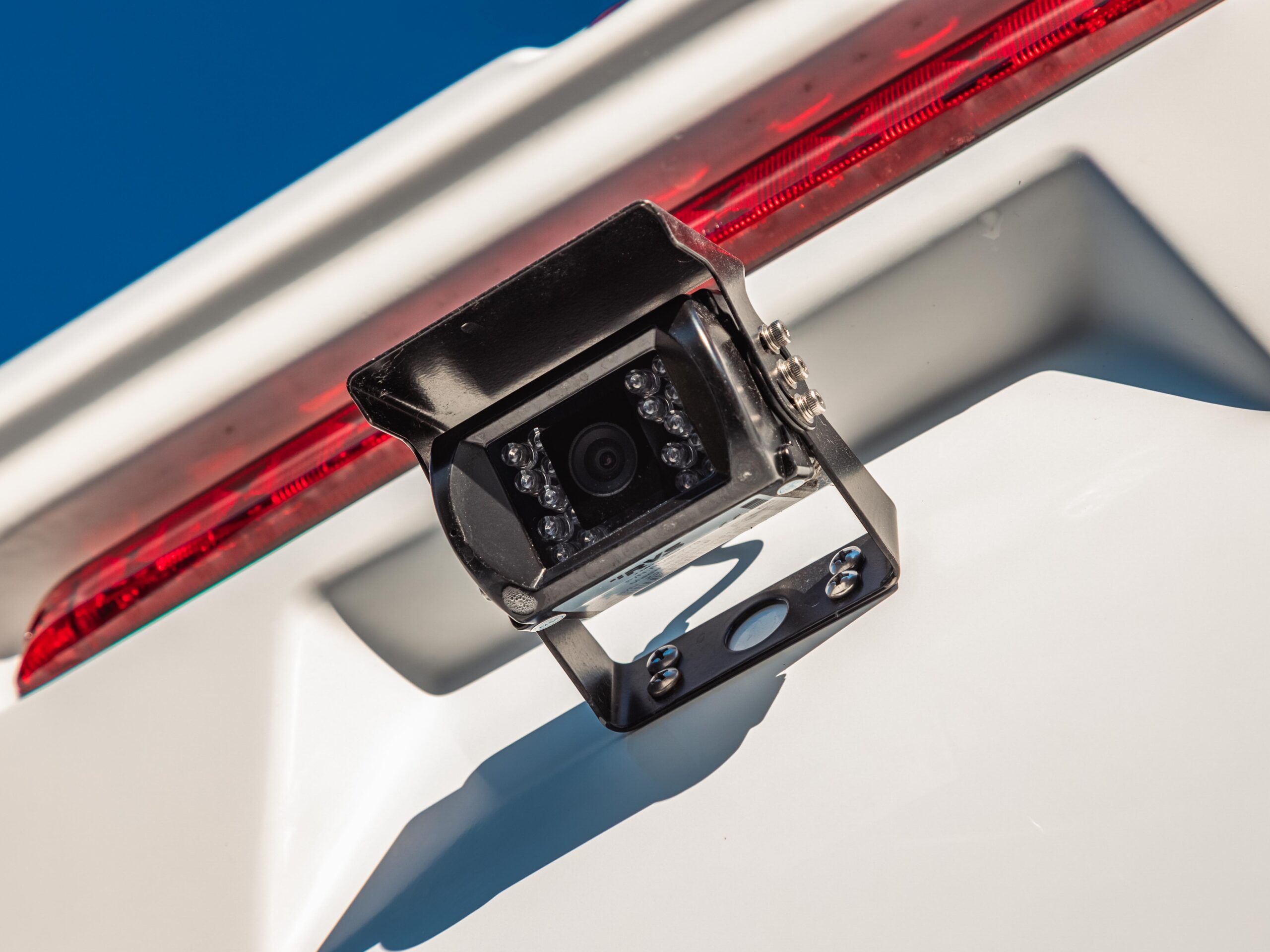

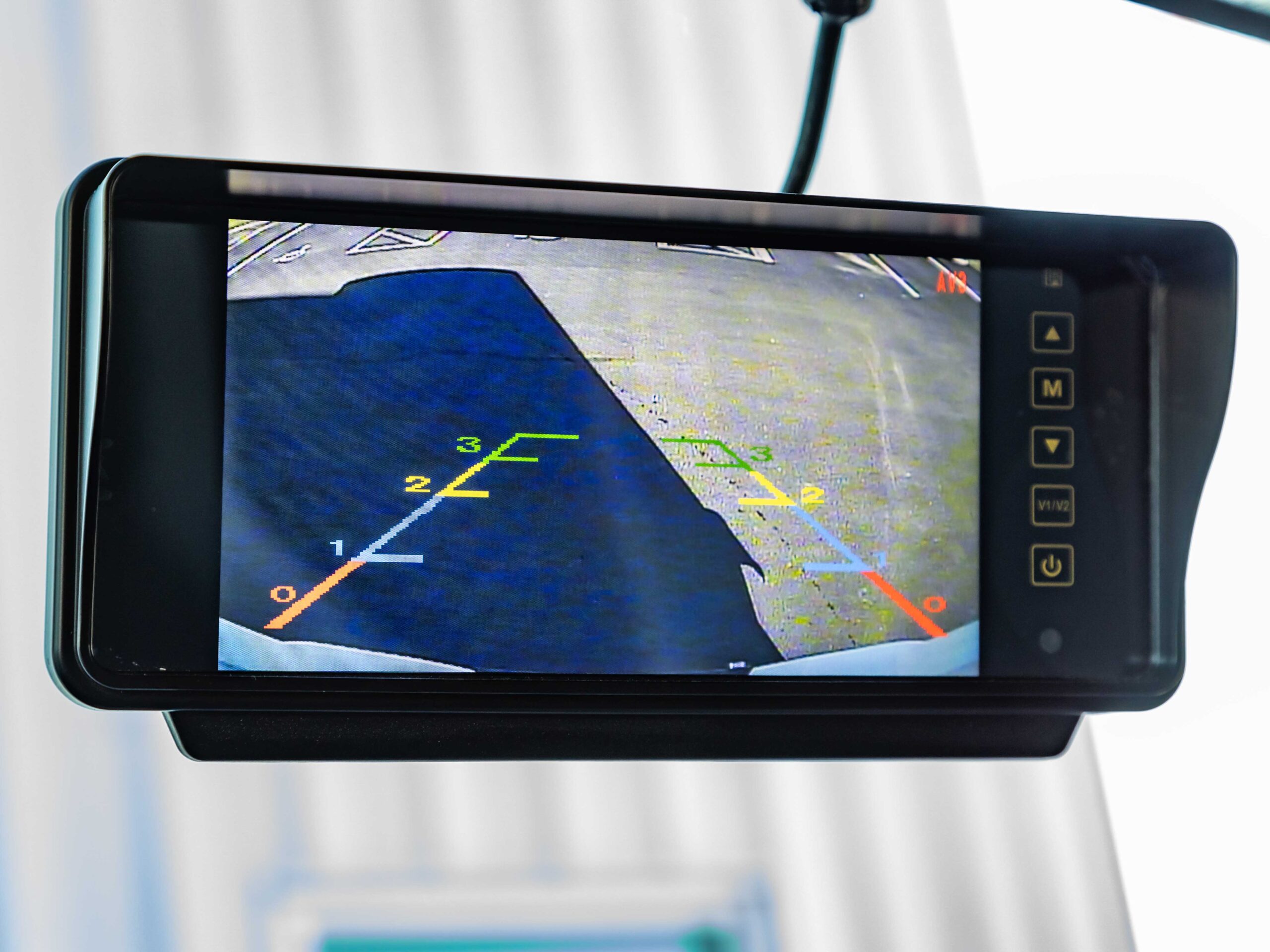

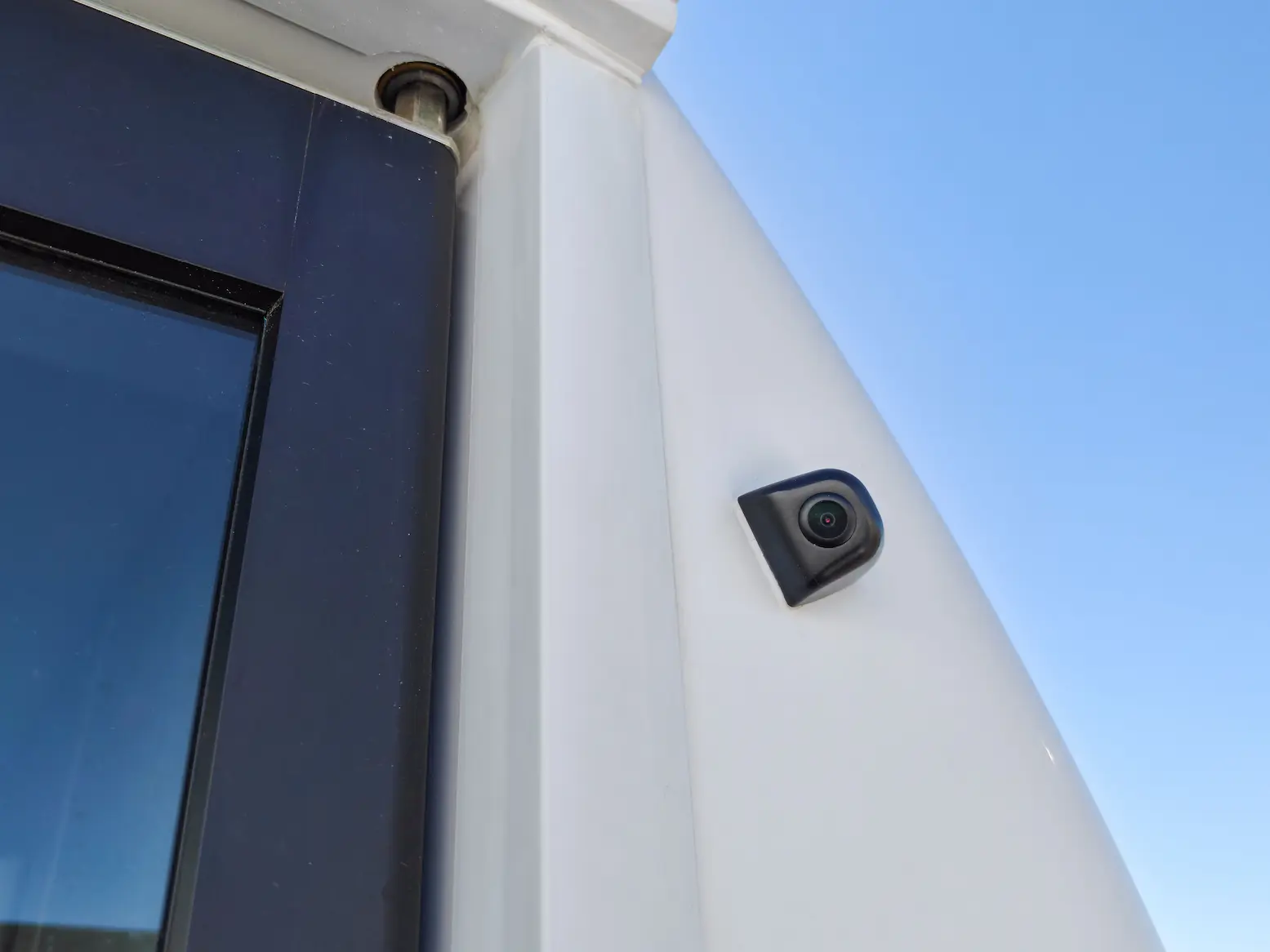

  • RVS Backup Camera System with Rear and Side Cameras and 7" LED Monitor
  • Diamond Plate Wide Running Board For Easier Driver Entry
  • Solid Wall between Body with Curtain Covered Access For Easier Maneuverability

Electrical

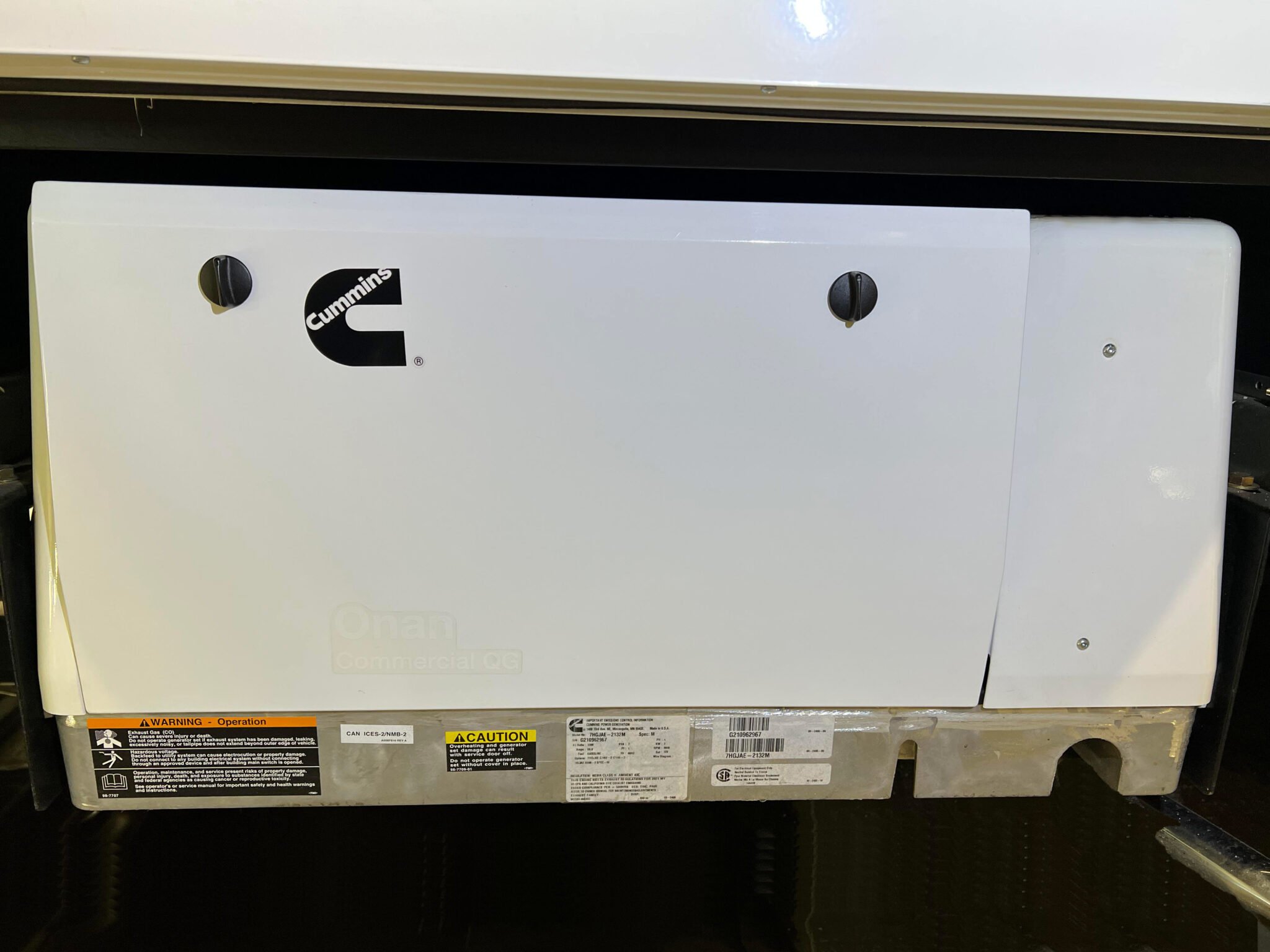

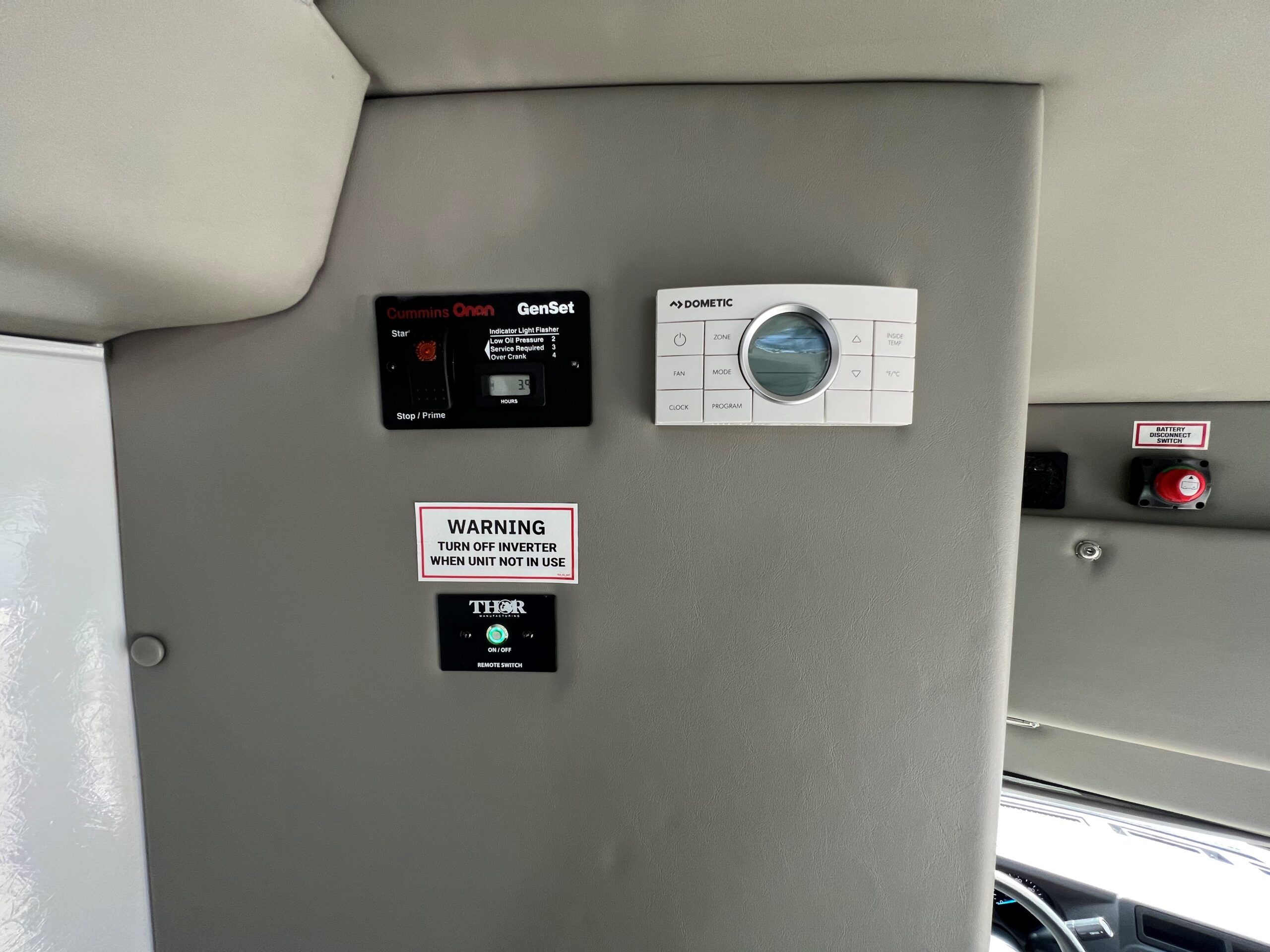

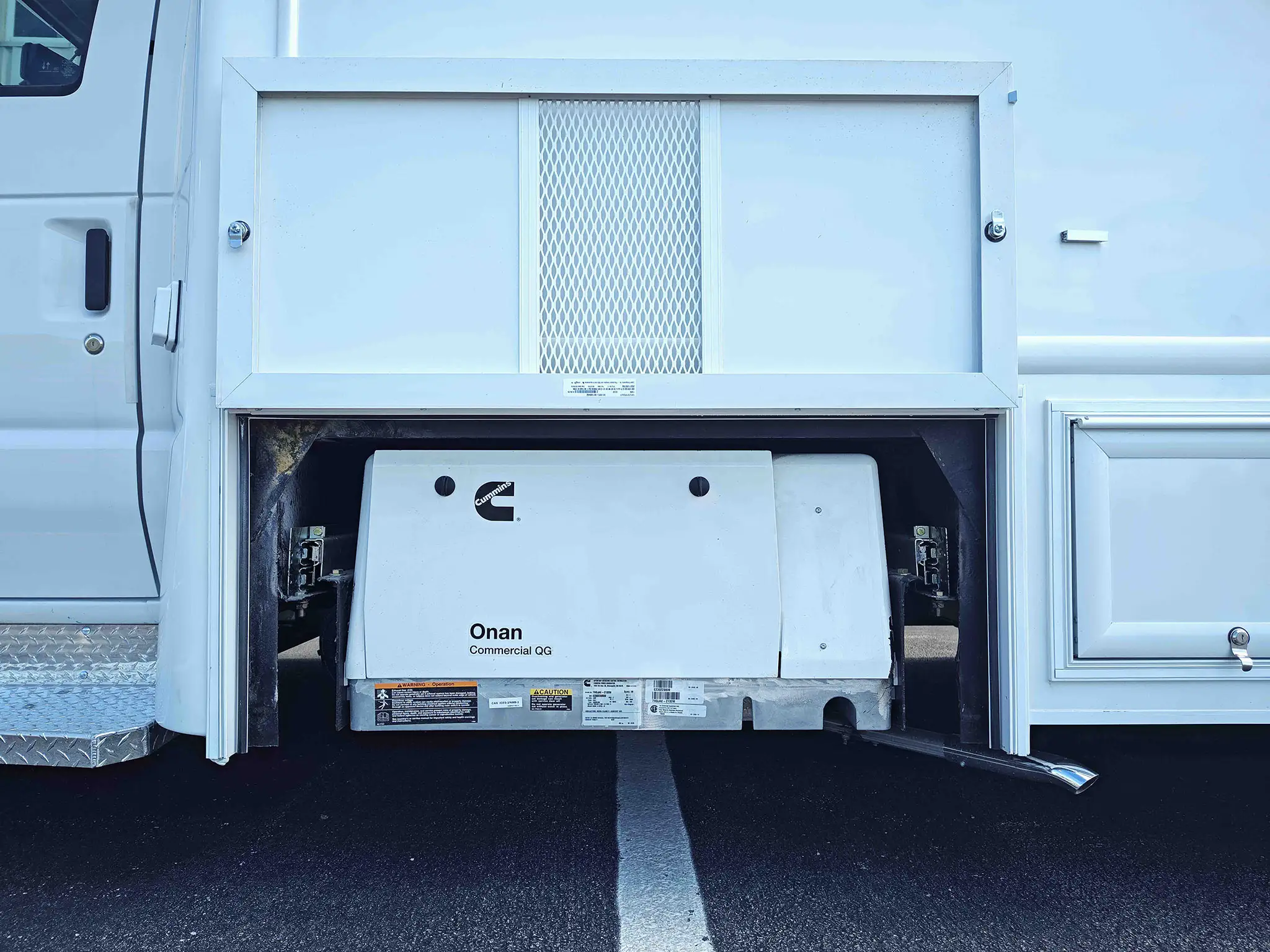

  • Commercial Grade Cummins Onan 7kw Generator With Prep Kit
  • Generator Remote Start System
  • Commercial Grade 110V Electrical System

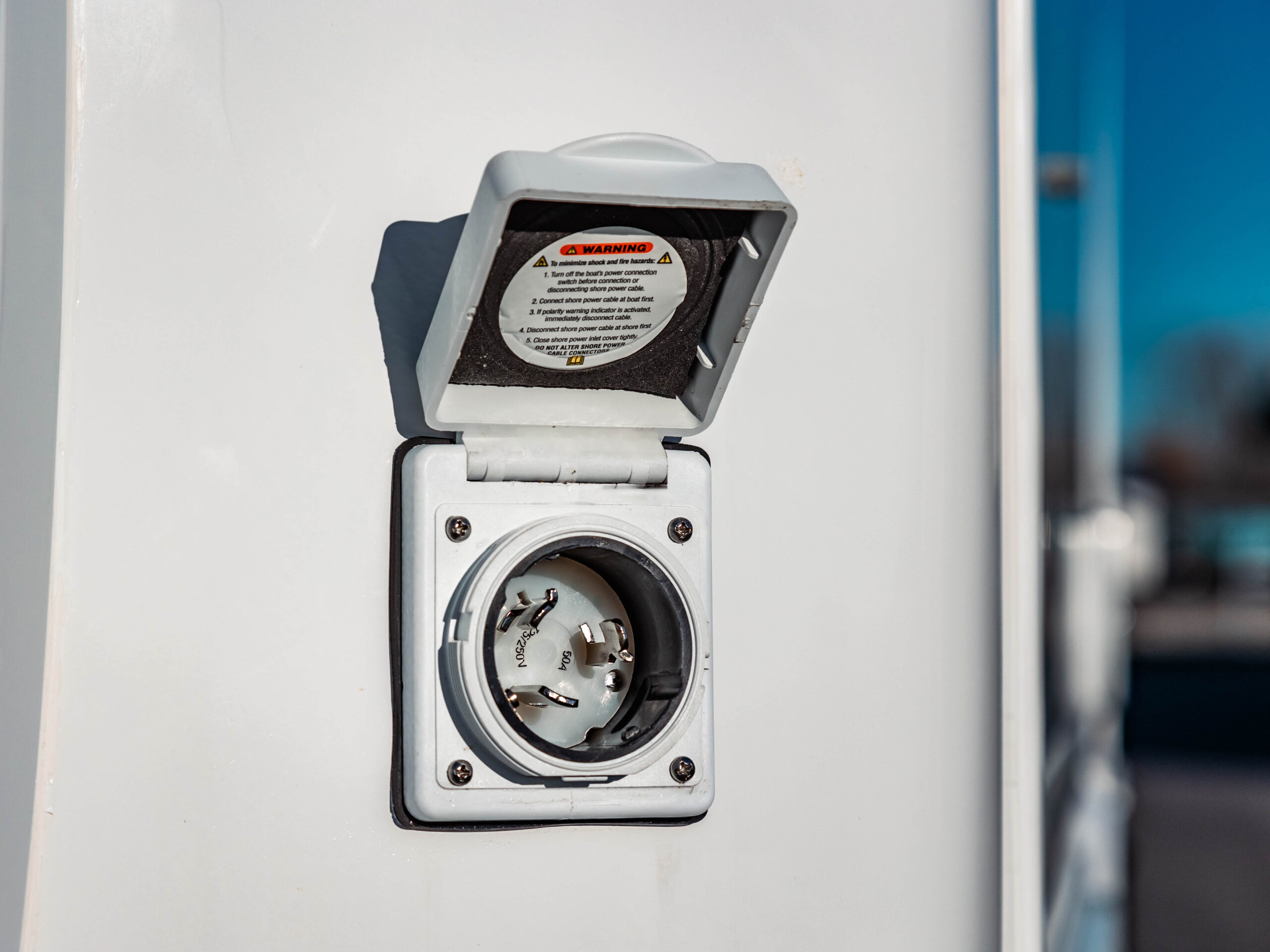

  • 50 Amp Shore Power with 28 ft length Cord
  • 50 Amp Power Converter and Transfer Switch
  • Interior 110V Outlets Throughout Vehicle

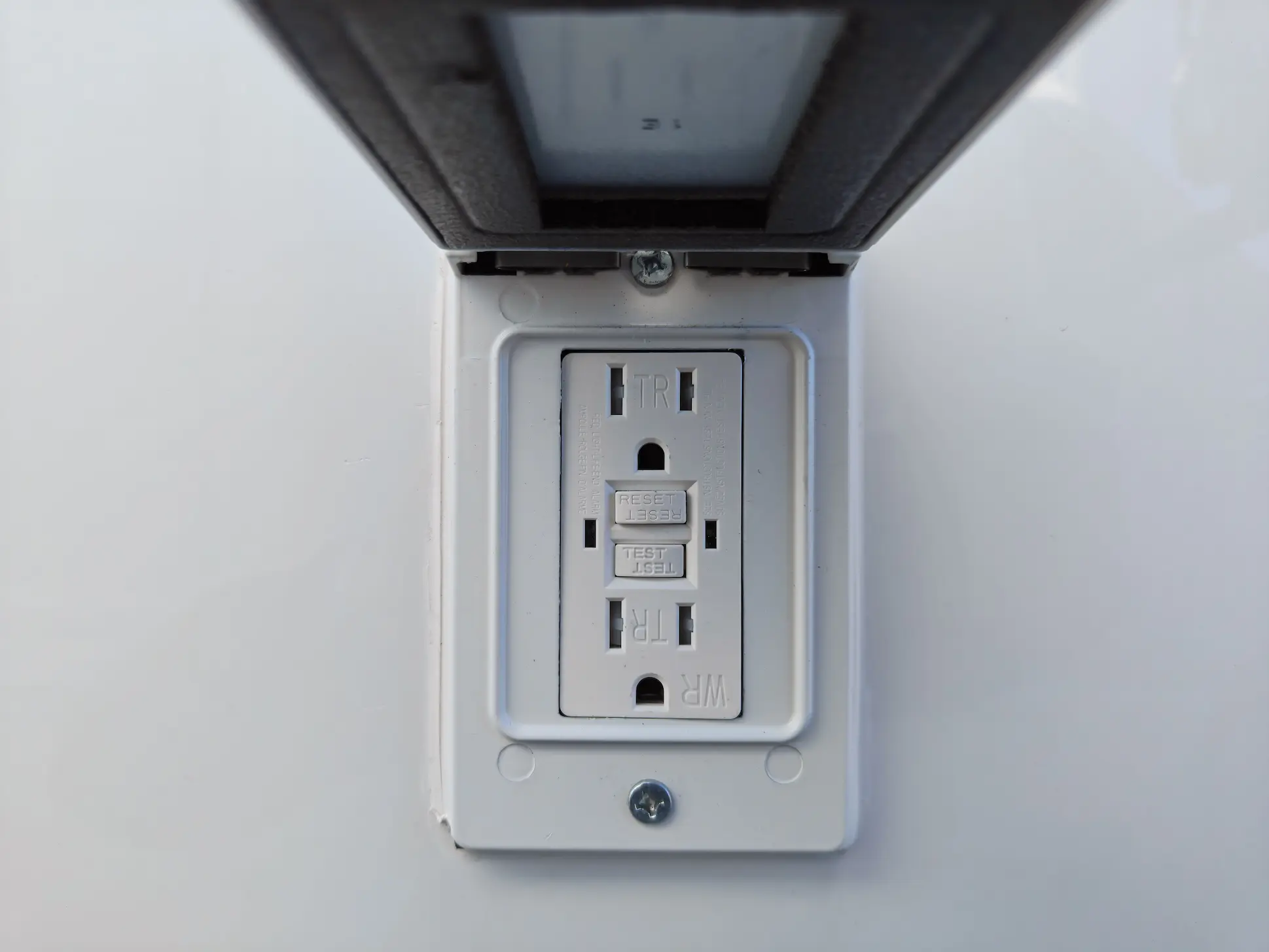

  • Weather Resistant Exterior 110V Outlet
  • 2000W Inverter located in the B-Pillar
  • One Constantly Hot 110V Outlet For Fridge

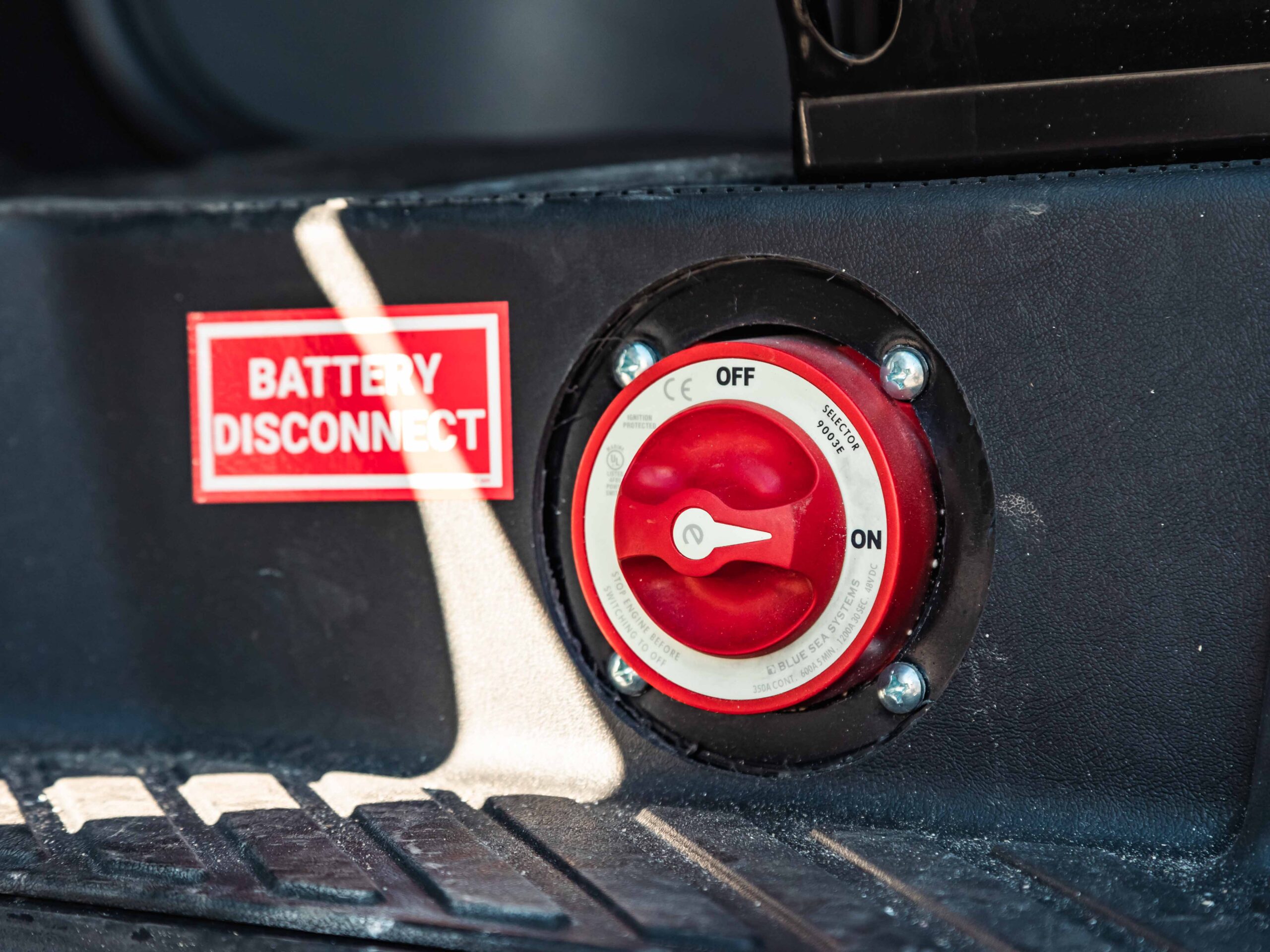

  • Master Battery Disconnect Switch

Climate Control

  • 110V 15,000 BTU Rooftop Air Conditioner
  • Dual 14" Roof Vents
  • Dual 110V 3,400 BTU Heaters

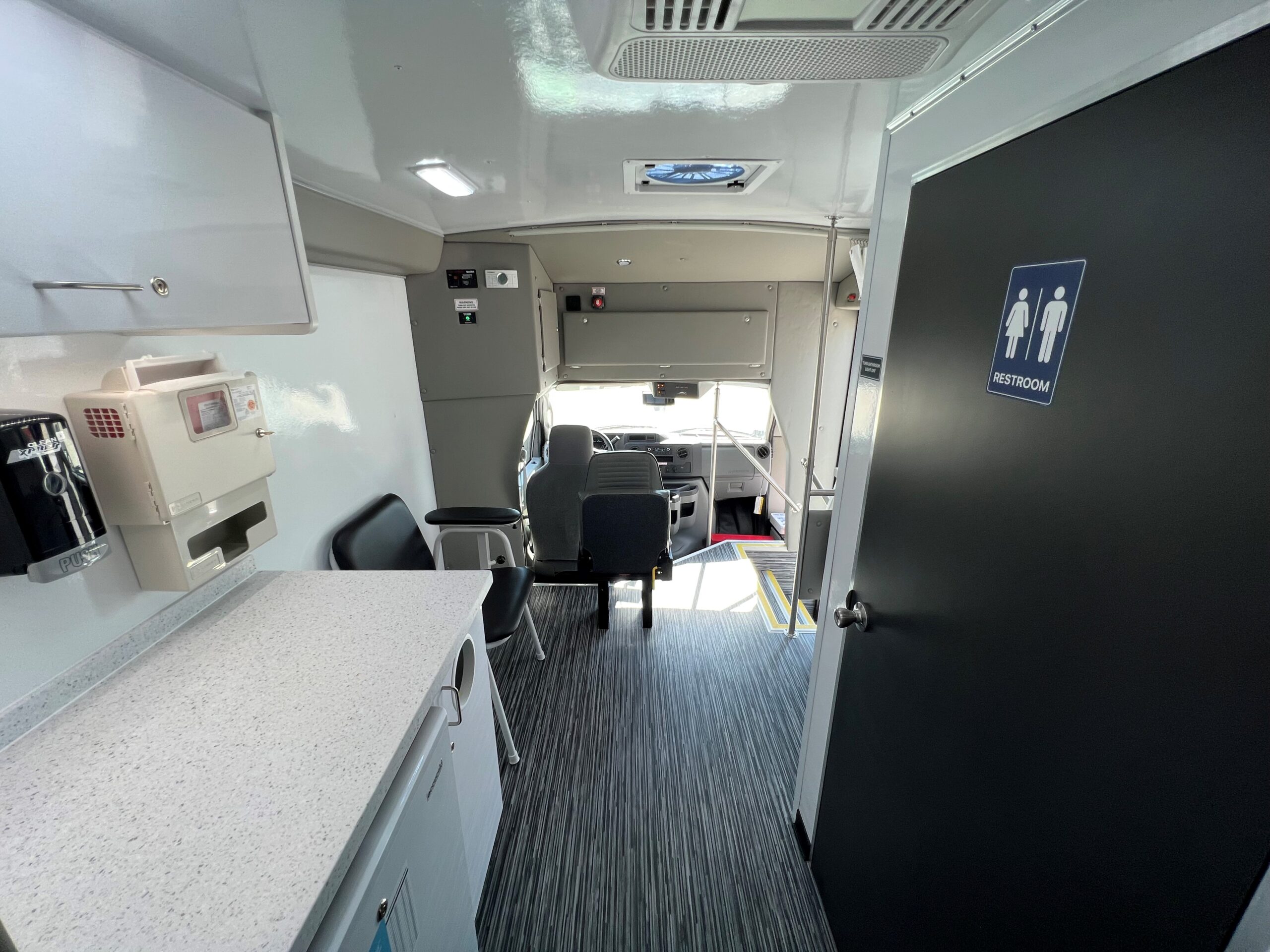

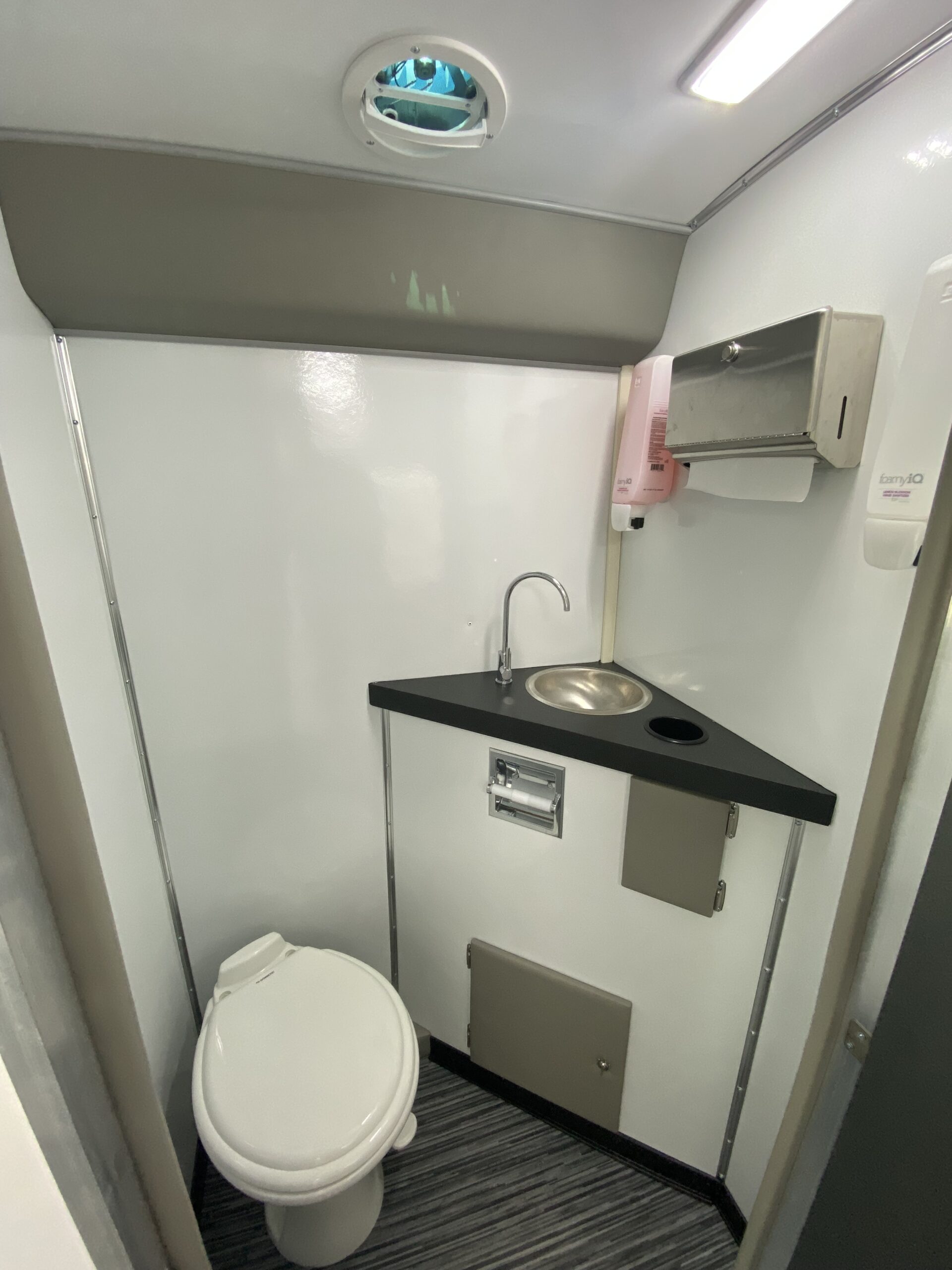

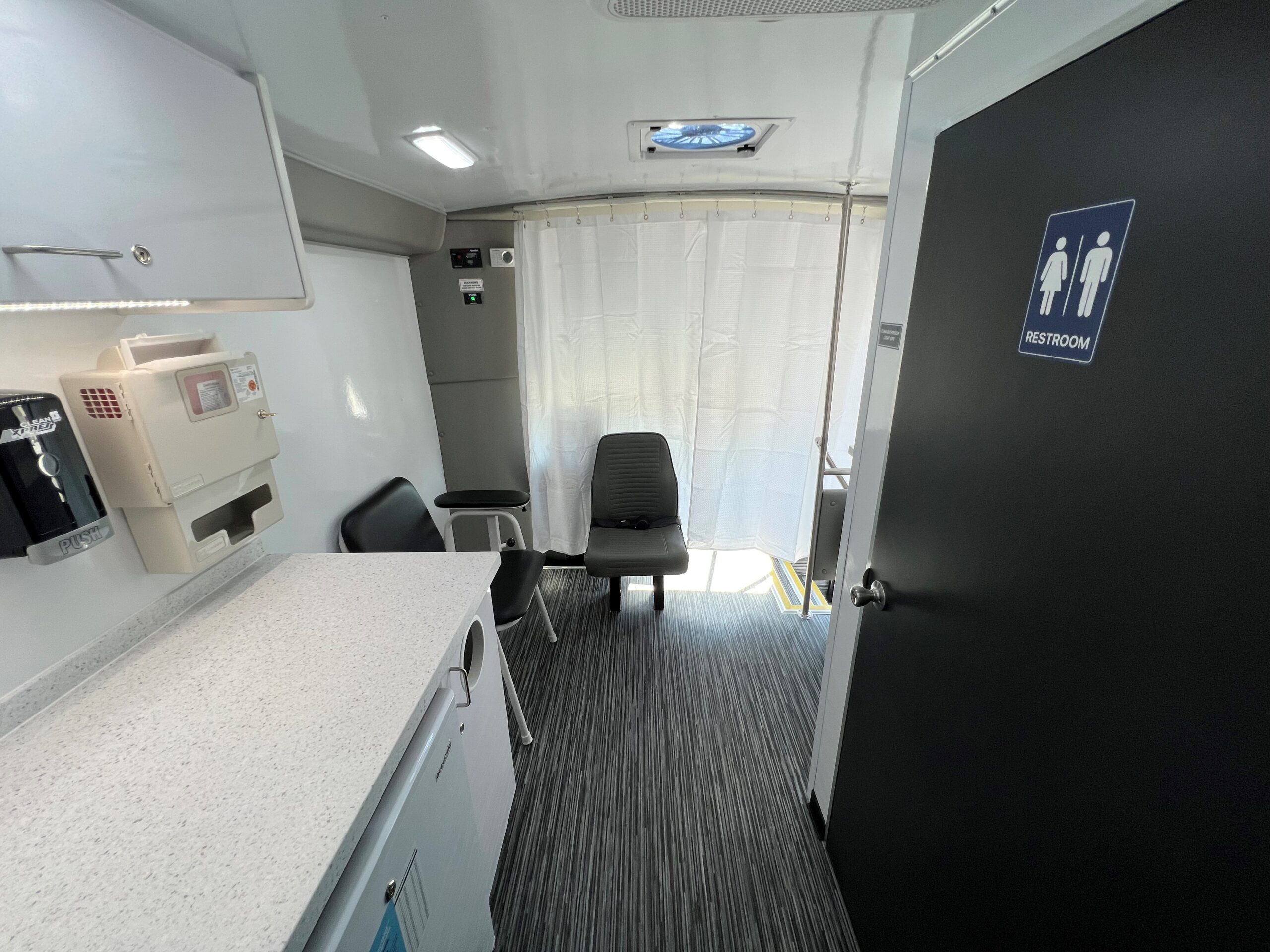

Lavatory

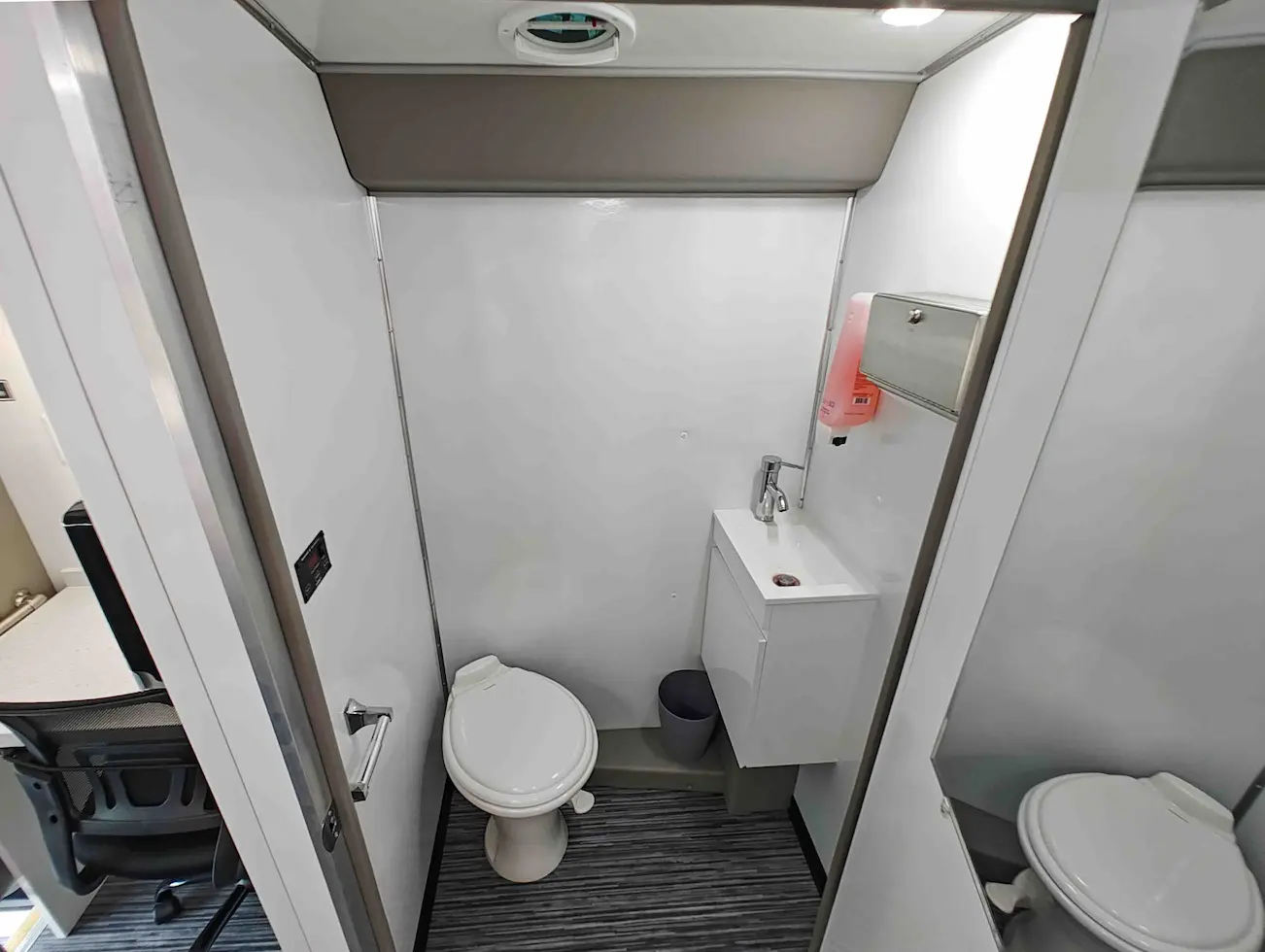

  • Lavatory Room with Toilet and Sink
  • Roof Vent
  • Hand Wash and Foamy Sanitizer
  • Plumbing System with Fresh Water and Black Water Tanks
  • Electric Tank Monitoring System
  • Sewer Hose with Carrier

Safety

  • 5 lb Fire Extinguisher
  • Smoke and Carbon Monoxide Detector
  • Backup Alarm
  • Safety Triangles For Roadside Emergency
  • Eye Wash Station
  • 24 Unit First Aid Kit

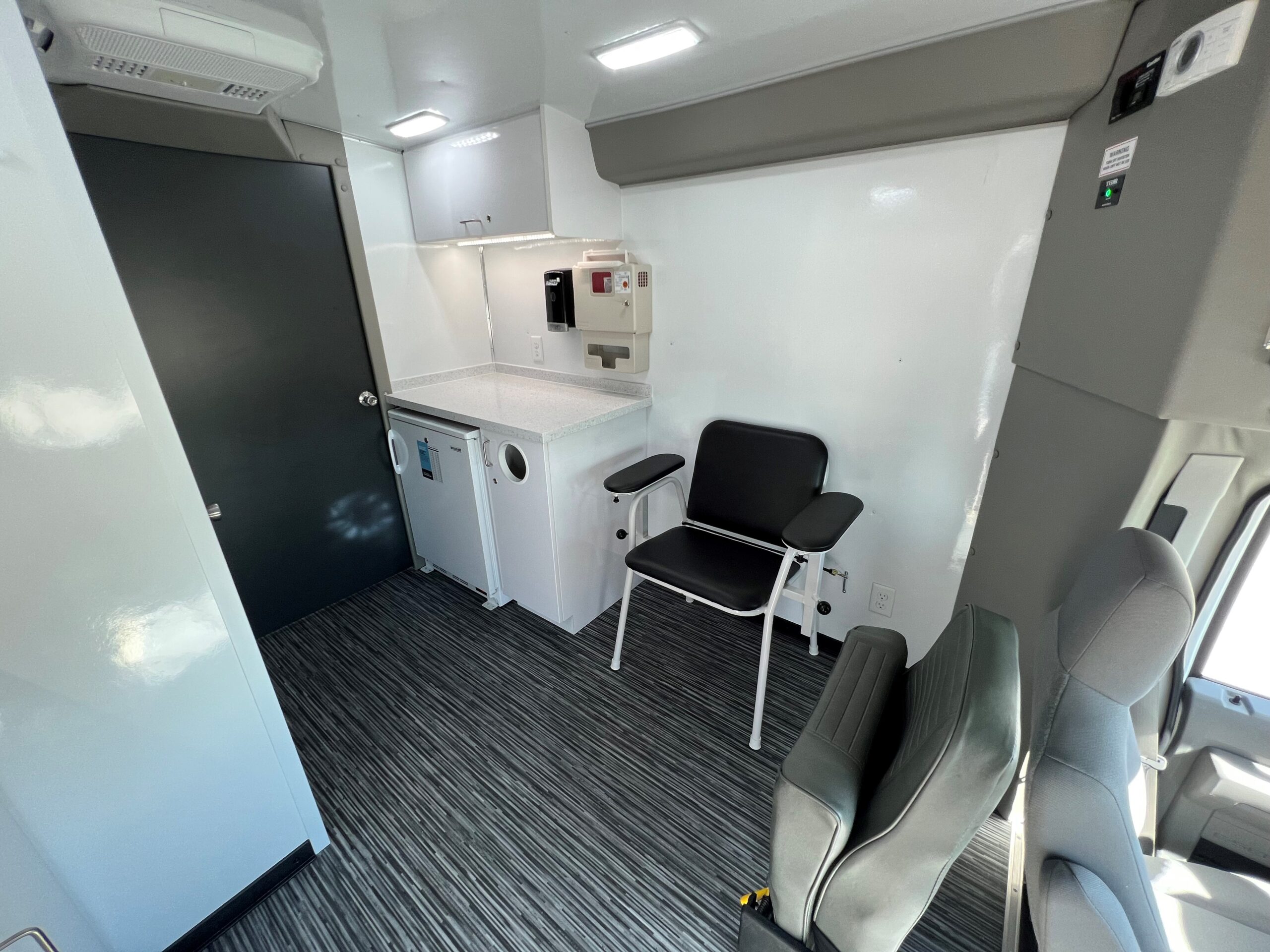

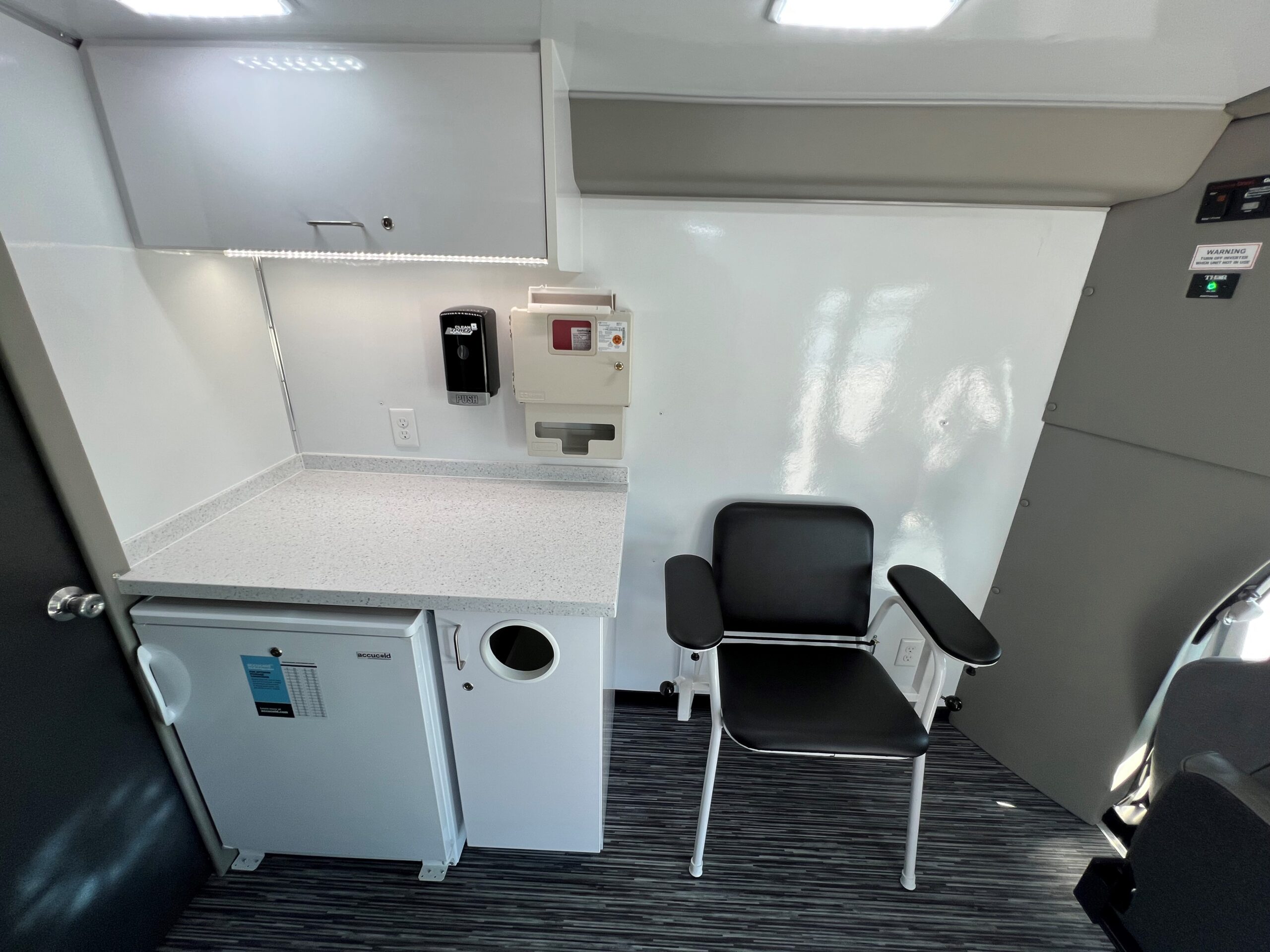

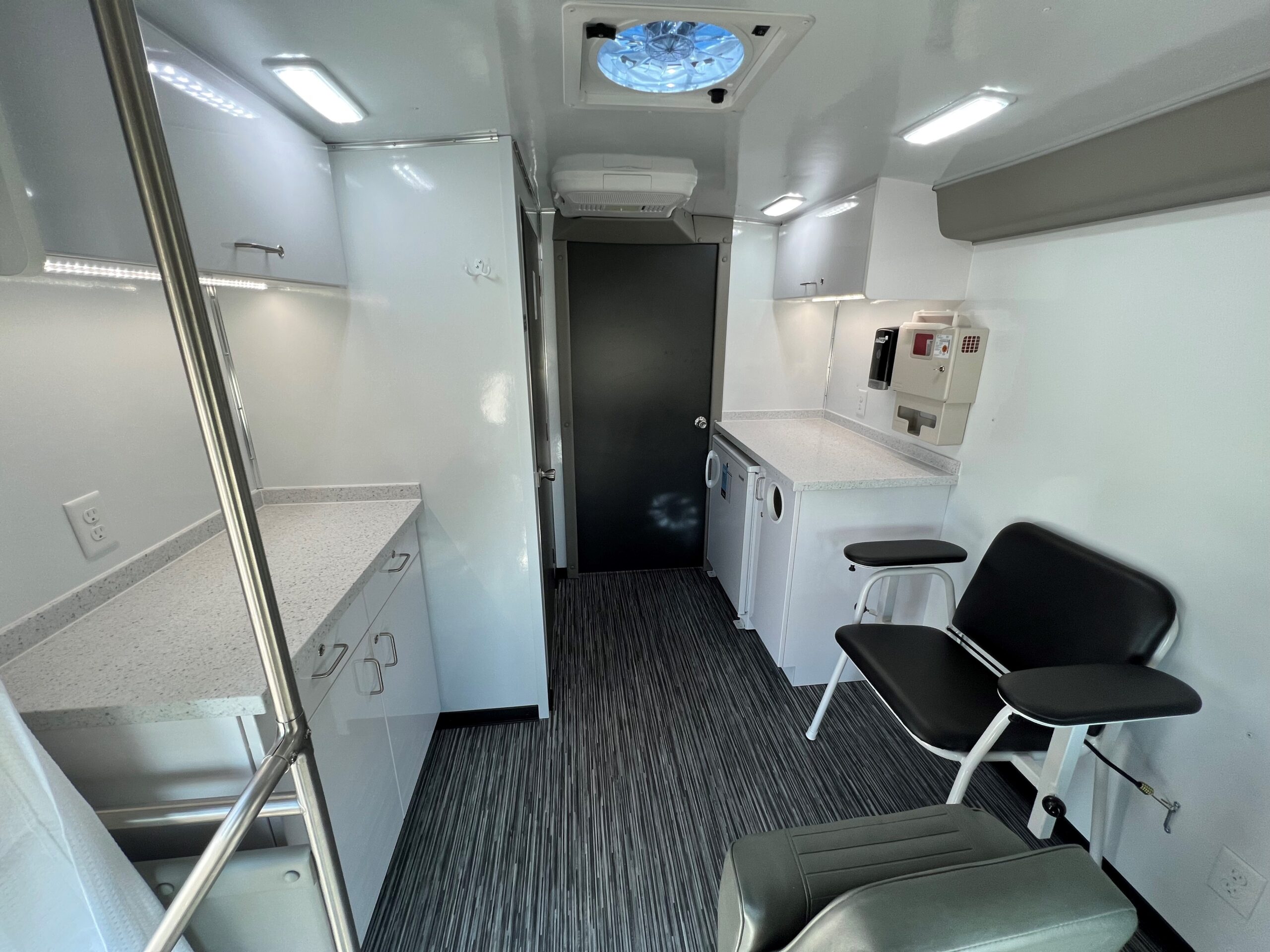

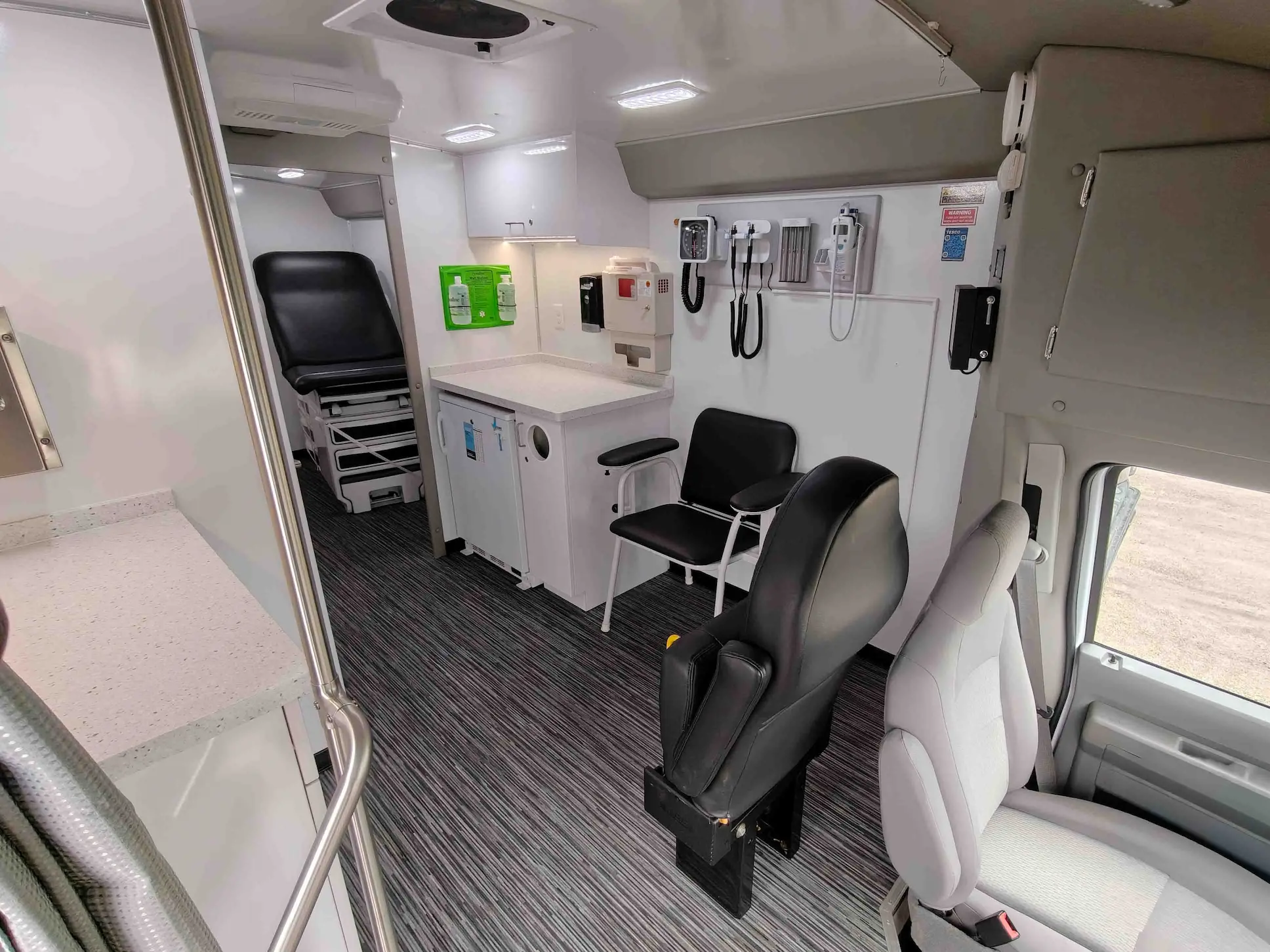

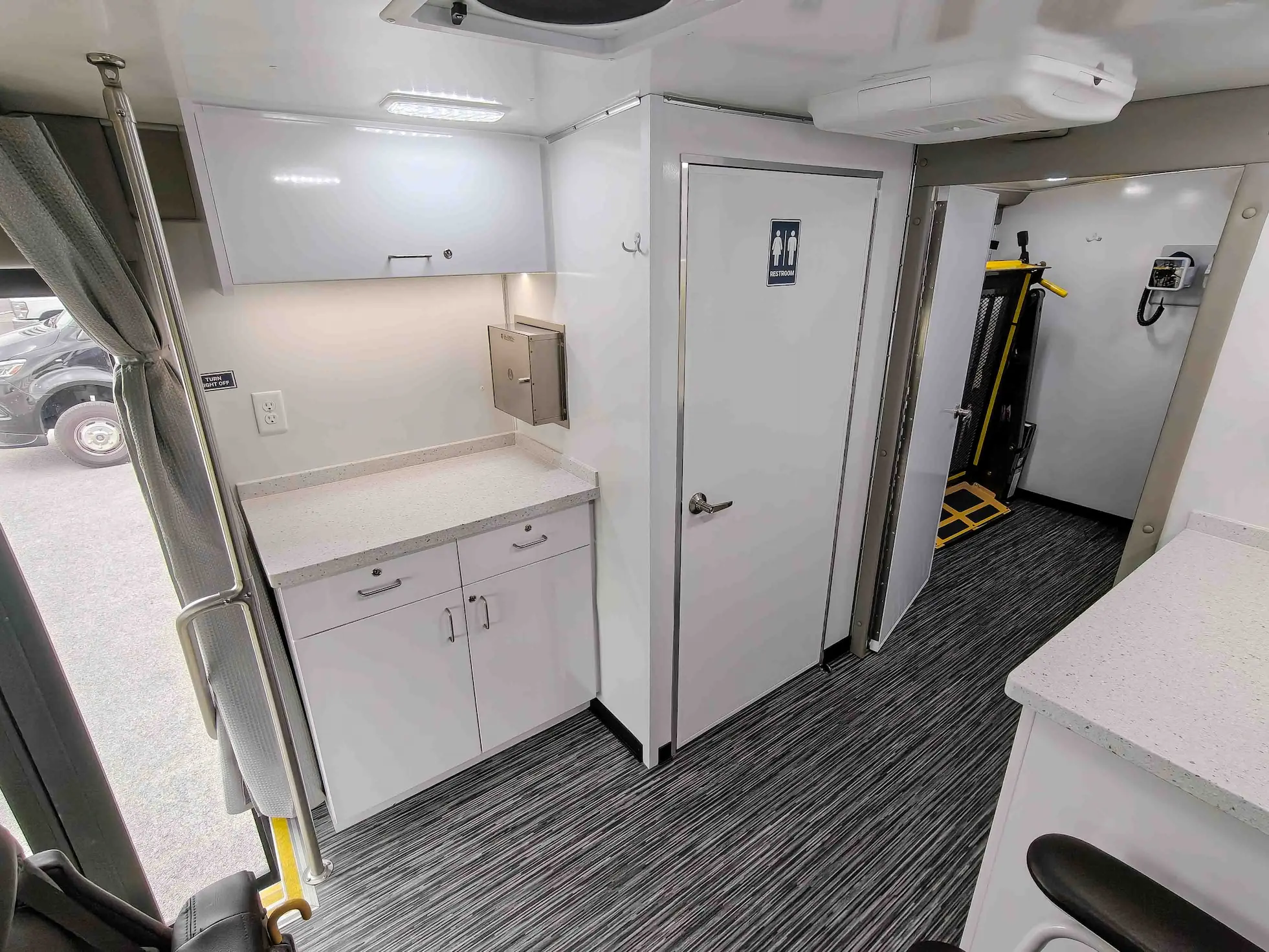

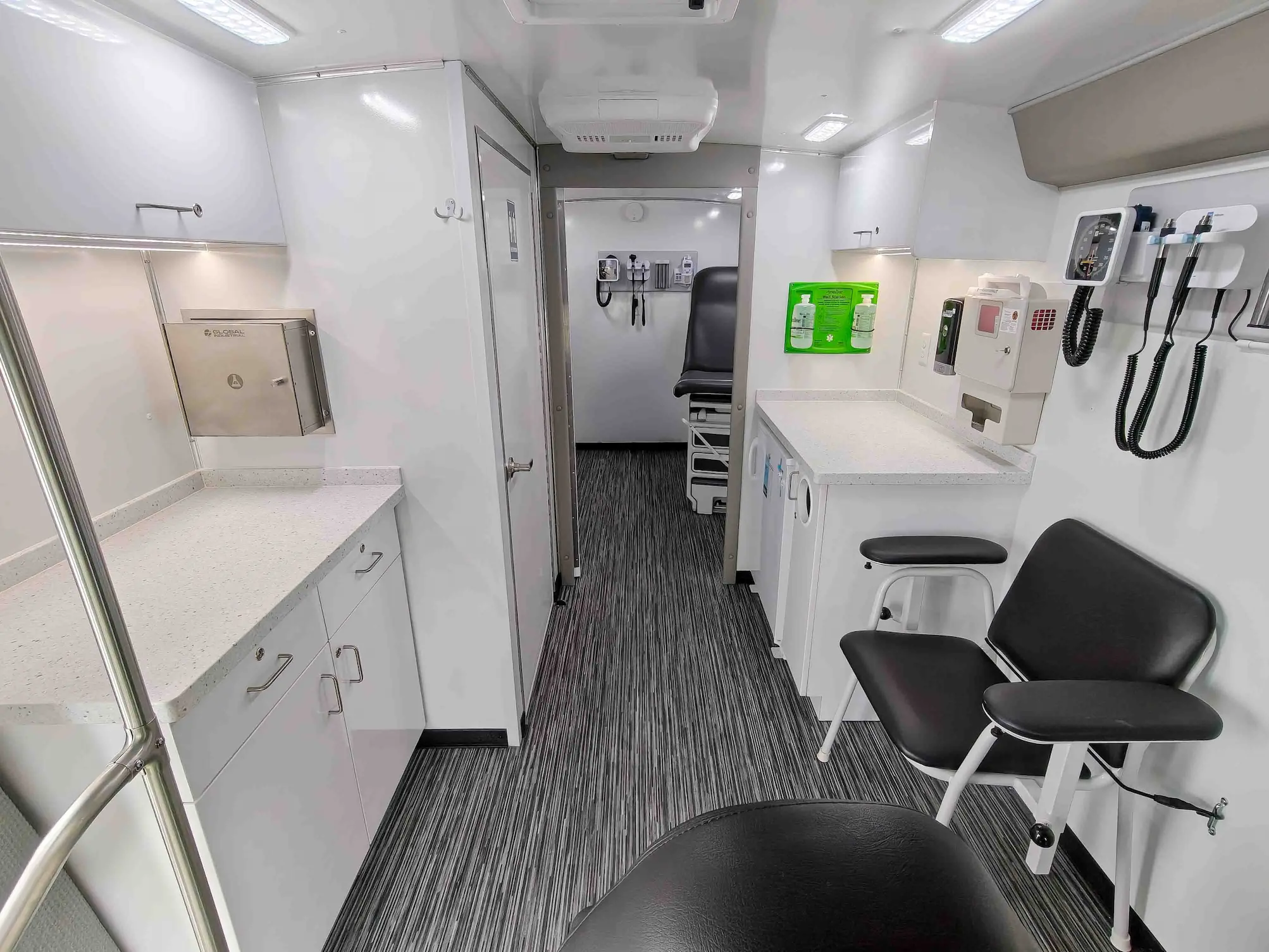

Blood Draw / Lab Area

  • Phlebotomy Chair
  • Physicians Locking Upper and Lower Cabinets
  • Corian Countertops
  • Under Cabinet LED Lighting
  • 5.5 cu ft Medical Grade Refrigerator
  • Waste Receptacle
  • Hand Sanitizer System
  • Sharps Disposal with Medical Glove Disposal Underneath

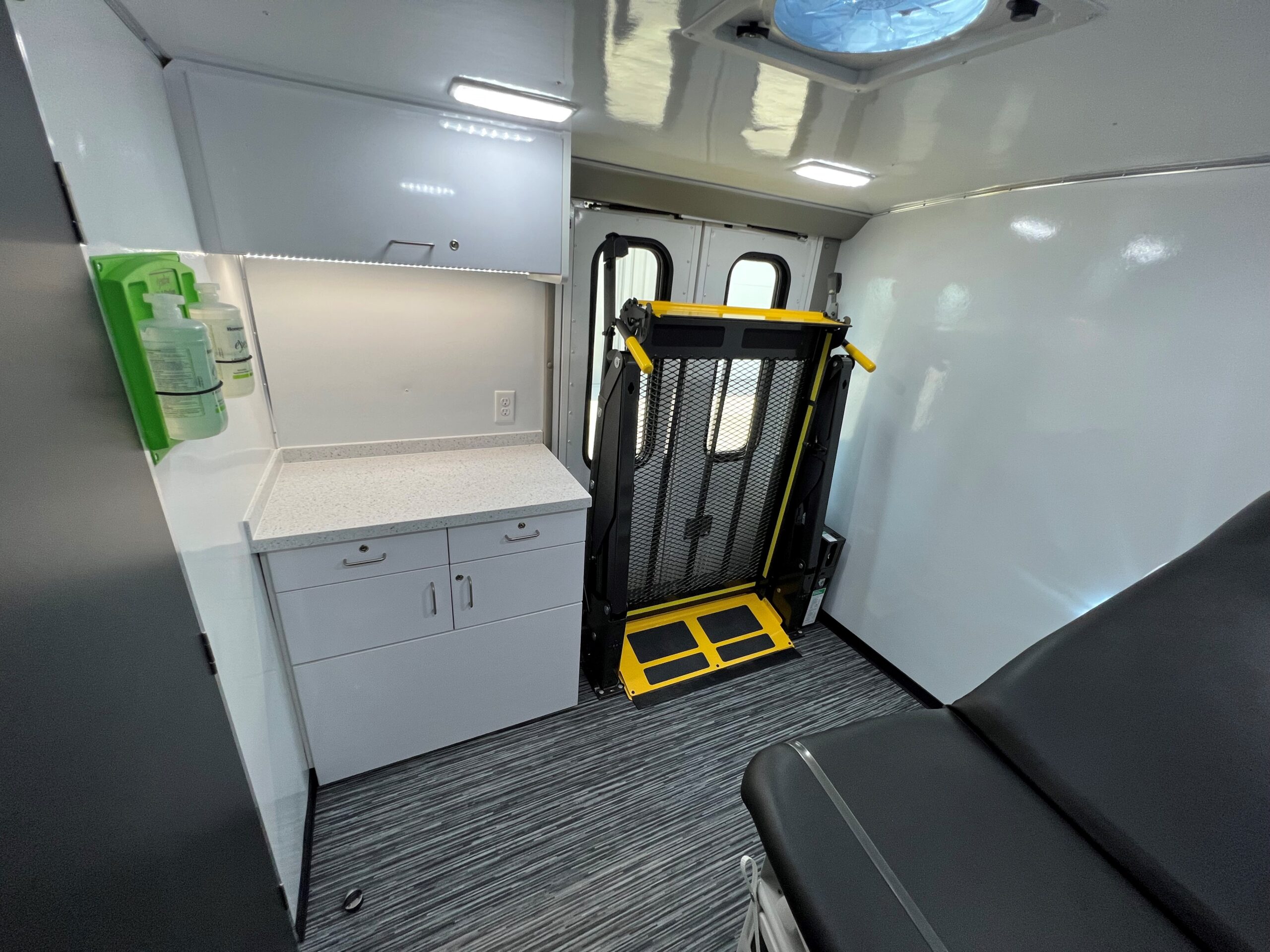

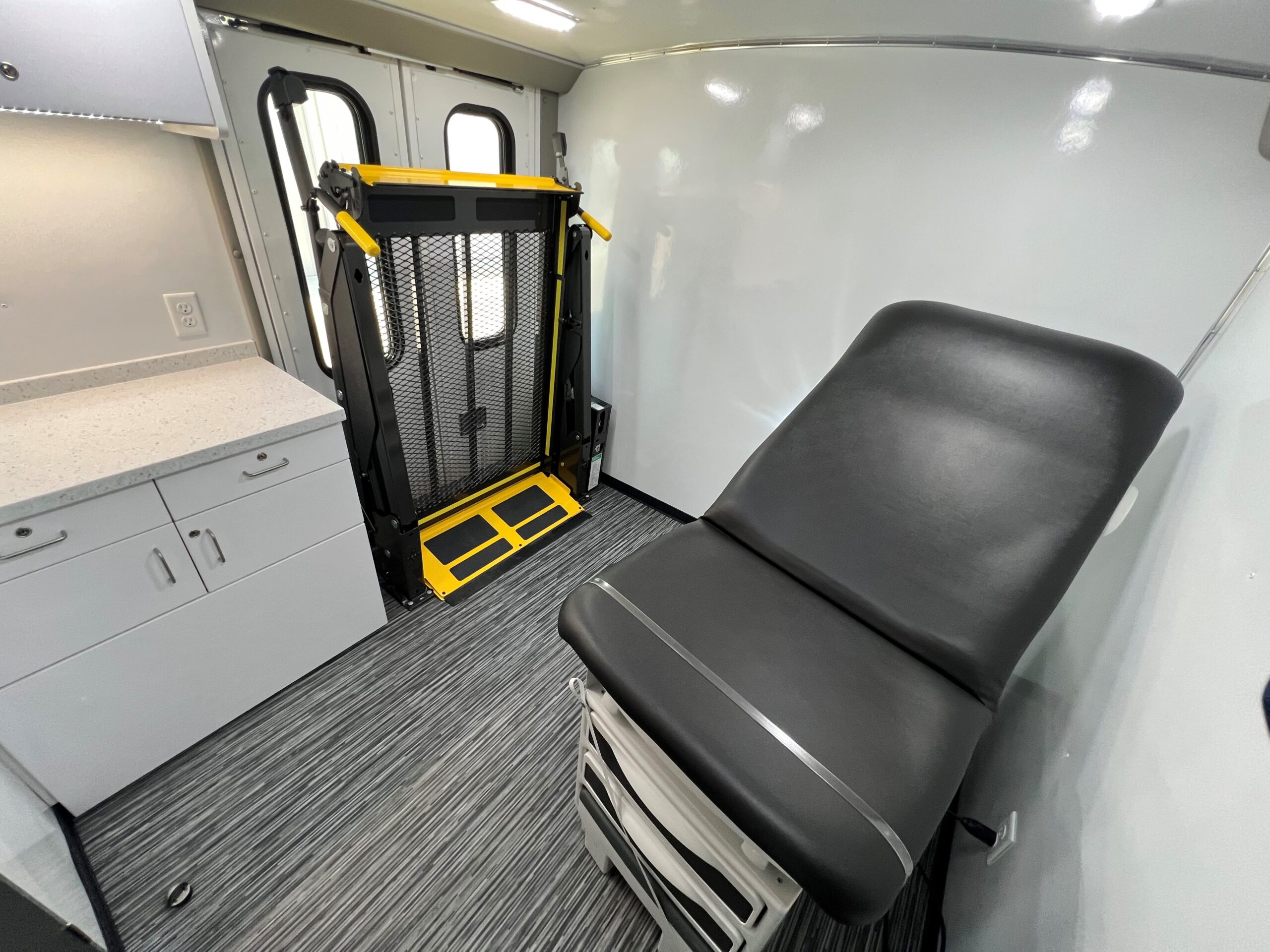

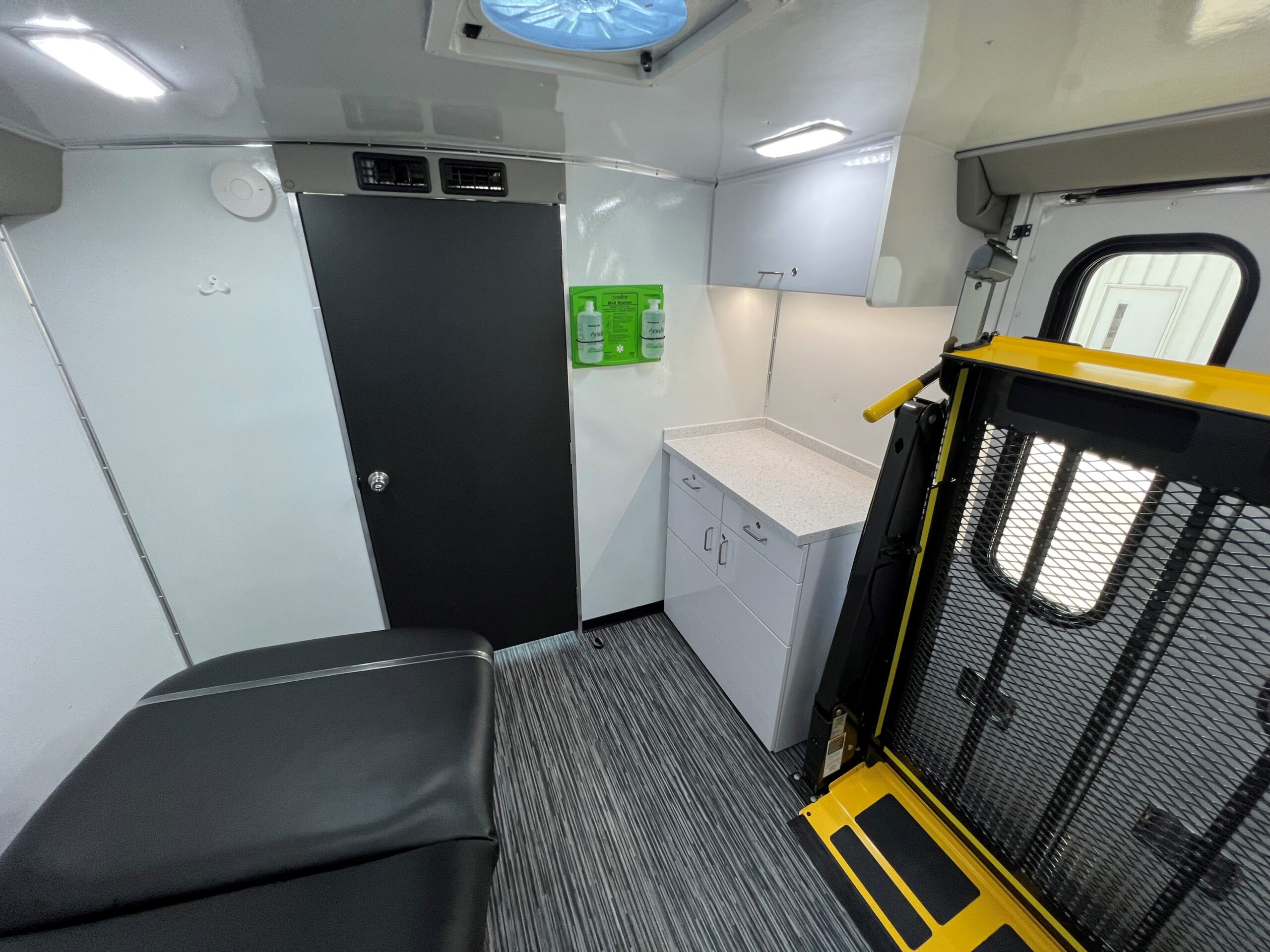

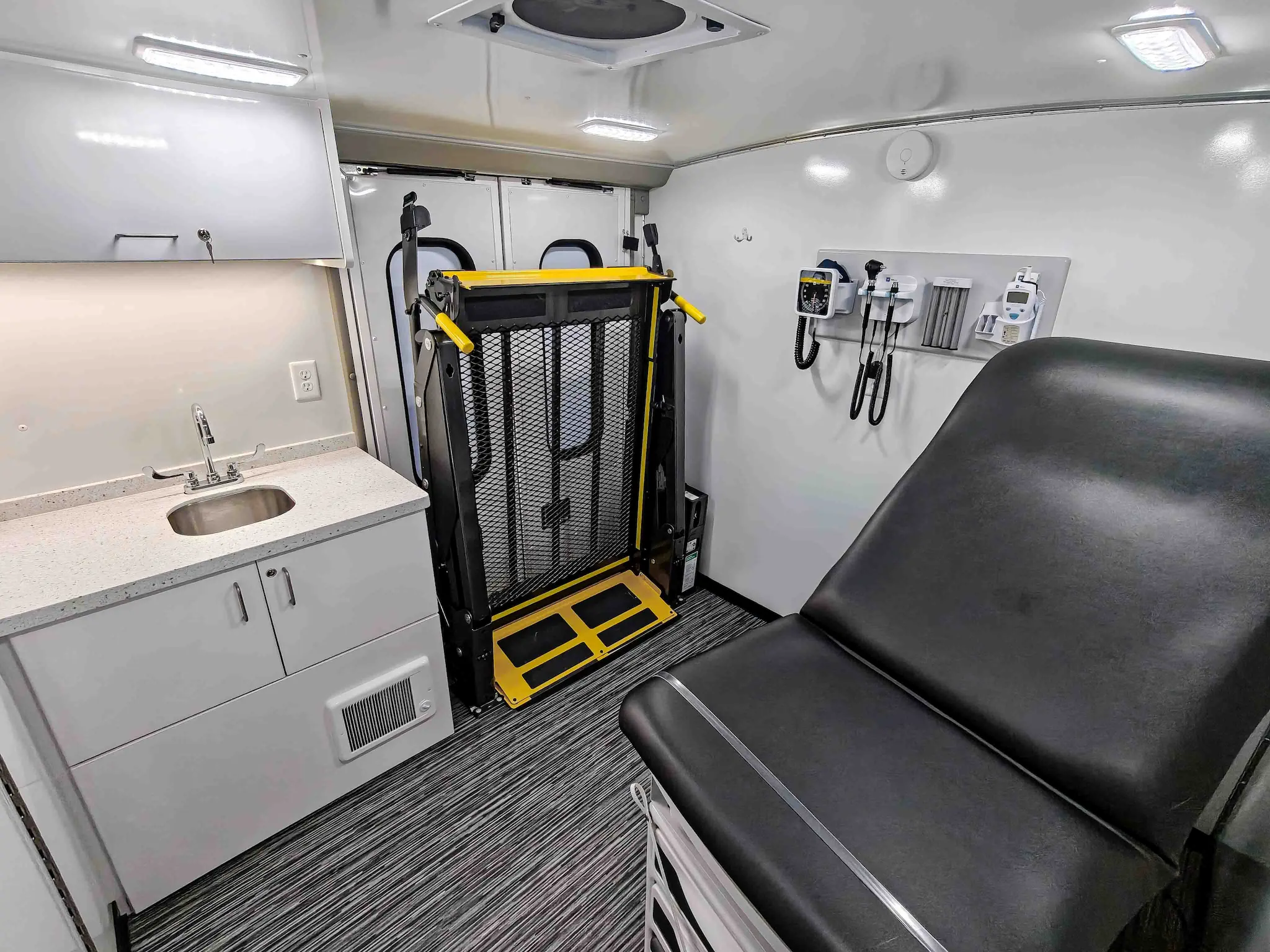

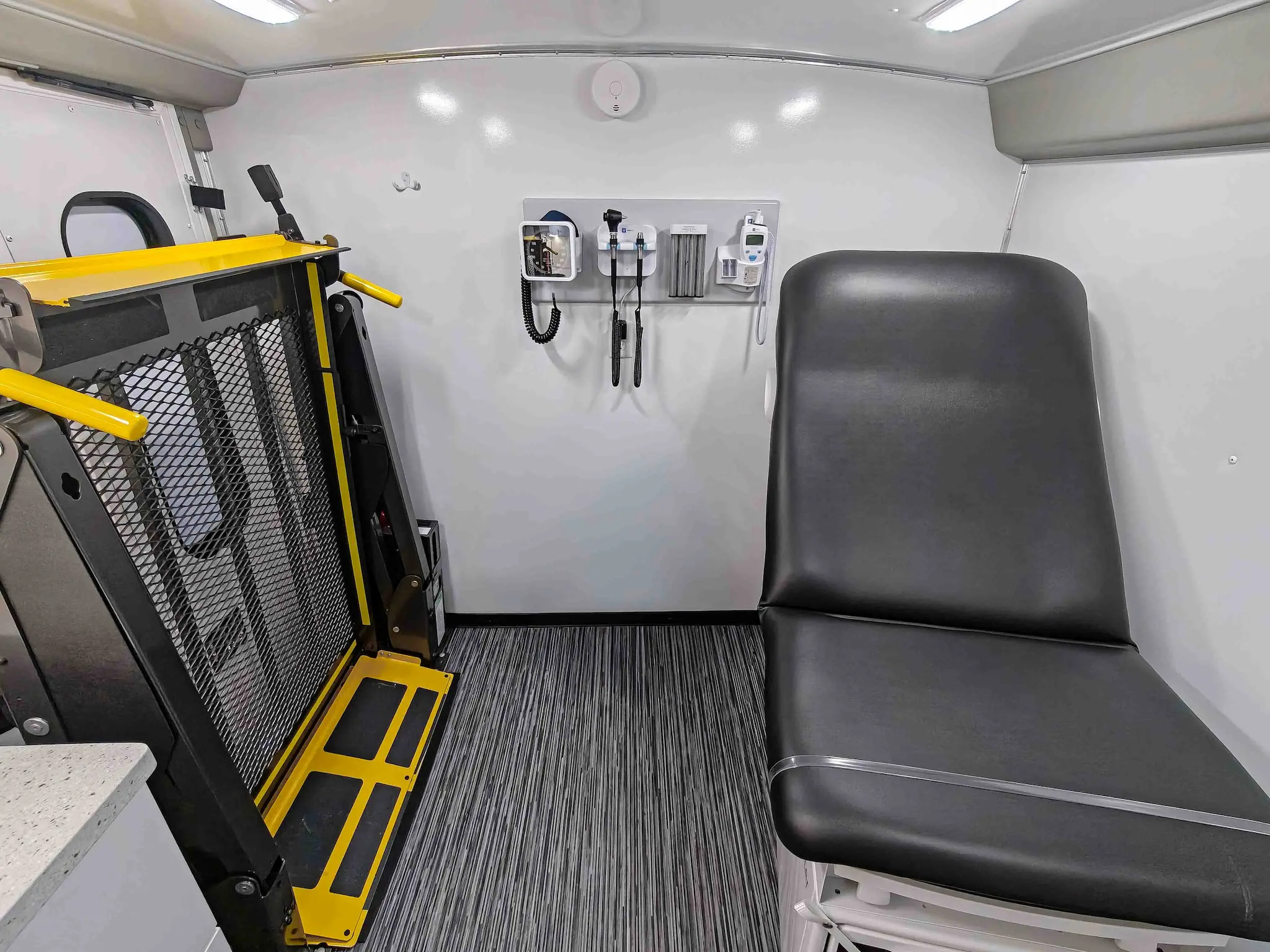

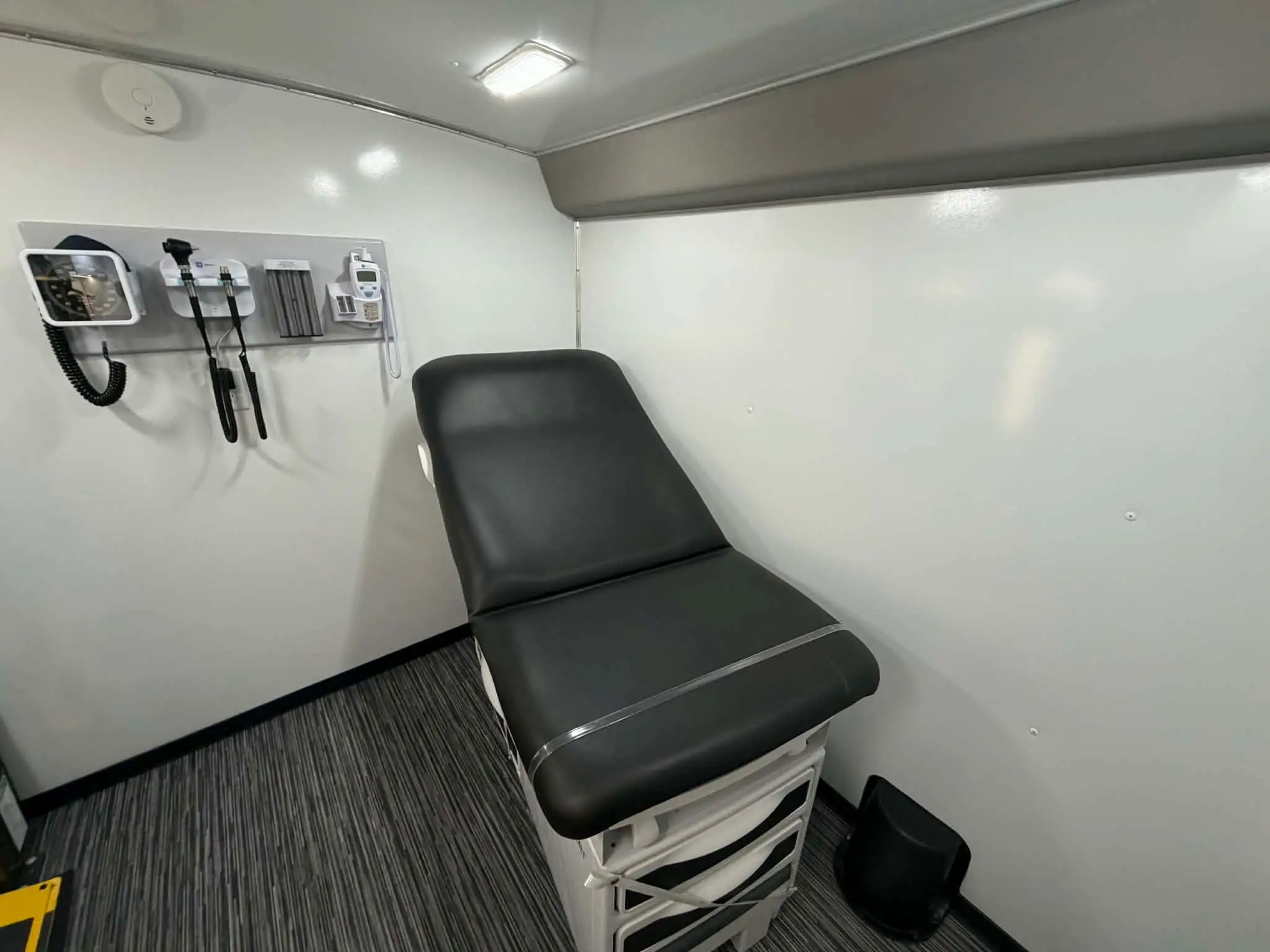

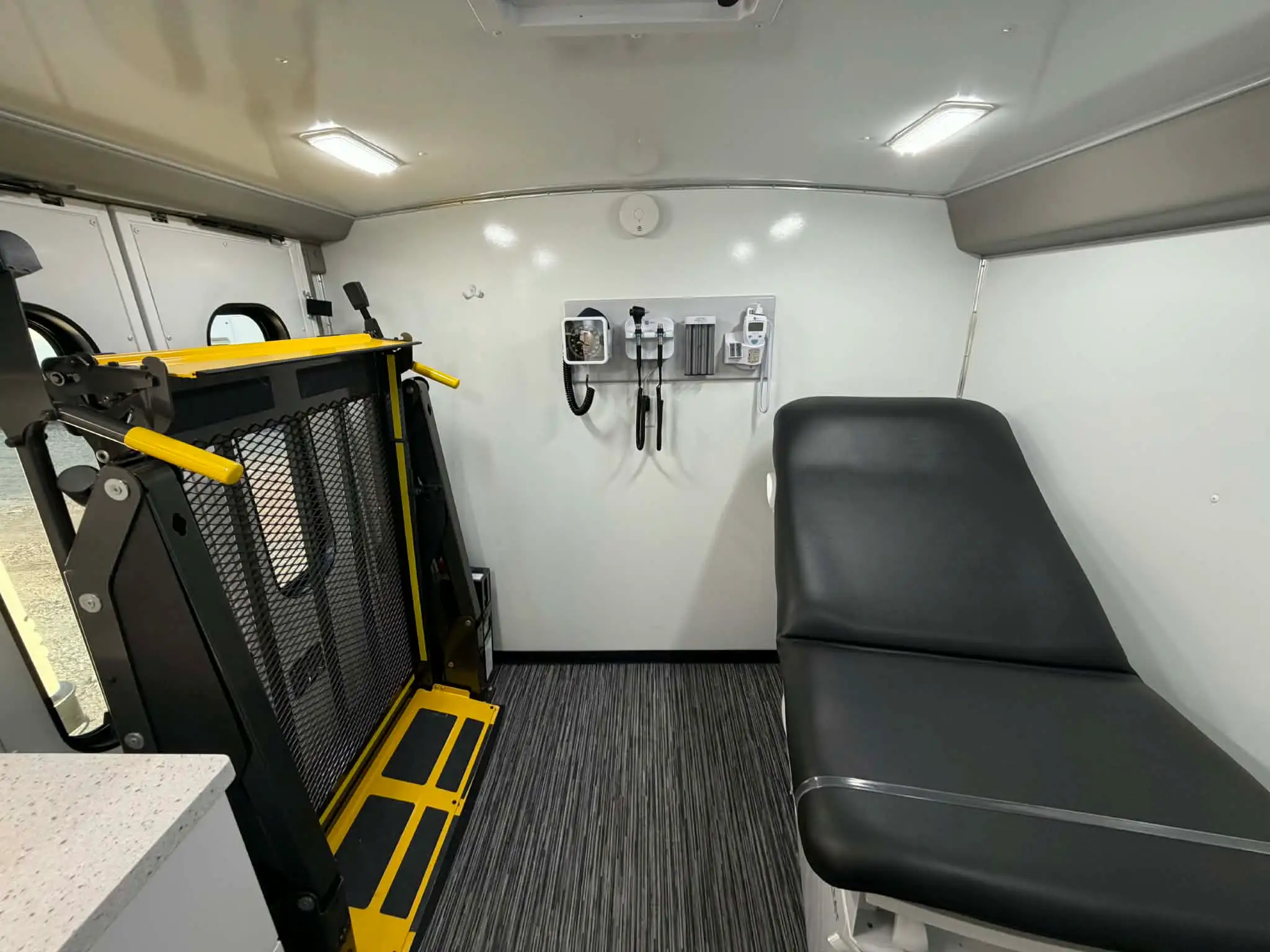

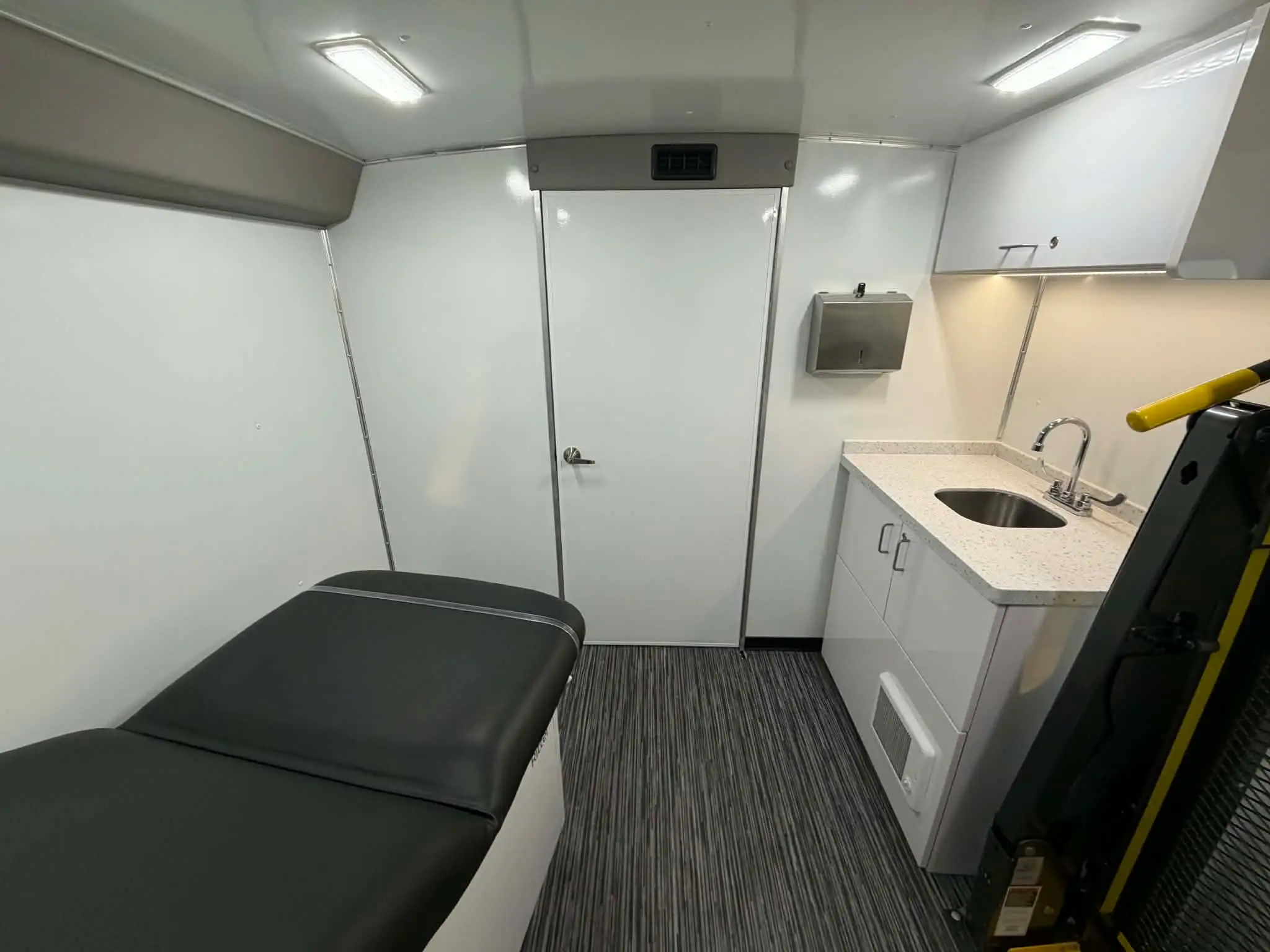

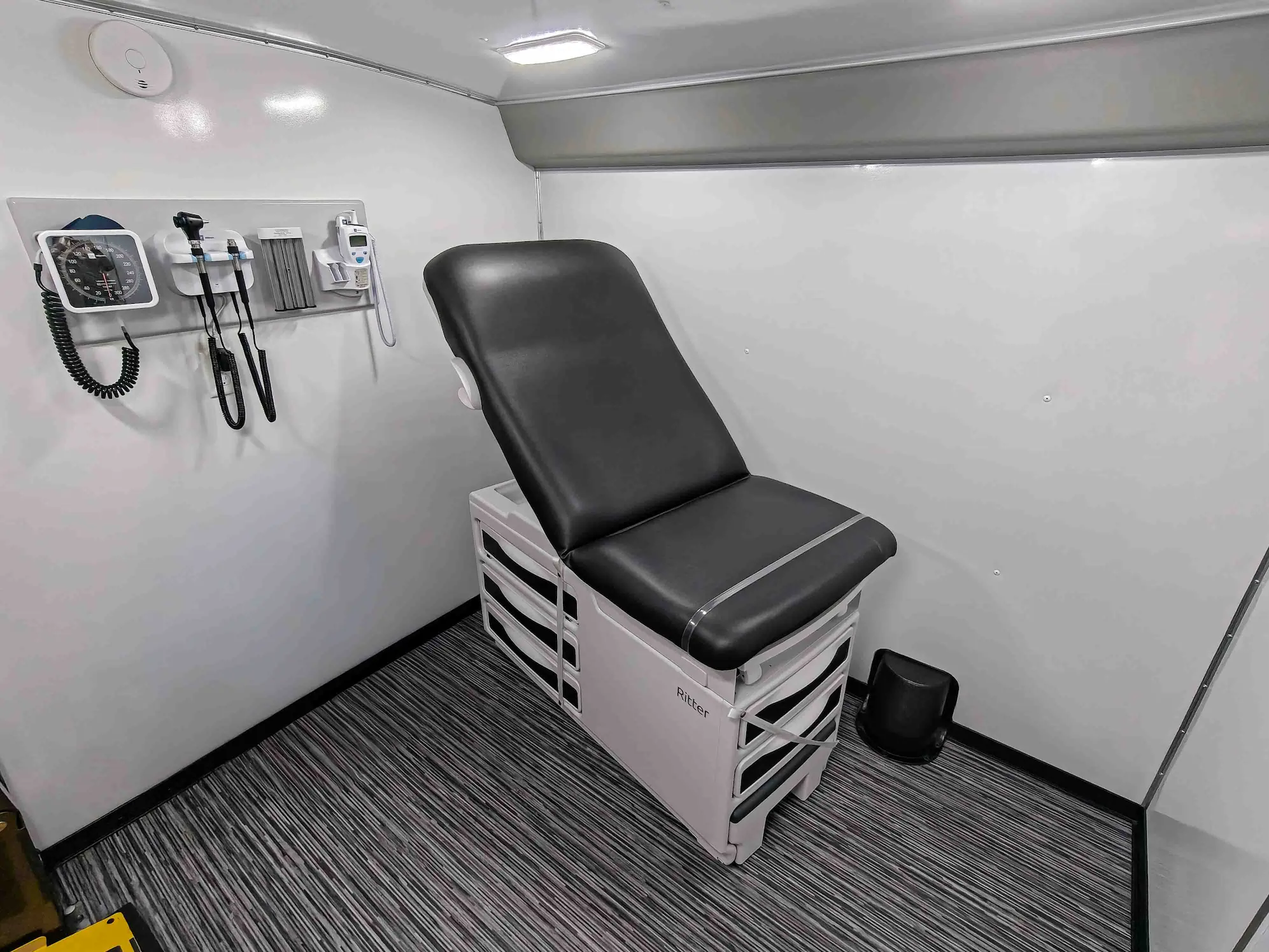

Wheelchair Accessible Exam Room

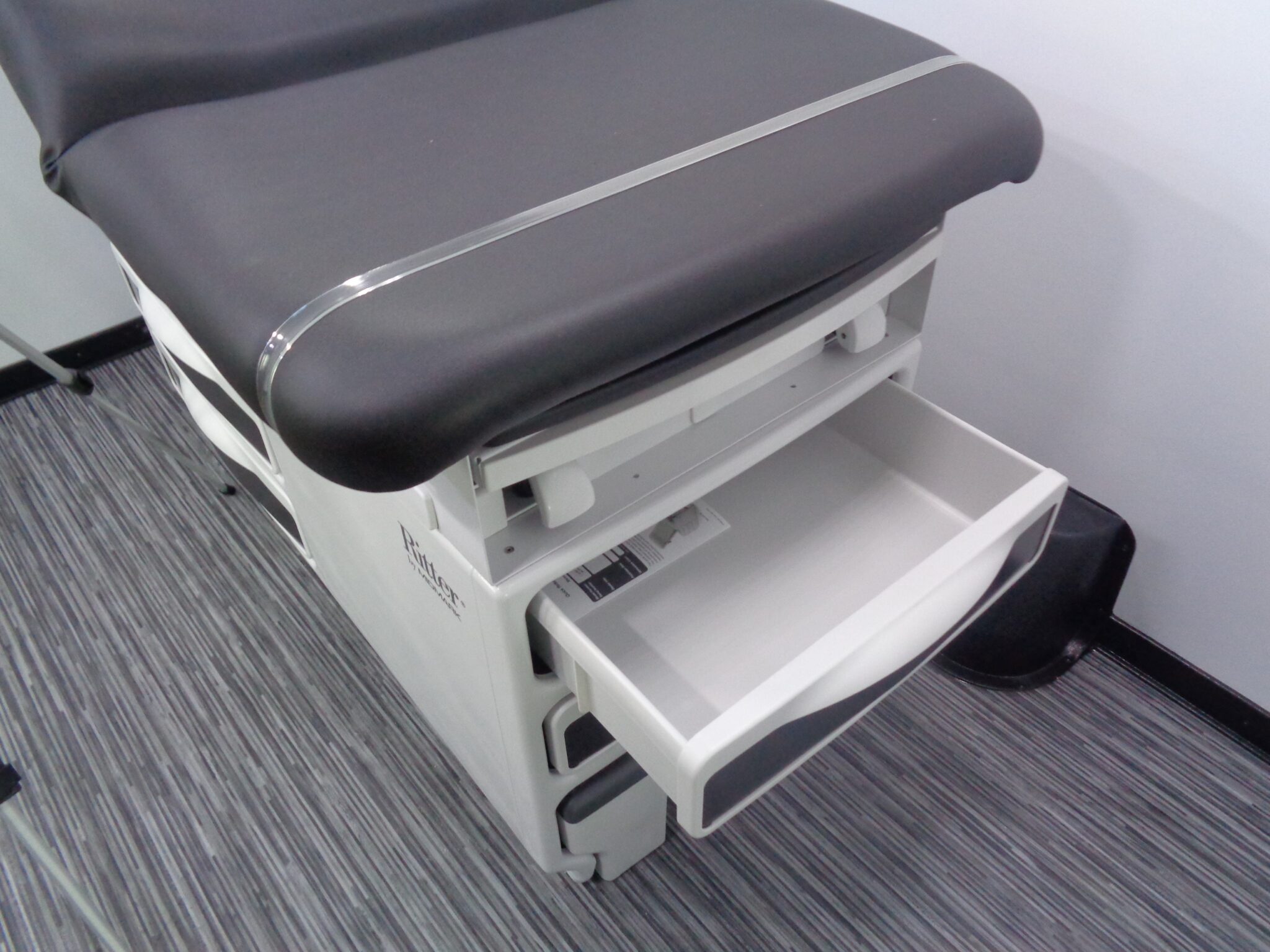

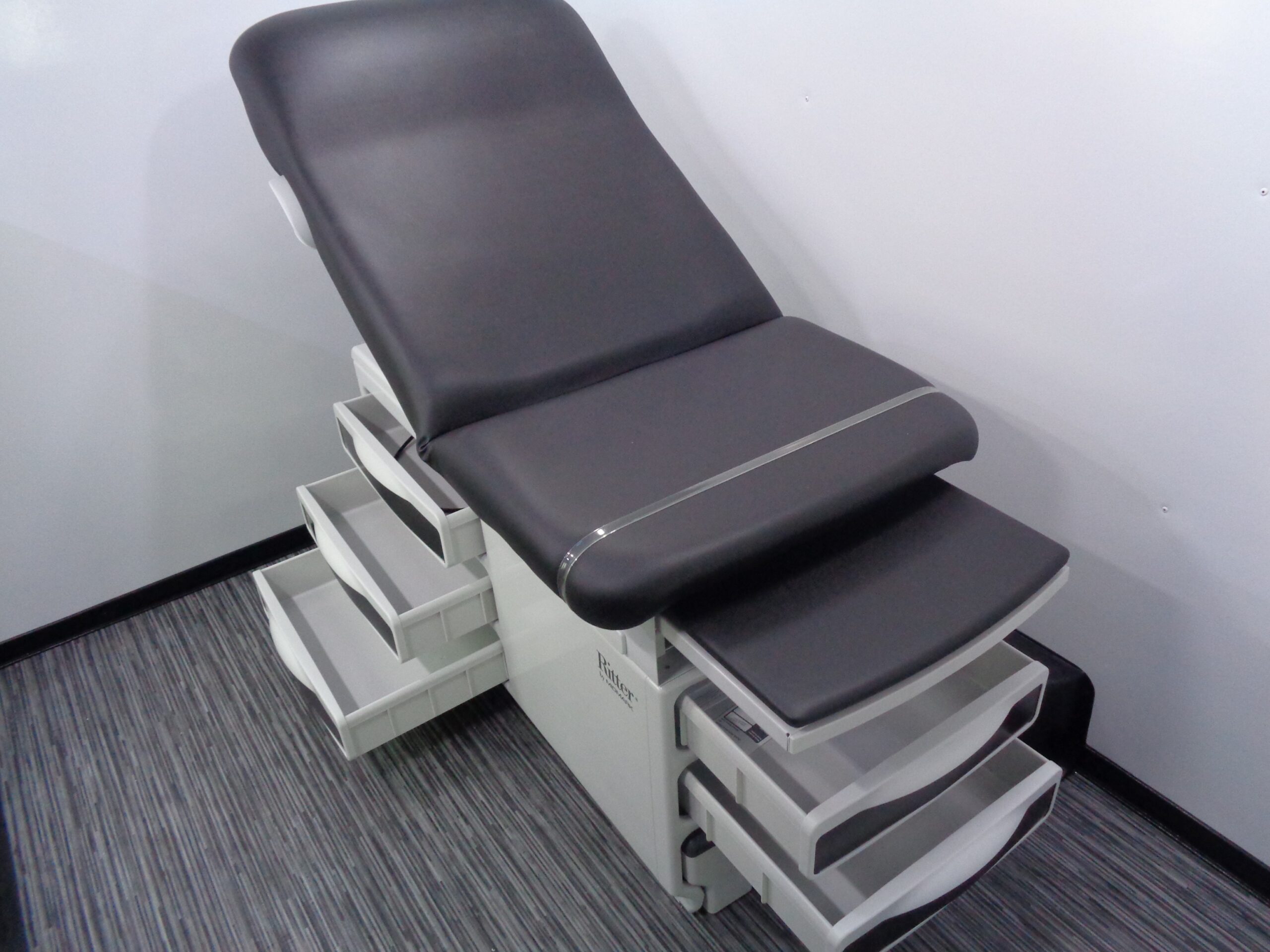

  • Ritter 204 Exam Table with Stirrups
  • Physicians Locking Upper and Lower Cabinets
  • Corian Countertop
  • Under Cabinet LED Lighting
  • Hand Sanitizer System

Common Options

  • Rear Exam Room Stainless Steel Sink With Heat
  • Power Awning with LED Scene Lighting
  • Vehicle Based WiFi Internet Access
  • Welch Allyn Diagnostic Board
  • Full Wrap Exterior Graphics Package
  • Vehicle Leveling System
  • Specimen Pass Thru
  • Delivery and On-Site Training Package
  • Additional Options Available

Customers have to say:

FAQ

Do we need a Commercial Driver License (CDL) to drive a TESCO Specialty Vehicle?

Our Vehicles do not require a special drivers license. They are designed to be under CDL requirements of a Gross Vehicle Weight Rating of 26,000lbs or less.

Are your vehicles commercial grade?

Our vehicles are NEVER built from retrofitted RV’s which are not designed to hold up to the operational use of medical clinics. Each TESCO Specialty vehicle is custom built for its commercial application, with steel body construction directly to the chassis. We welcome the opportunity to show you the difference and review with you our manufacturing process.

Where do you ship your vehicles?

We ship our vehicles to every state in the US and have the capabilities to ship internationally.

Do you offer Warranty Coverage?

Yes. Each vehicle comes with a 3 to 5-year warranty for the chassis and body. Please contact us to learn more about our various warranty coverages.

What do I need to consider when starting a mobile unit program?

There are several key strategic areas to consider. At TESCO we offer a free consultation with our Director of Specialty. Our director has a clinical background and years of healthcare service line development, including real life experience with deploying a mobile unit program. We will be able to offer guidance on market research, setting a budget, design, and other strategic operational considerations. Please feel free to schedule appointment here.

How do we power our mobile unit?

Every unit comes with a commercial grade generator and shore power capabilities. Shore power can provide the unit access to power at your parking locations to run your mobile unit electrical systems without use of generator. Please schedule a call with us to learn more about our custom electrical solutions.

What training and support is offered?

We offer onsite training at delivery of your unit, and ongoing virtual training support. We also offer preventative maintenance tools for your unit.

Do you offer Financing?

We have unique leasing programs. Please schedule a meeting with us to learn more about our financing and leasing options.

Can we trade in our used mobile unit?

We offer a robust used unit program. Please schedule a call with us to discuss your needs and current used mobile unit.
