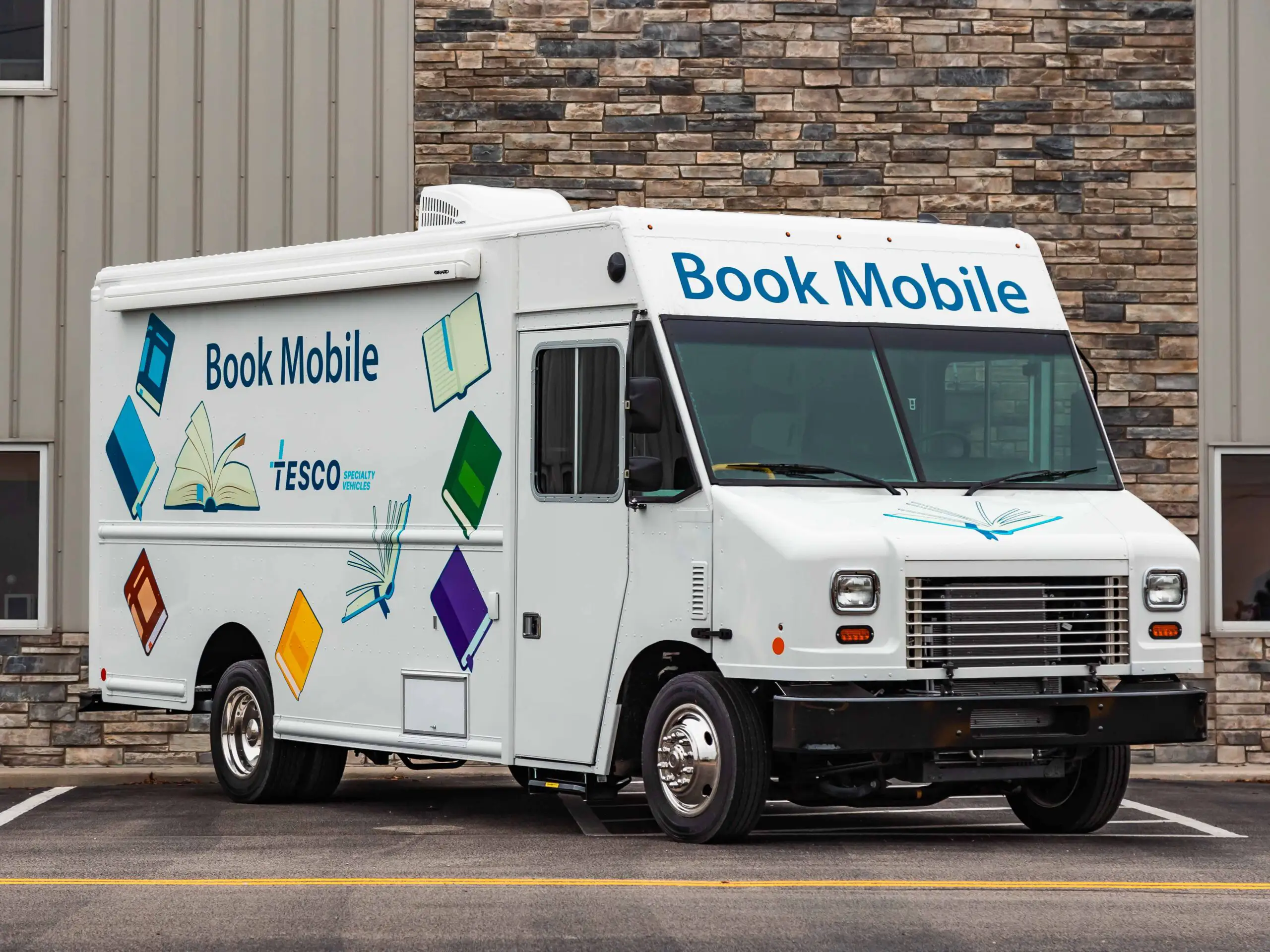

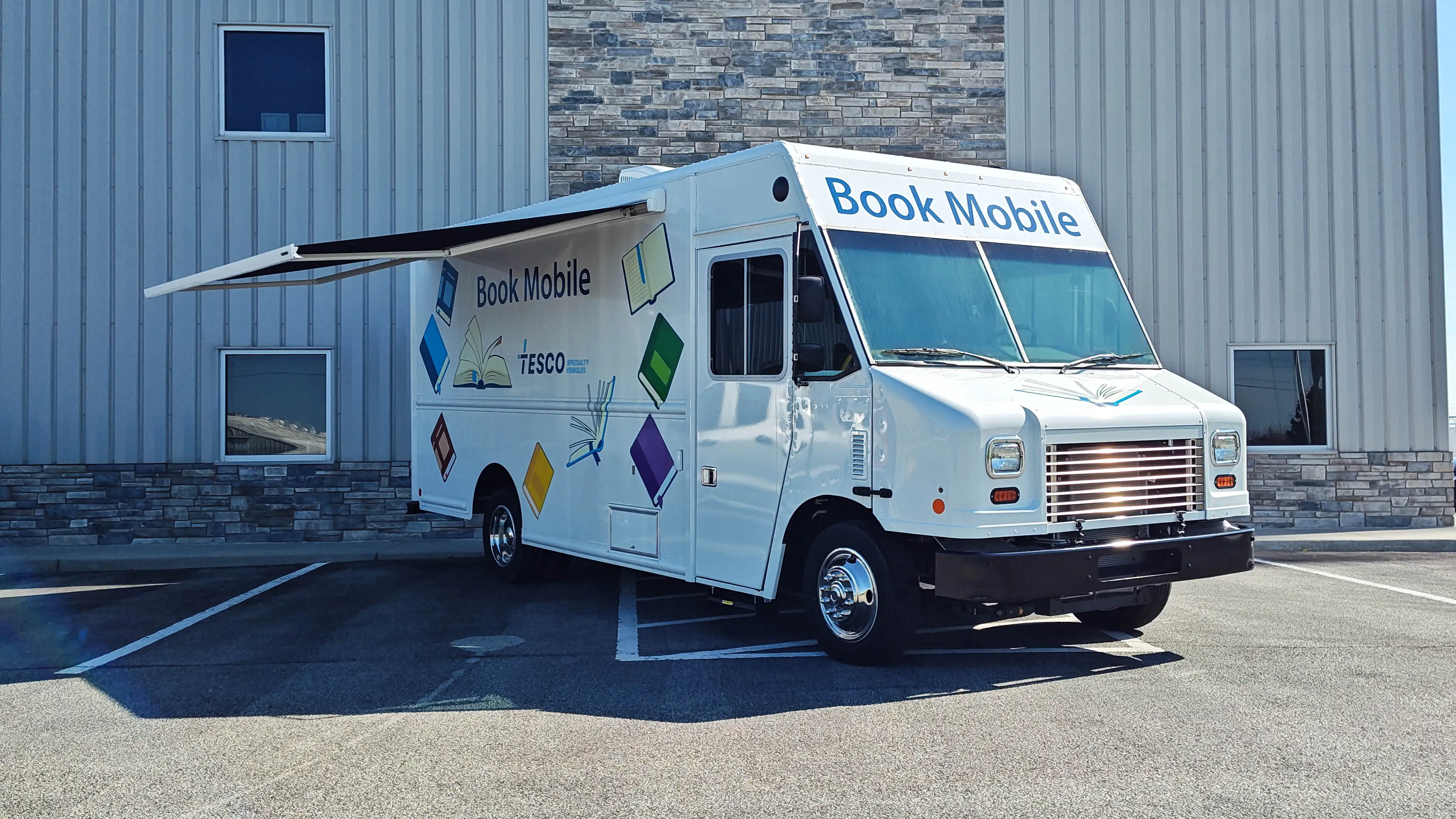

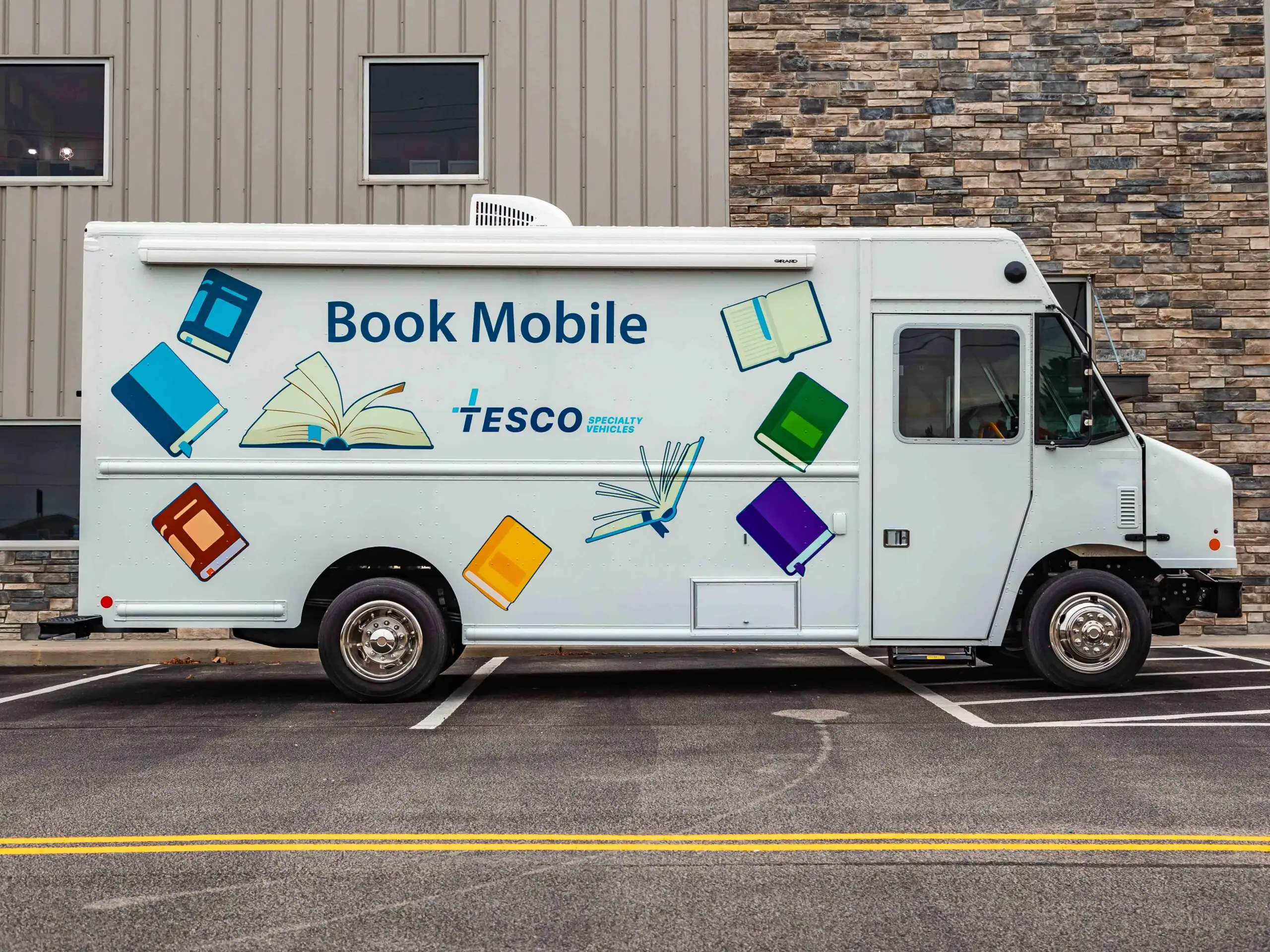

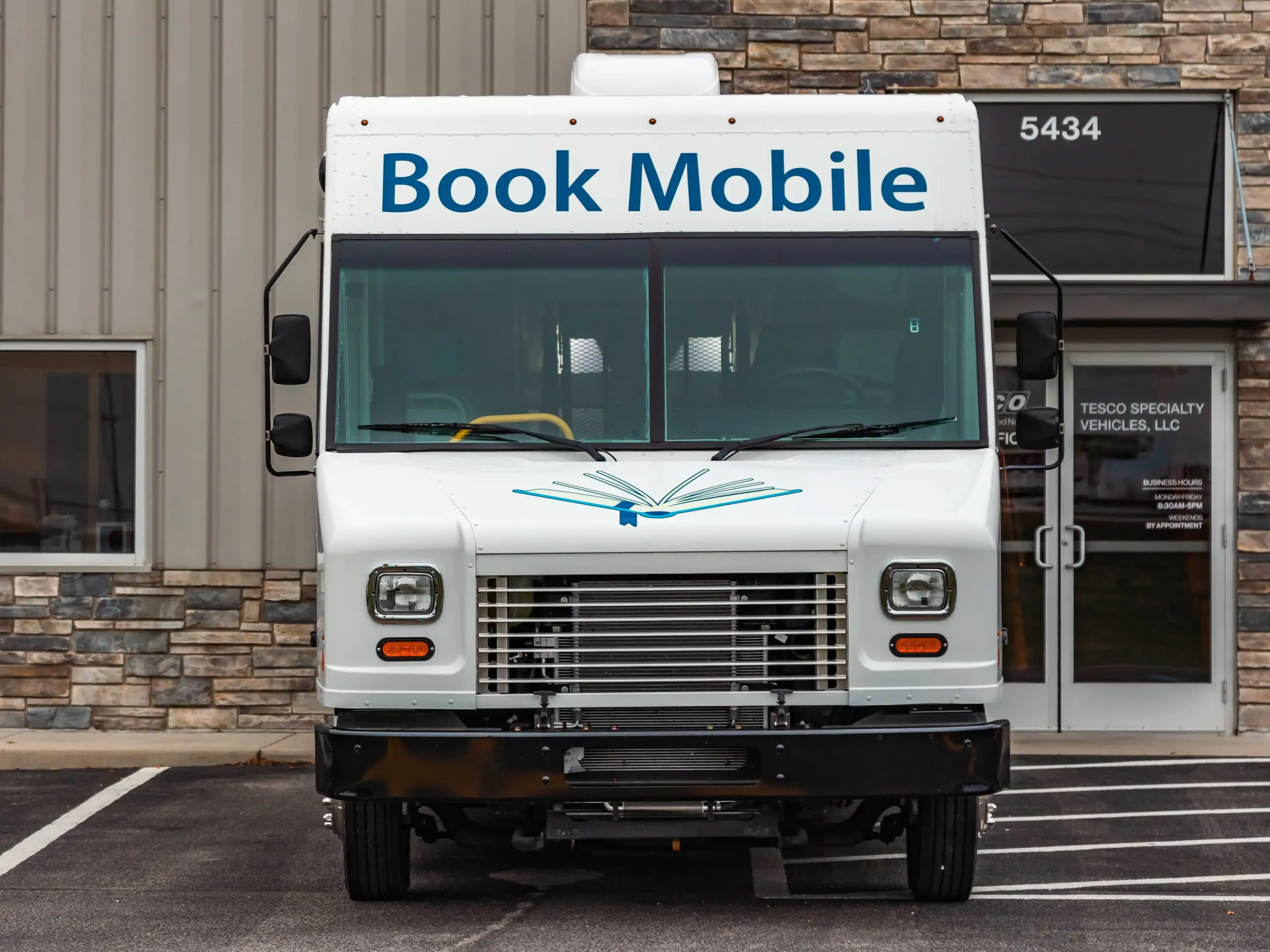

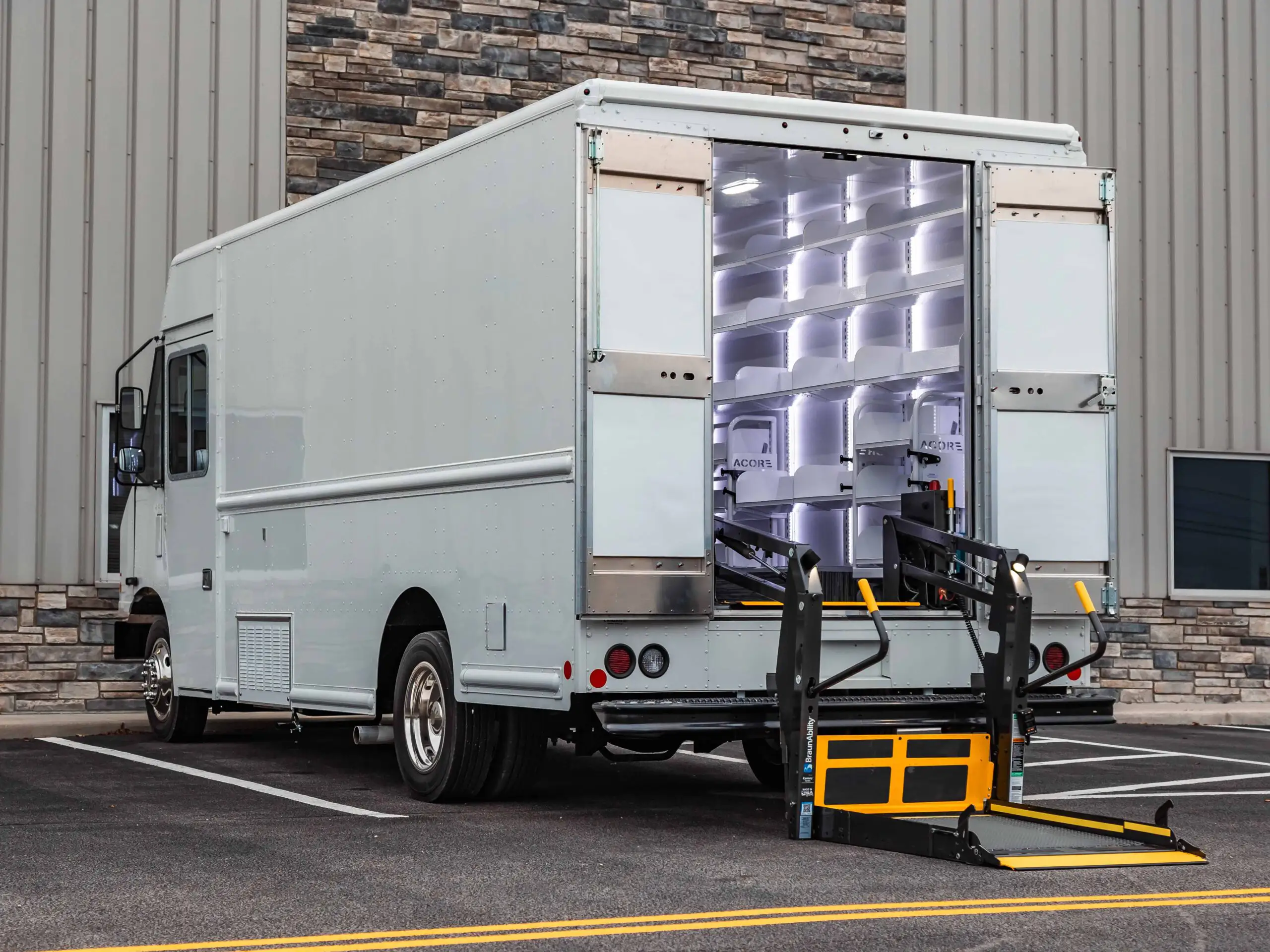

25ft One Room Bookmobile with Wheelchair Lift
Group G-2

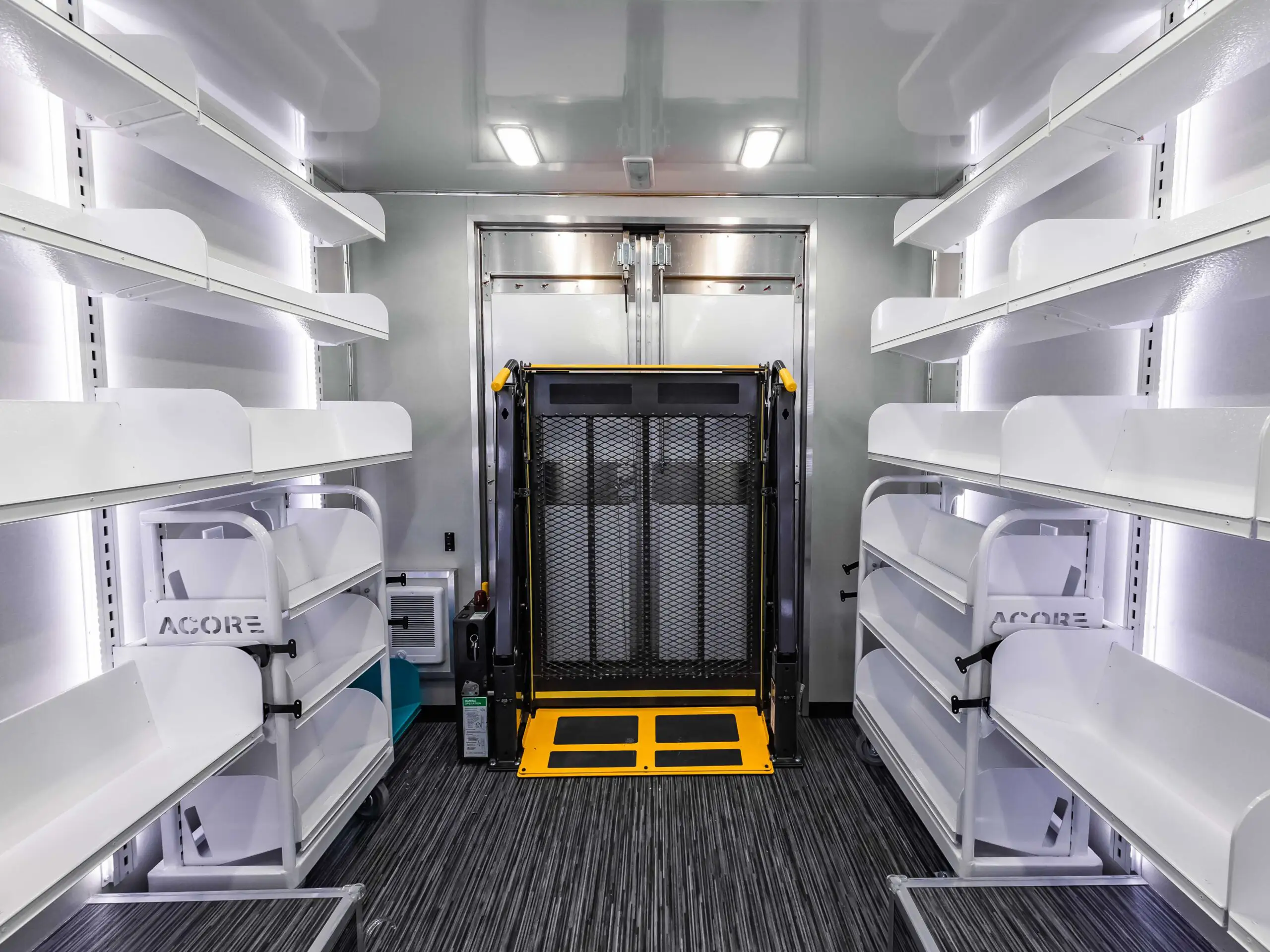

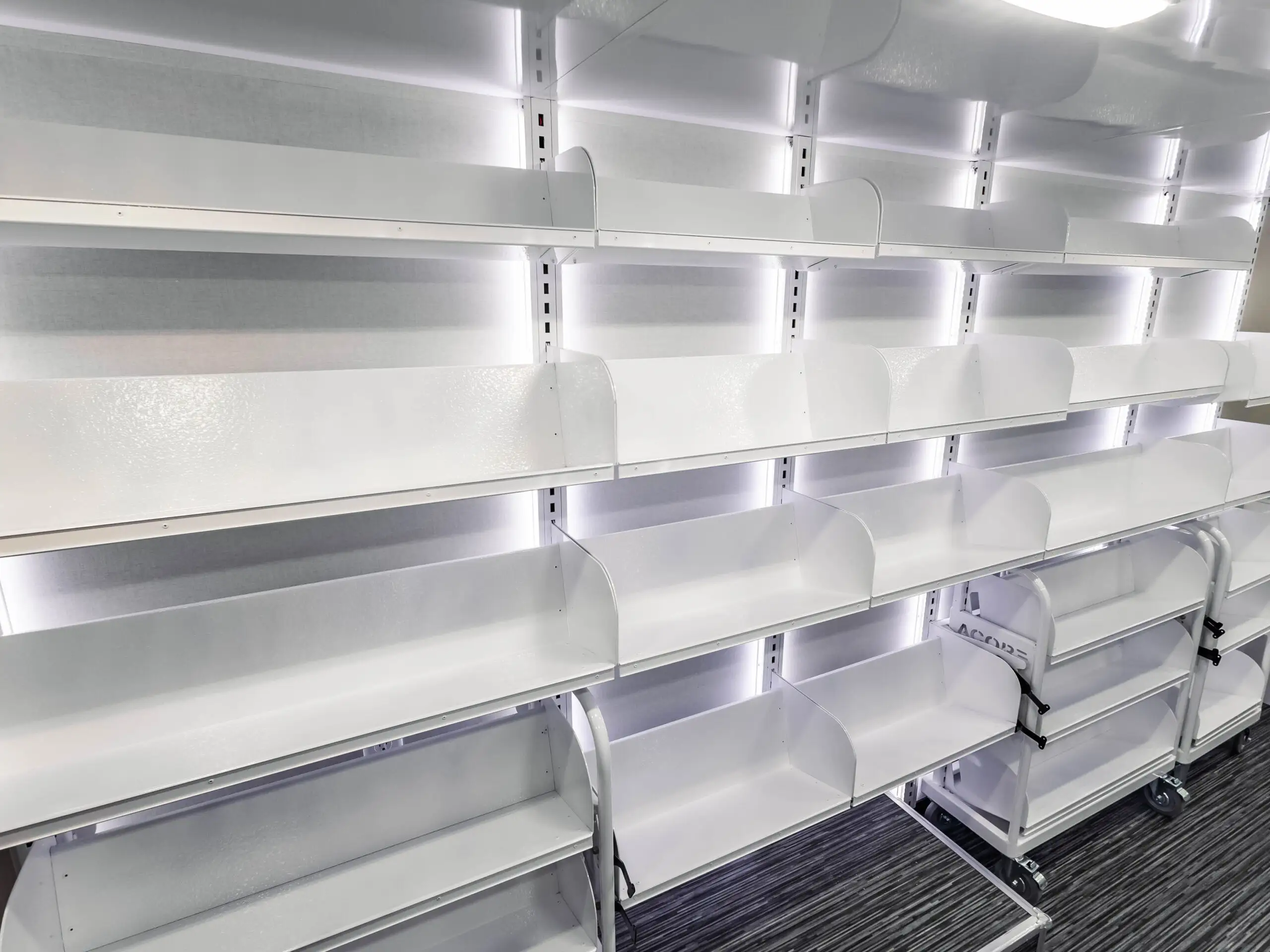

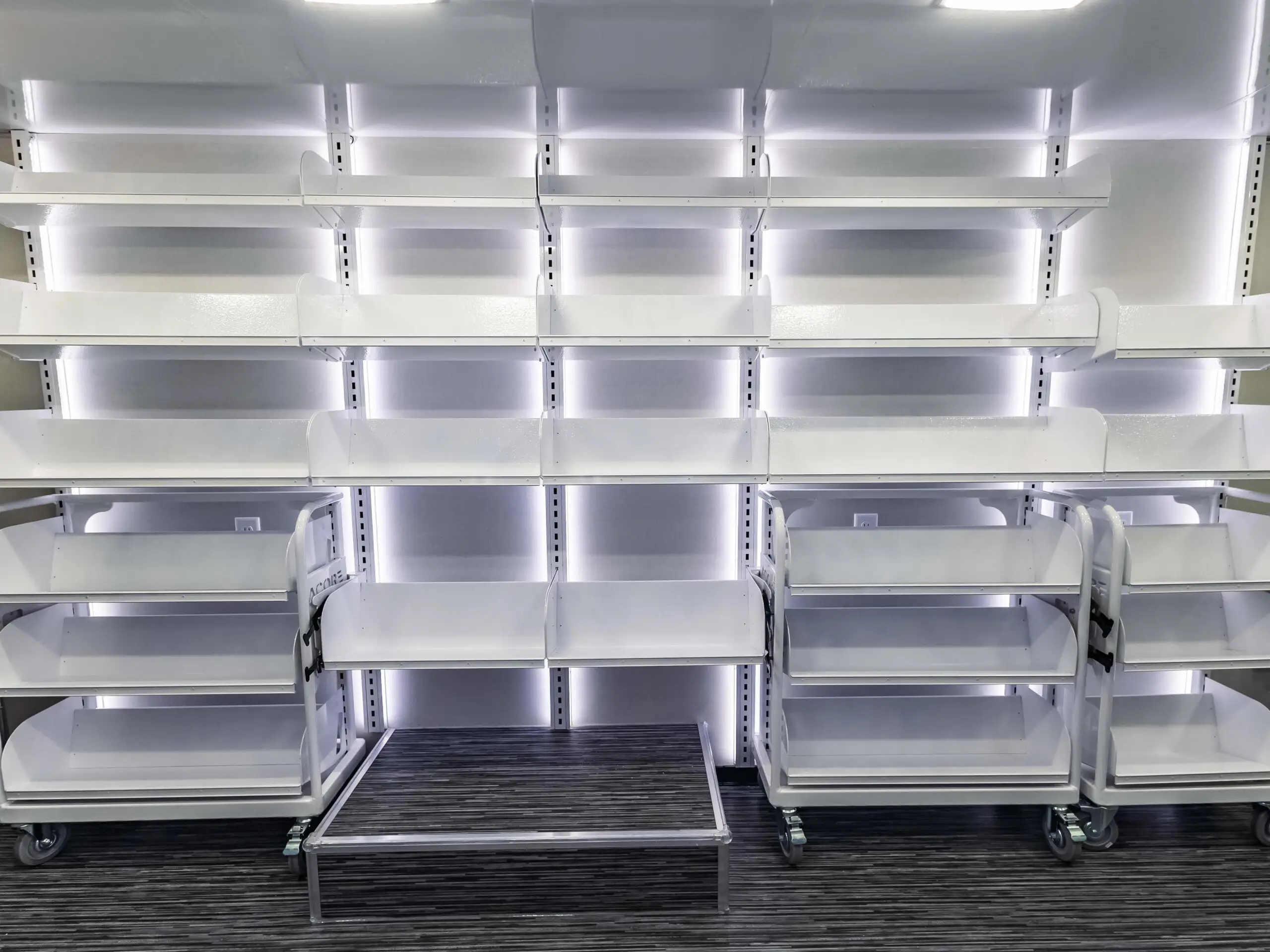

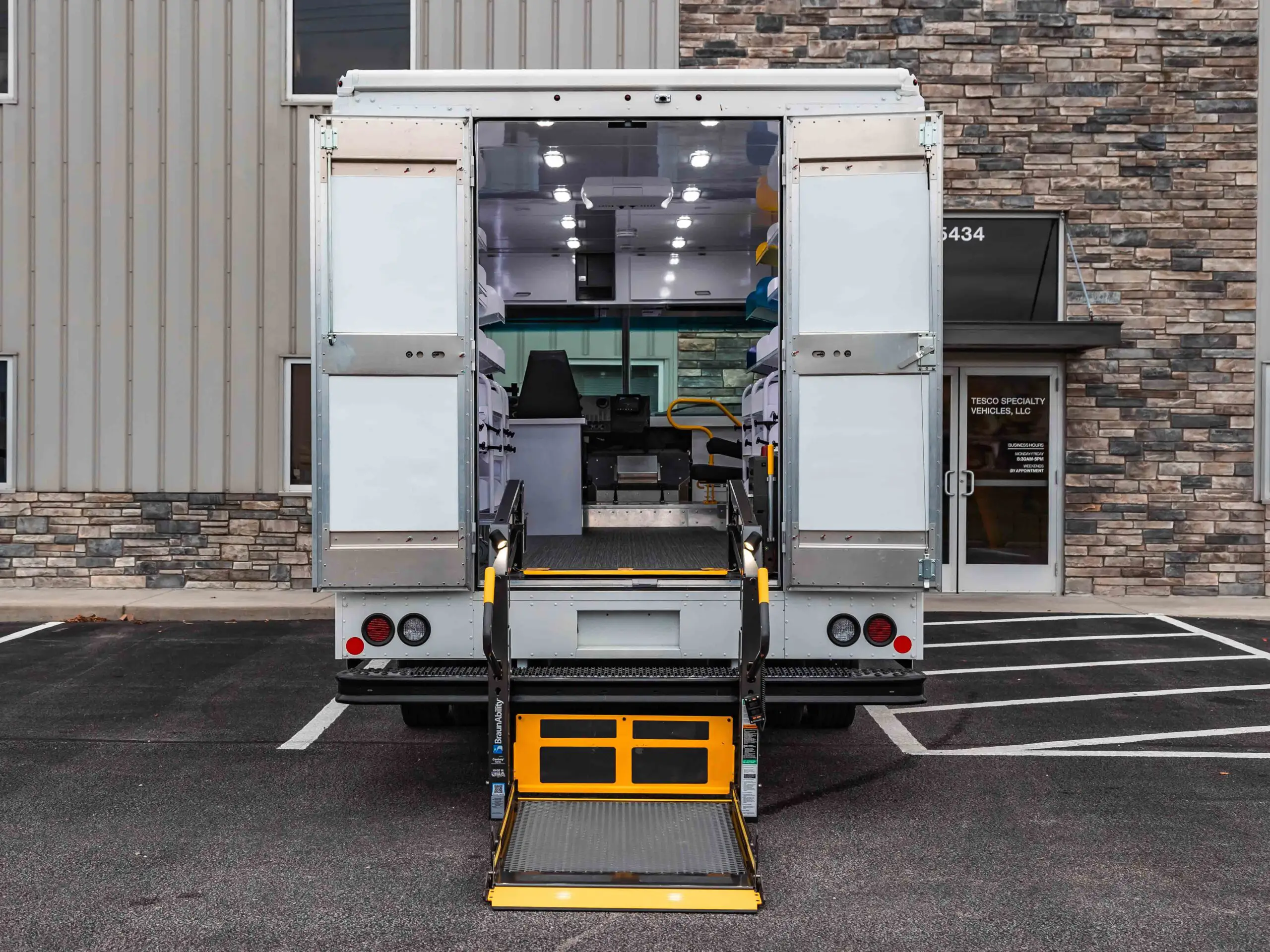

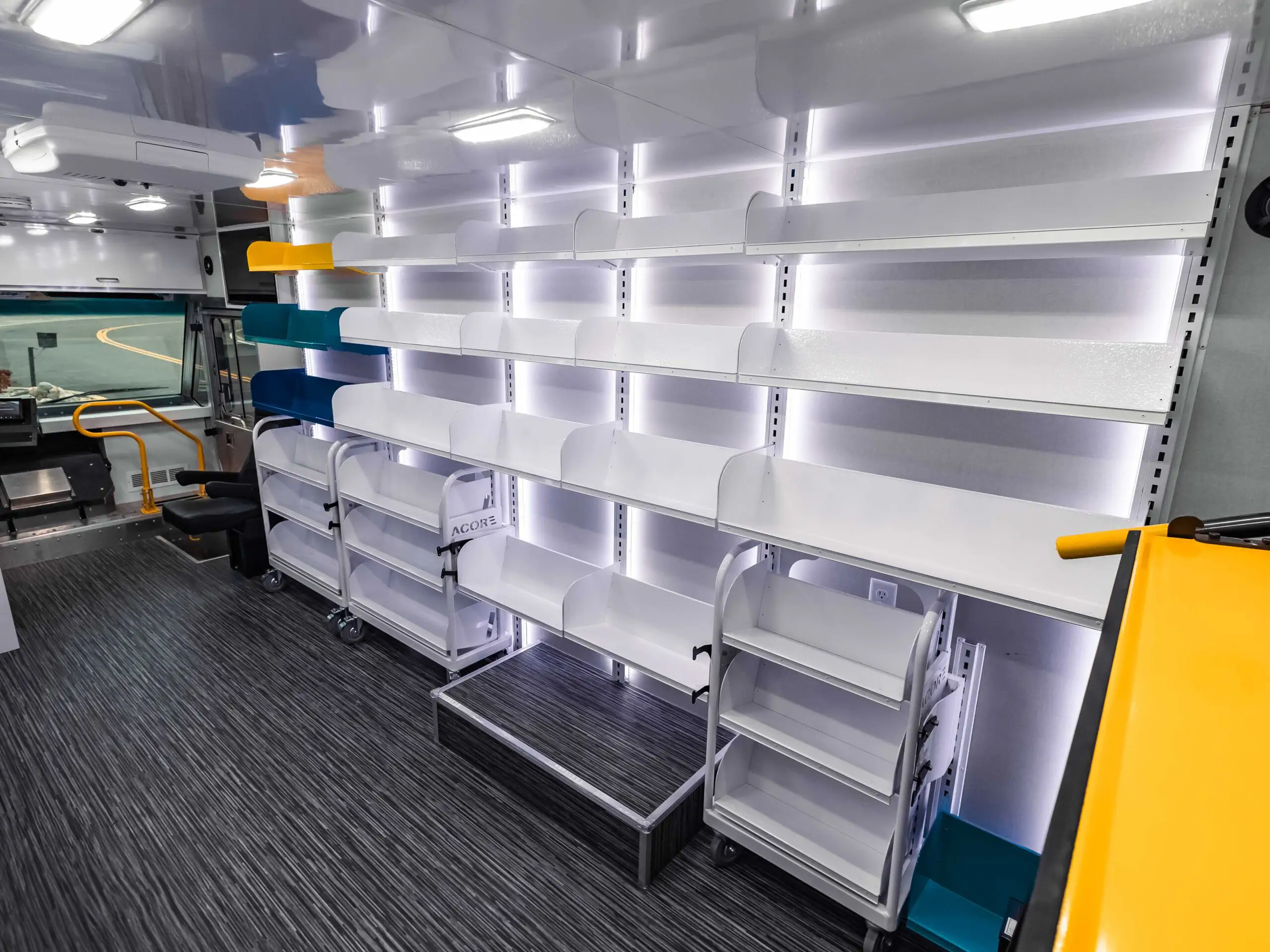

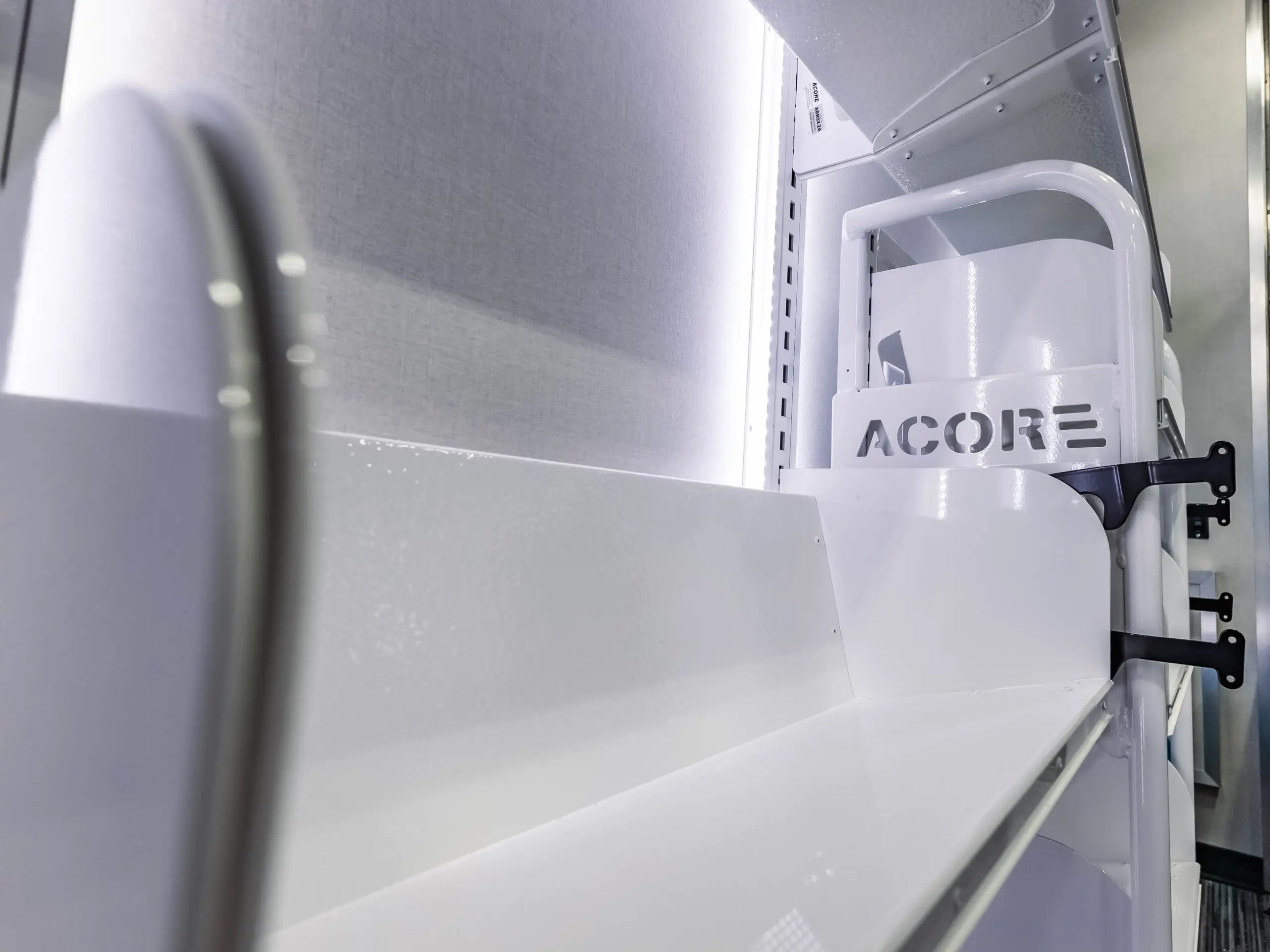

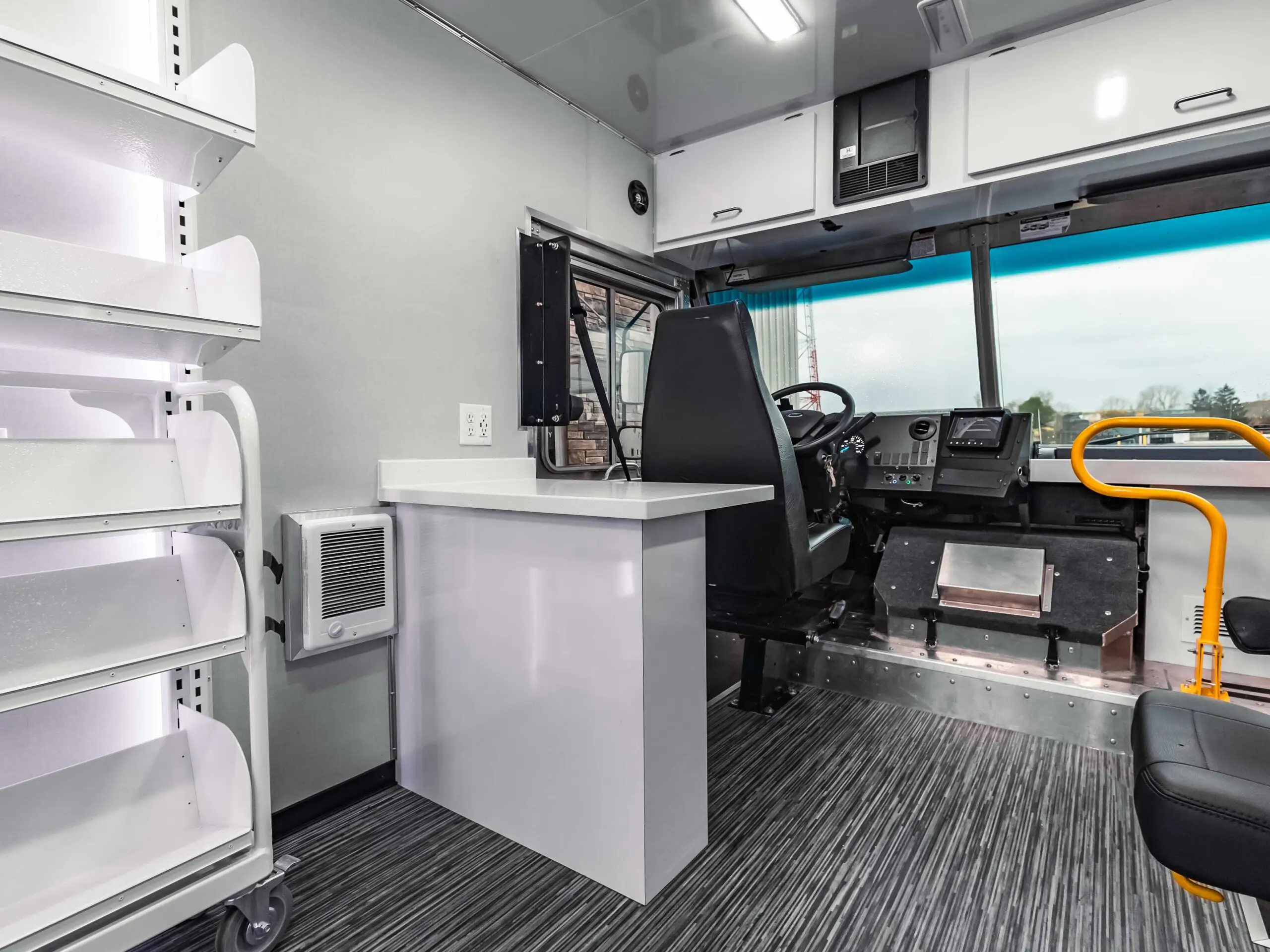

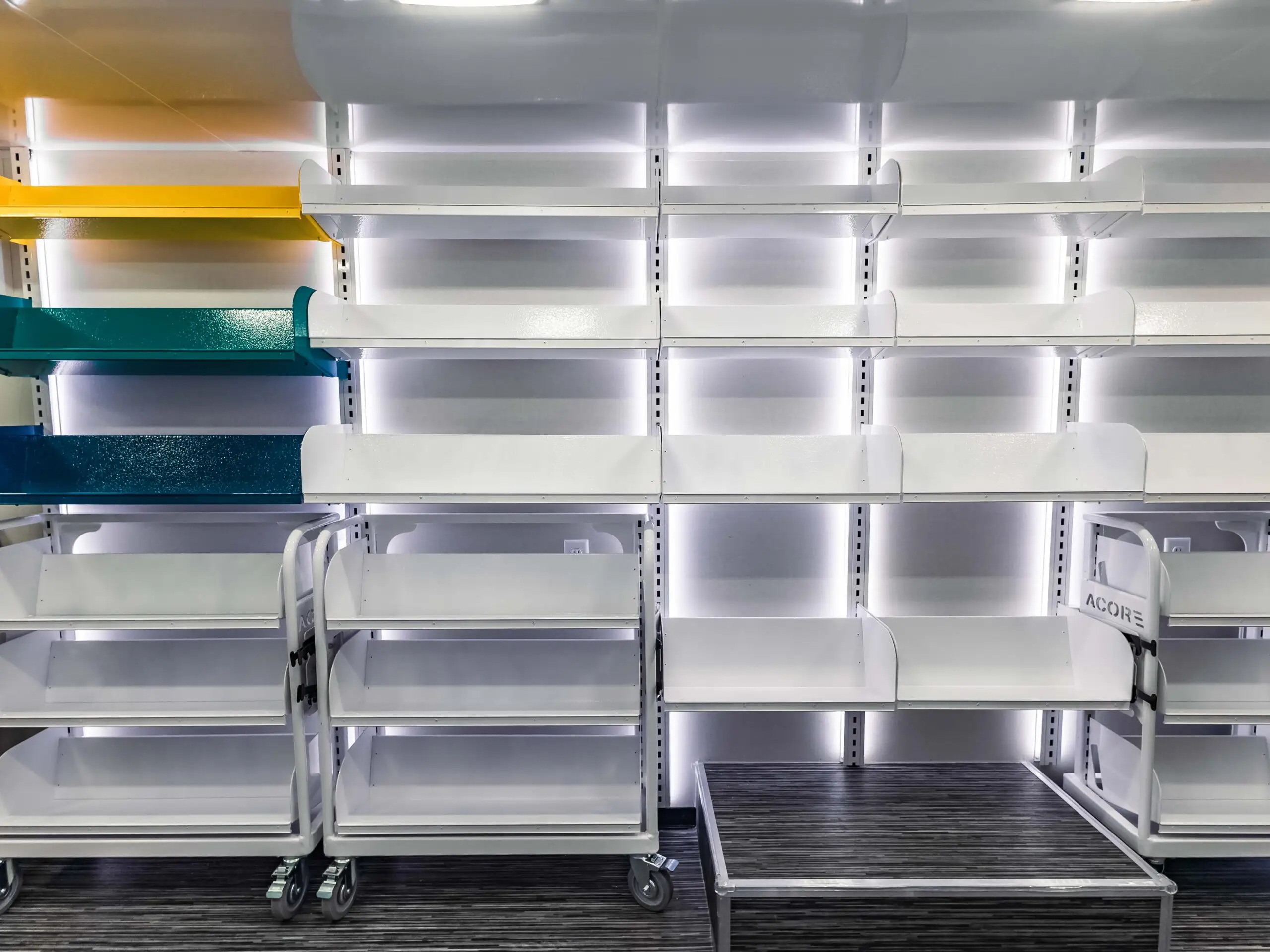

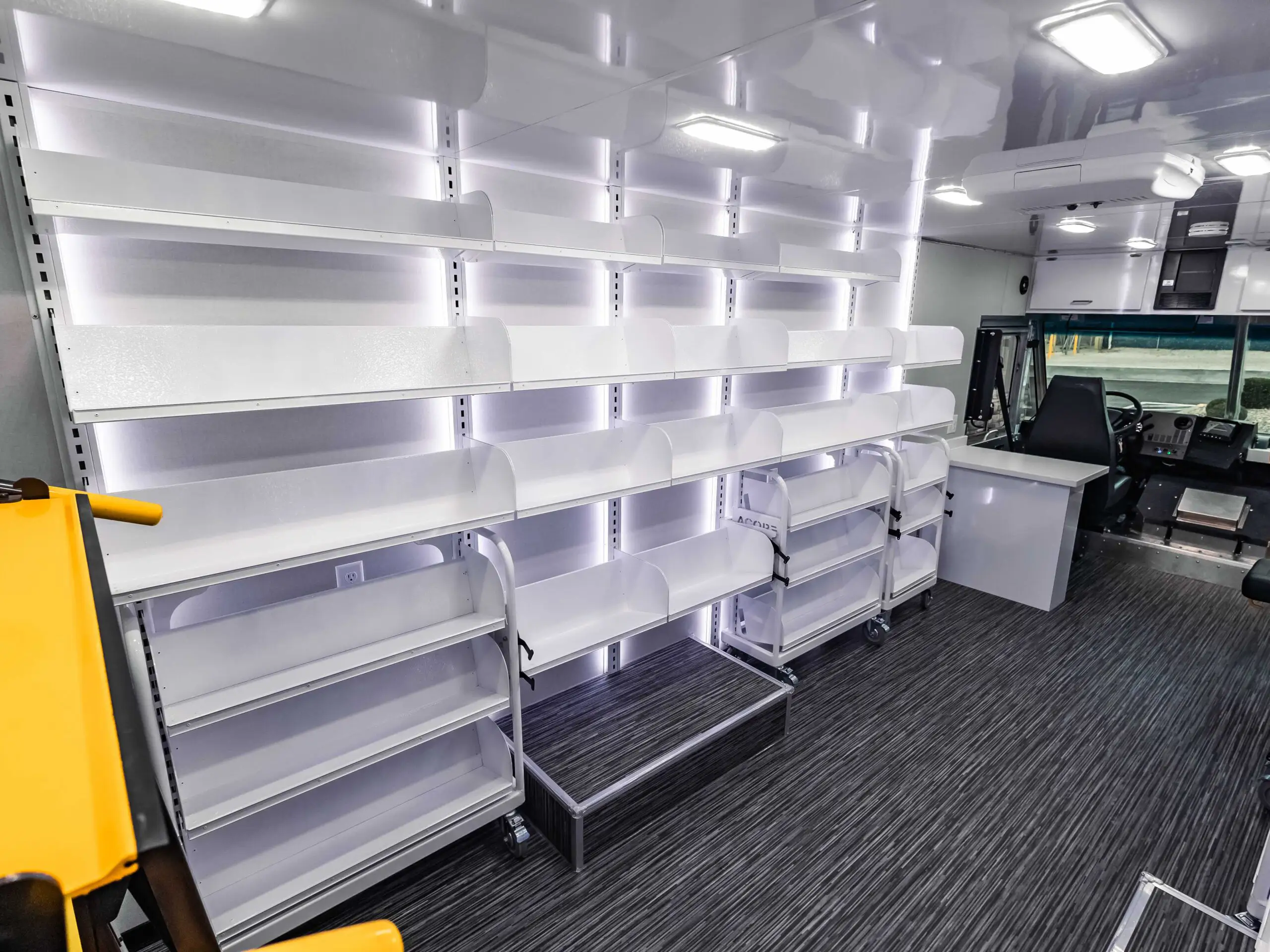

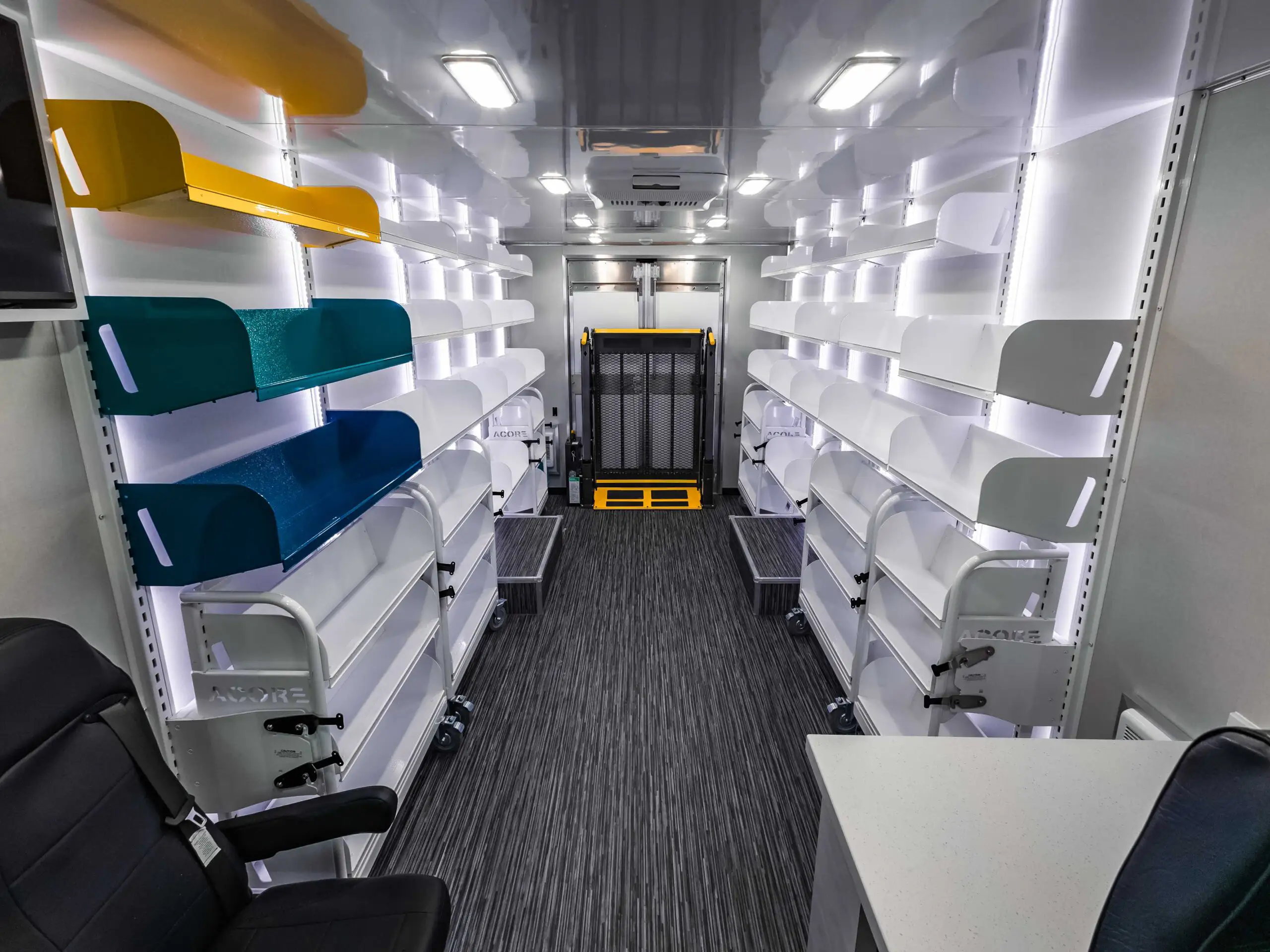

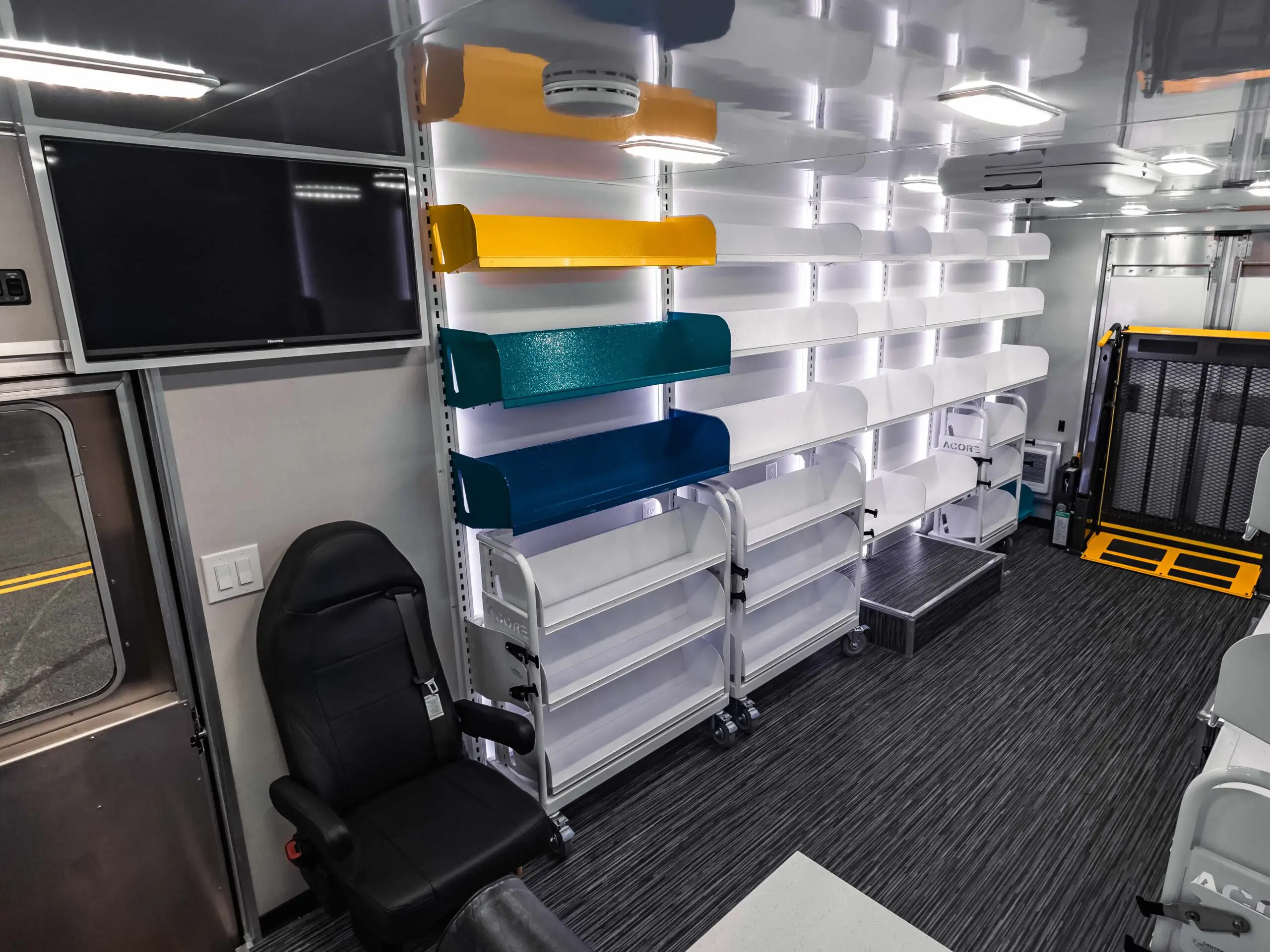

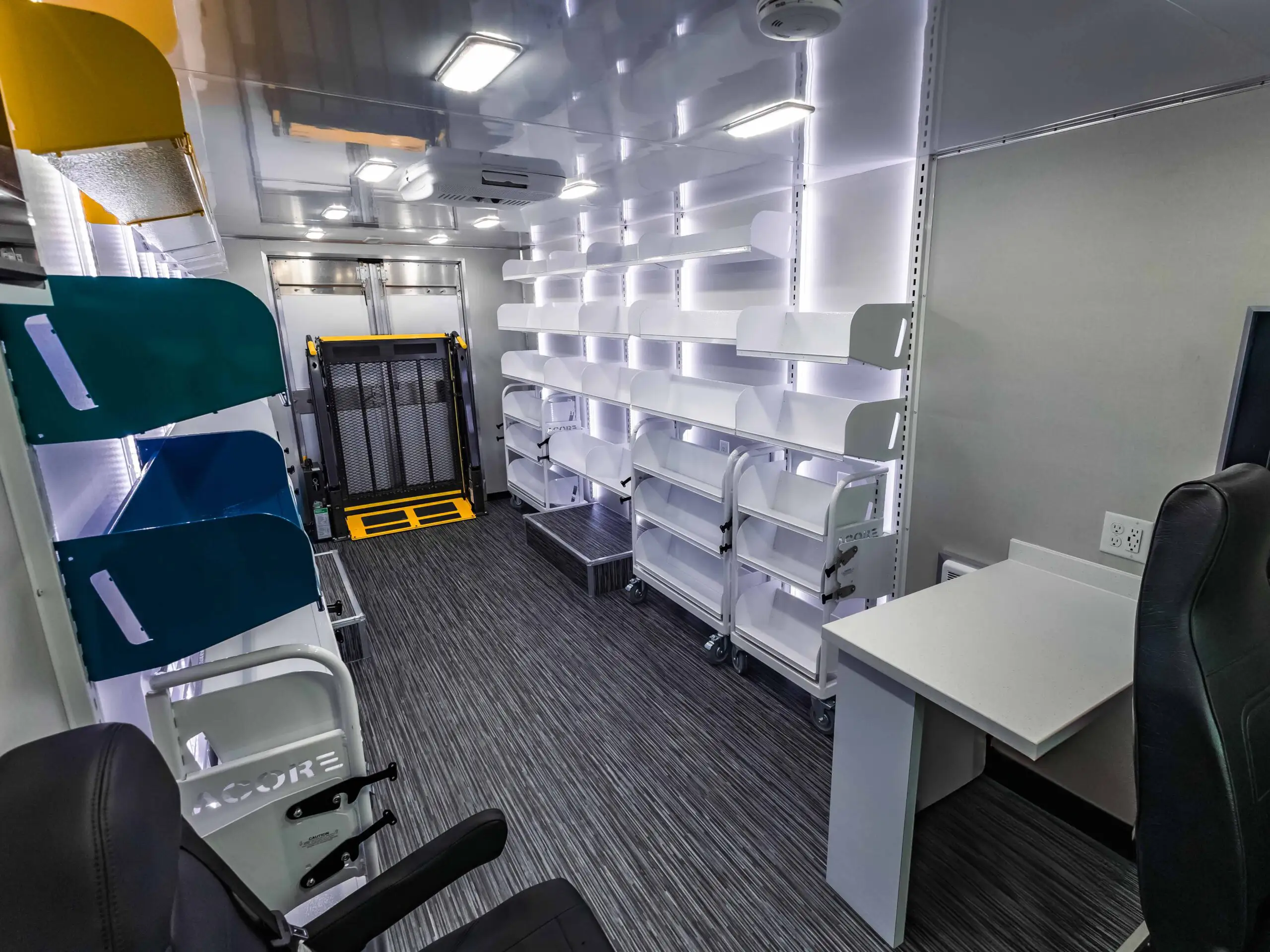

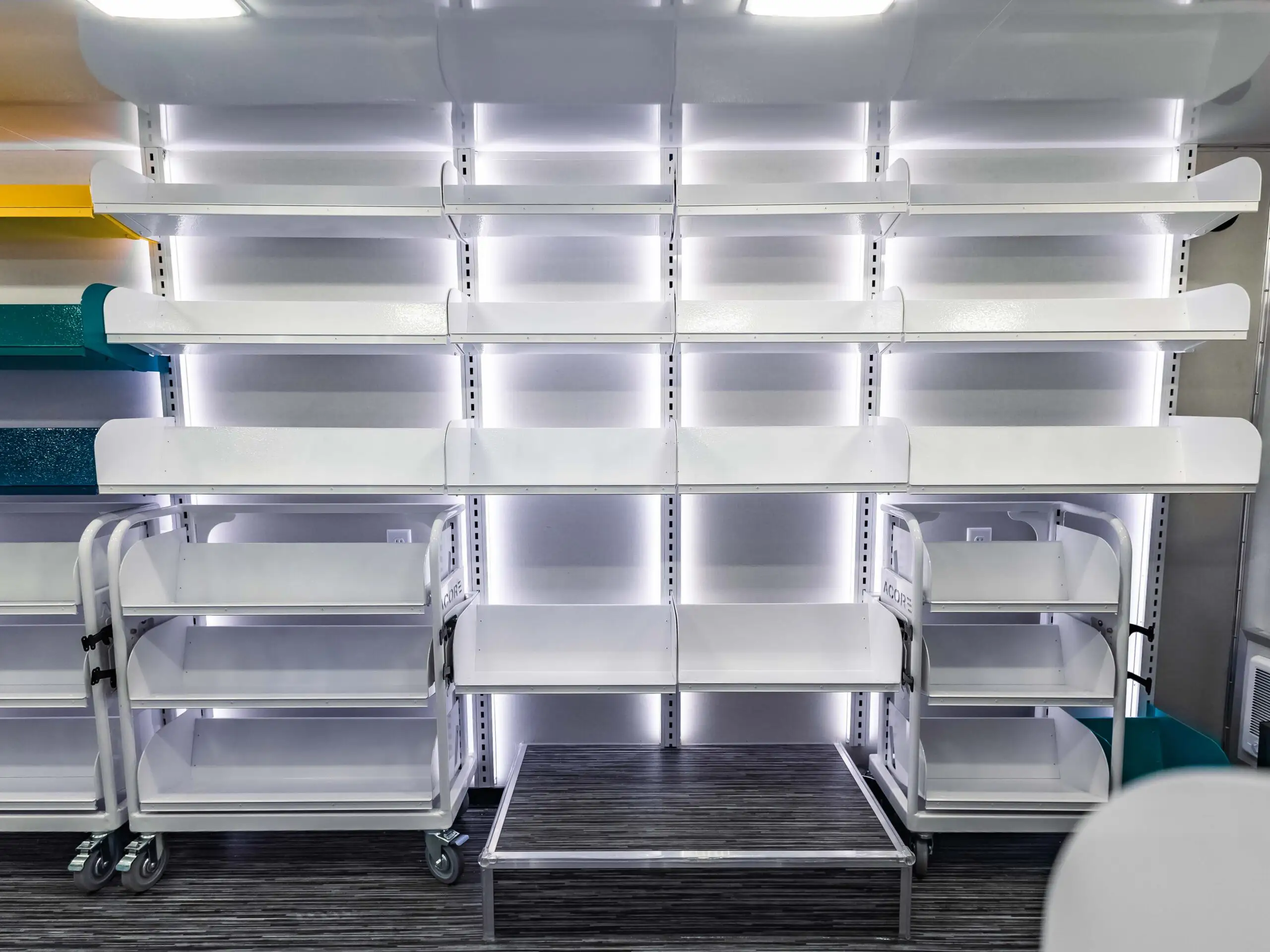

The new Ford F-59 is a mid-sized, bookmobile unit with plenty of shelf space and room to move around. It’s easy to drive and comes with standard features like an Acore book carts and shelving, check-in desk, custom cabinetry, flip seat, and a Braun wheelchair lift. The model includes a roomy interior with plenty of shelf space for book inventory. The Ford F-59 is a versatile and reliable option for any customer application.
Check Floor Plan
Floorplan
Vehicle Description
Chassis Specs
- Ford F59 WIV Chassis
- 178" Wheelbase
- Gas Engine F59 7.3l V8
- Automatic Transmission
- Dual Rear Wheels
- 19.5" Tires
- 40 Gal Rear Center Mount F59
- 19,500 GVWR
- Chas Supplied Fact Ac Prep Kit F59
- Heater Hose Ford
- Std Heater Hose

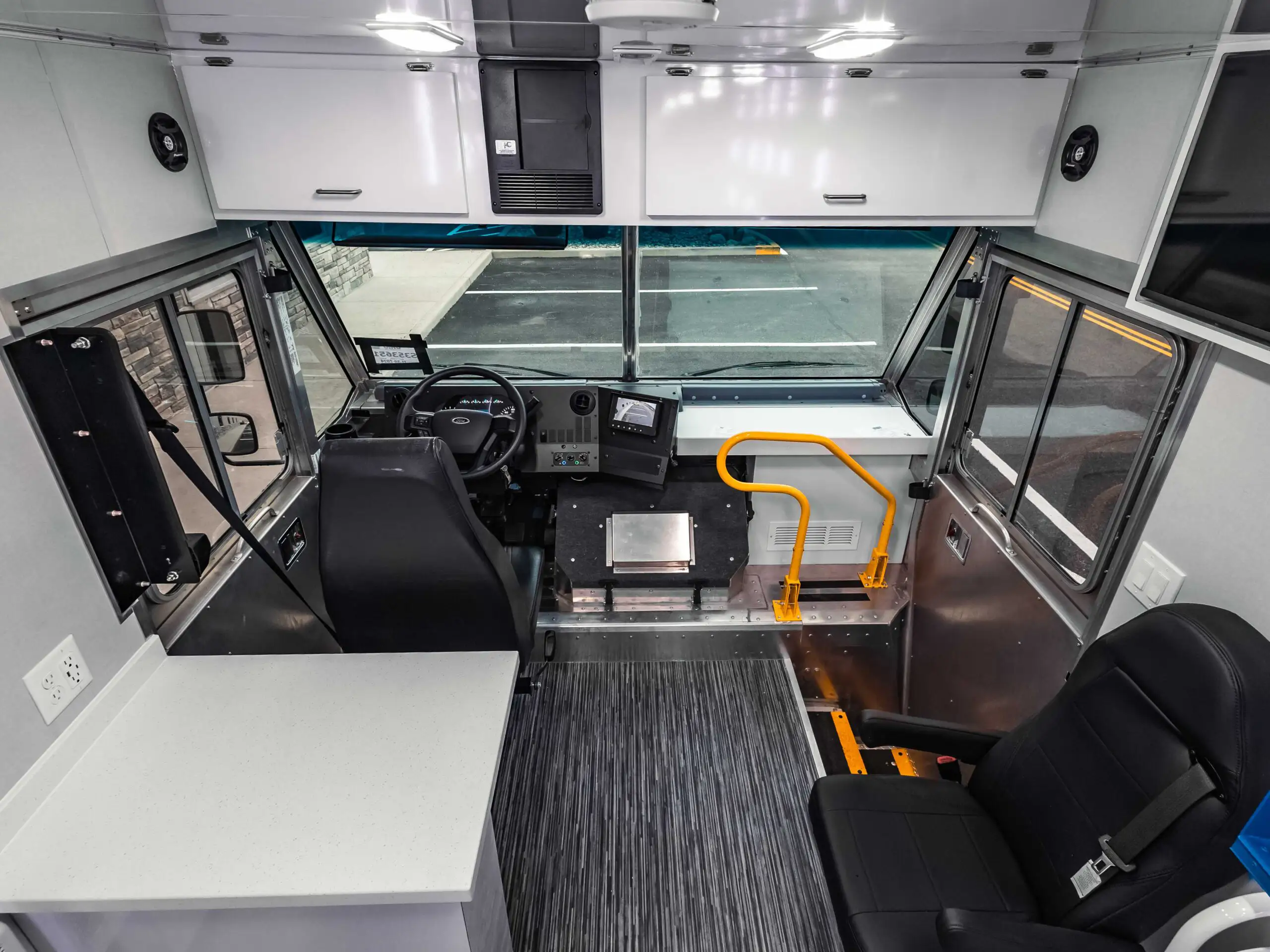

Cab Door
- Sedan Door Lh
- Sedan Door Rh
- Slider Window Lh Silver
- Slider Window Rh Silver
- 4" Lowered Stepwell Lh
- 4" Lowered Stepwell Rh
- Lh Intermediate Step
- Sedan Door Lock Selections
- Sedan Door Rotary Latch
Rear Structure

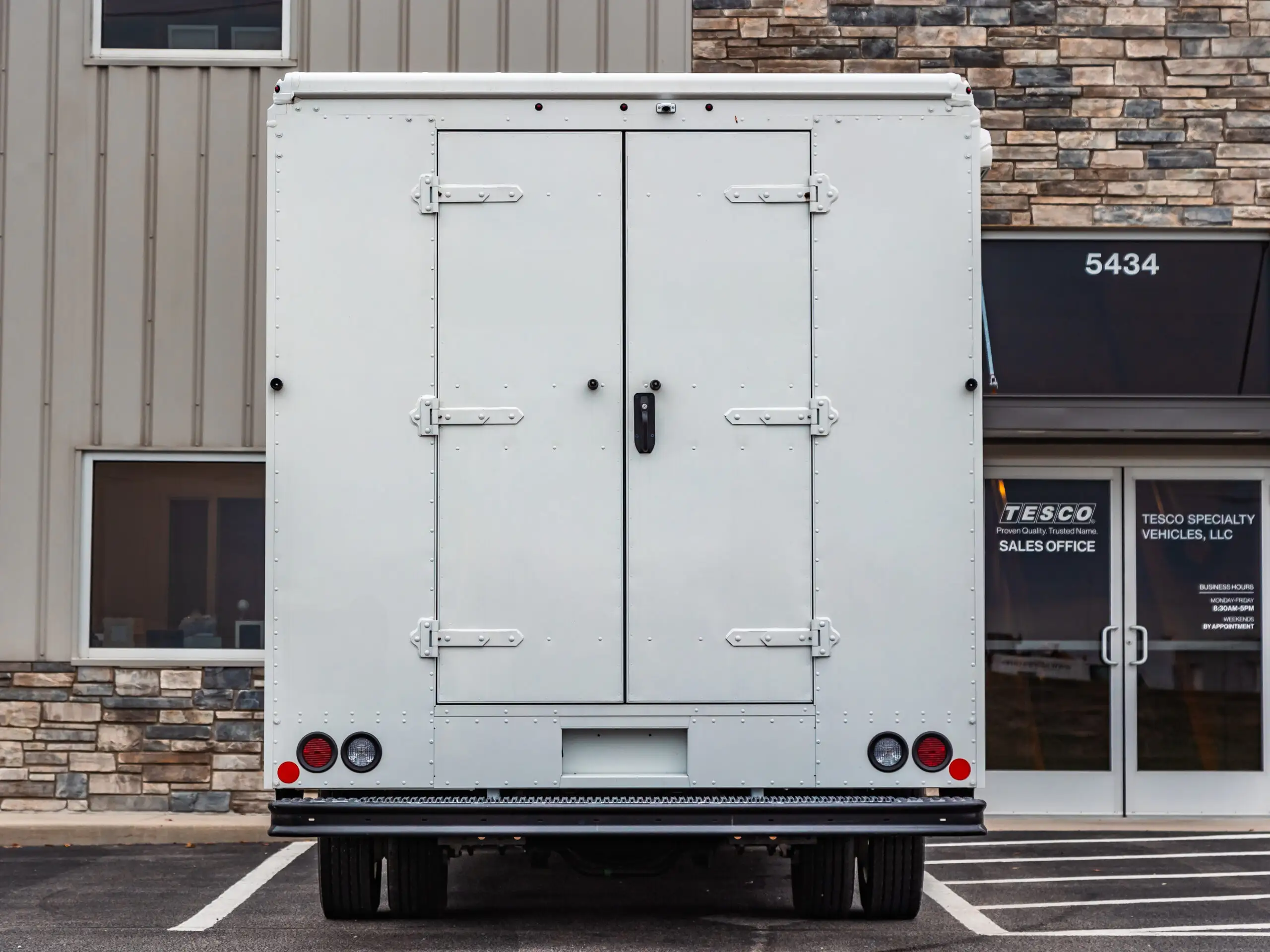

- Rear Swing Doors
- Twin 25" Swg
- Pierce And Roll Construction
- Hinges Nonoffset
- Extra Hinge
- R38 Holdback W/3" Extension
- Heavy Duty Release Lh Door
Standard
- Slamlock Hardware
- Configured Door
- Kason Rear Swing Door Hardware
- Black Finish
- Key To Lock
Seating Options
- Driver Highback Seat
- Std Highback Driver Seat
- Black Vinyl Driver Seat
- No Armrest On Driver Seat
- Fixed Pedestal Driver Seat
- 3pt Seatbelt W/2loc D-Ring

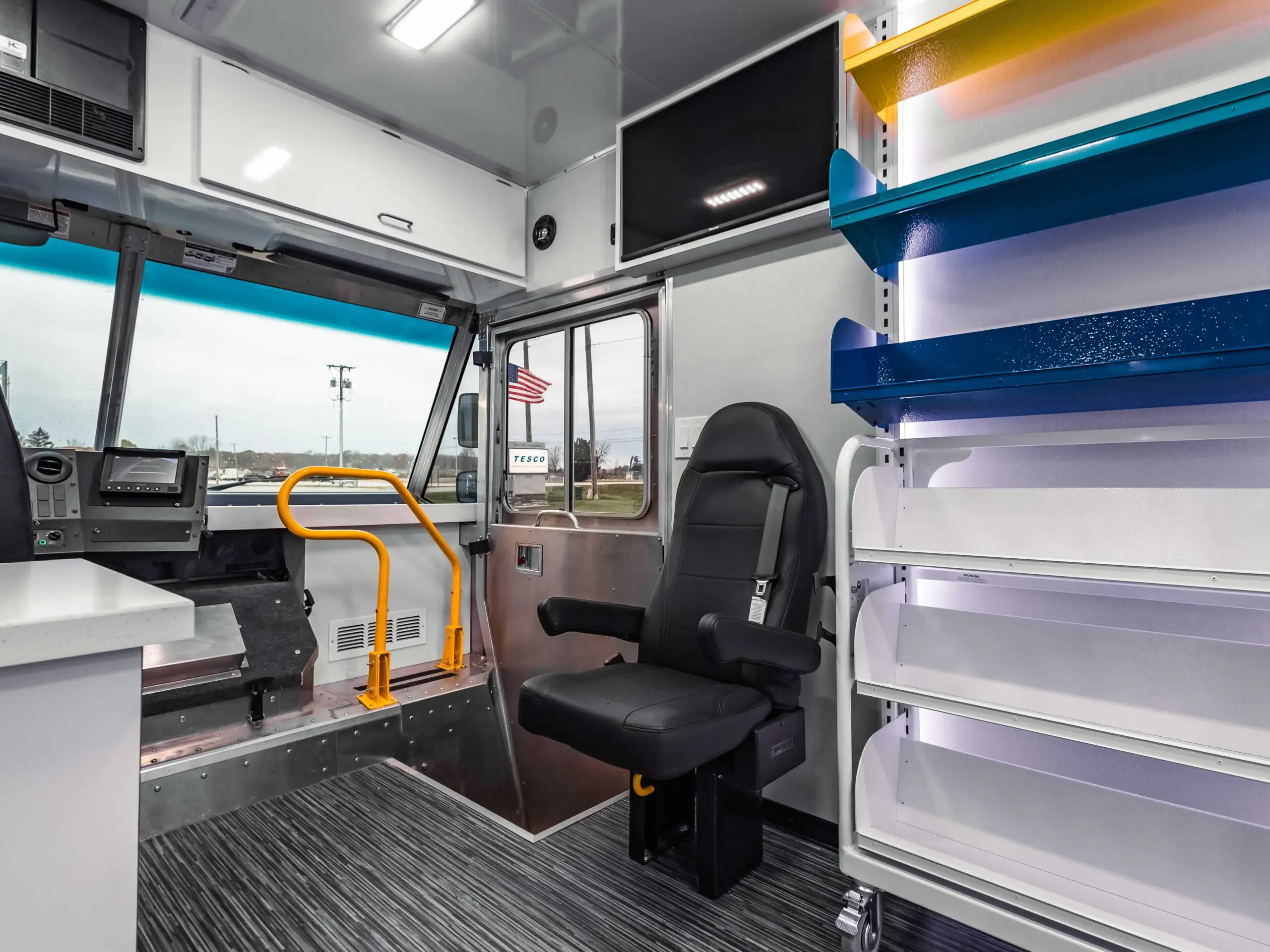

- Bulkhd Mnt Jseat W/Highback 14" Seat
Bulkhead
- Bulkhead W/Ctr Opening & Door
- Blandex Core W/.030 Alum Skin
- Finger Pull Latch
- Bulkhead Seal Kit
Driver Convenience Options
- Single Wiper Motor System
- Non Skid Tape On Cab Floor Risers Safe-T-Tread In Stepwell
- Diesel Sound Reduction Cowl
- Sunvisor Driver Side 8x28
- Sunvisor Passenger Side 8x24
- Abs Cup Holder Lh Dash Mount
- Extra Stiffener On Trans Cover
Worktables, Trays, Storage
- Aluminum Engine Cover
- Alum Doc Hldr 3x8x12 On Eng Cvr
- Cab Overhd Compartment 2 Doors
Dash/Interior Lighting
- Cab Dome Light/Specify Type 4" Led Std
- Centered In Cab
- Dome Light Switch Dash Lighted
- Ergo Dash
- 12v Power Port(1) And (1) Dual Usb Ports Are Included
- Standard With The Ergo Dash.
- No Single Din Radio In Dash
- Delete Cargo Dome Light & Switch
Roof
- Rear Threshold Drains (2)
- Std Body Undercoating
- Undercoat Outside The Rails And Not Between
- Fuel Sending Unit Access
- Wheelwell 46" Wide Aisle Drw
- Special Wheelwells
- Wheelwell 46" W/Aisle 96w Low Mount
- Cargo Floor Planks Max 8"
Side & Rear Wall
- Heavy Duty Stud Profile (Hat Style)
- Optional 24" Spacing
- Round Rubrail Profile
- Standard Sidewall Layout
- .100 Upper /.100 Lower Sidewall Mtl
- Vent Fresh Air 4x10 Qtr Pnl Lh
Rr Bumpers, Hitches, Liftgates
- Gripstrut Bumper
- Gripstrut Bumper 10"
- Fixed Mounted Bumper
Exterior Body Options
- Tinted Windshield W/Shade Band
- Bonded Windshield Glass
- Exterior Mirrors Rosco
- Rectangular Mirrors 6.5x10
- Black Mirror
- Rectangular Convex Mirror 6x6.5
- Not Heated
- Extra Lower Rubrail
- Fuel Fill Door & Closer
- Wheelwell Cutout Location
Hood & Frt Bumper Options
- Rim Liftup Hood
- Halogen Headlights Atc Rect
- Seven Tube Grille Insert
- Utilimaster 9" Front Bumper 7ga
- Extra Hood Hold Downs
Paint & Decal Options
- Paint Ext Standard White
- Sherwin Williams G2-4804482
- Dupont N0006hn
- Paint Front Bumper Standard Black
- Paint Rear Bumper Standard Black
Ext Lighting
- Tail Lights
- 4.5" Led (Std)
- Grommet Mounted Led Stt & Backup Led Backup Lt (Std)
- Clearance Lights
- Led Mini Marker Frt & Rear (Std)
- Mini Clearance Lts In Rear Corners
- Led Front Turn Lts (Std)
- Led Front Turn Lts Black Flange
- Led License Plate Centered (Std)
- Tail & Back Up Lts In Kickplate Std
- Rear Taillight Wiring Shield
HVAC
- Cab Ac W/Electronic Controls
- Heater 40k Btu/Hr With "Clean Air Technology"
- Btu Output For The Air Conditioning Is 19k
Electrical
- Backup Camera Systems
- Voyager Systems
- Monitor Video On Full Time
- LCD Color Monitor
- 7" LCD Color Monitor New Ergo Dash
Chassis Related Options
- Front End Alignment (Toe-In Only)
- PDI / Utilimaster Supplied
- PDI / Utilimaster Supplied Ford
- Enclose Battery Box
Customers have to say:
FAQ
Do we need a Commercial Driver License (CDL) to drive a TESCO Specialty Vehicle?
Our Vehicles do not require a special drivers license. They are designed to be under CDL requirements of a Gross Vehicle Weight Rating of 26,000lbs or less.
Are your vehicles commercial grade?
Our vehicles are NEVER built from retrofitted RV’s which are not designed to hold up to the operational use of medical clinics. Each TESCO Specialty vehicle is custom built for its commercial application, with steel body construction directly to the chassis. We welcome the opportunity to show you the difference and review with you our manufacturing process.
Where do you ship your vehicles?
We ship our vehicles to every state in the US and have the capabilities to ship internationally.
Do you offer Warranty Coverage?
Yes. Each vehicle comes with a 3 to 5-year warranty for the chassis and body. Please contact us to learn more about our various warranty coverages.
What do I need to consider when starting a mobile unit program?
There are several key strategic areas to consider. At TESCO we offer a free consultation with our Director of Specialty. Our director has a clinical background and years of healthcare service line development, including real life experience with deploying a mobile unit program. We will be able to offer guidance on market research, setting a budget, design, and other strategic operational considerations. Please feel free to schedule appointment here.
How do we power our mobile unit?

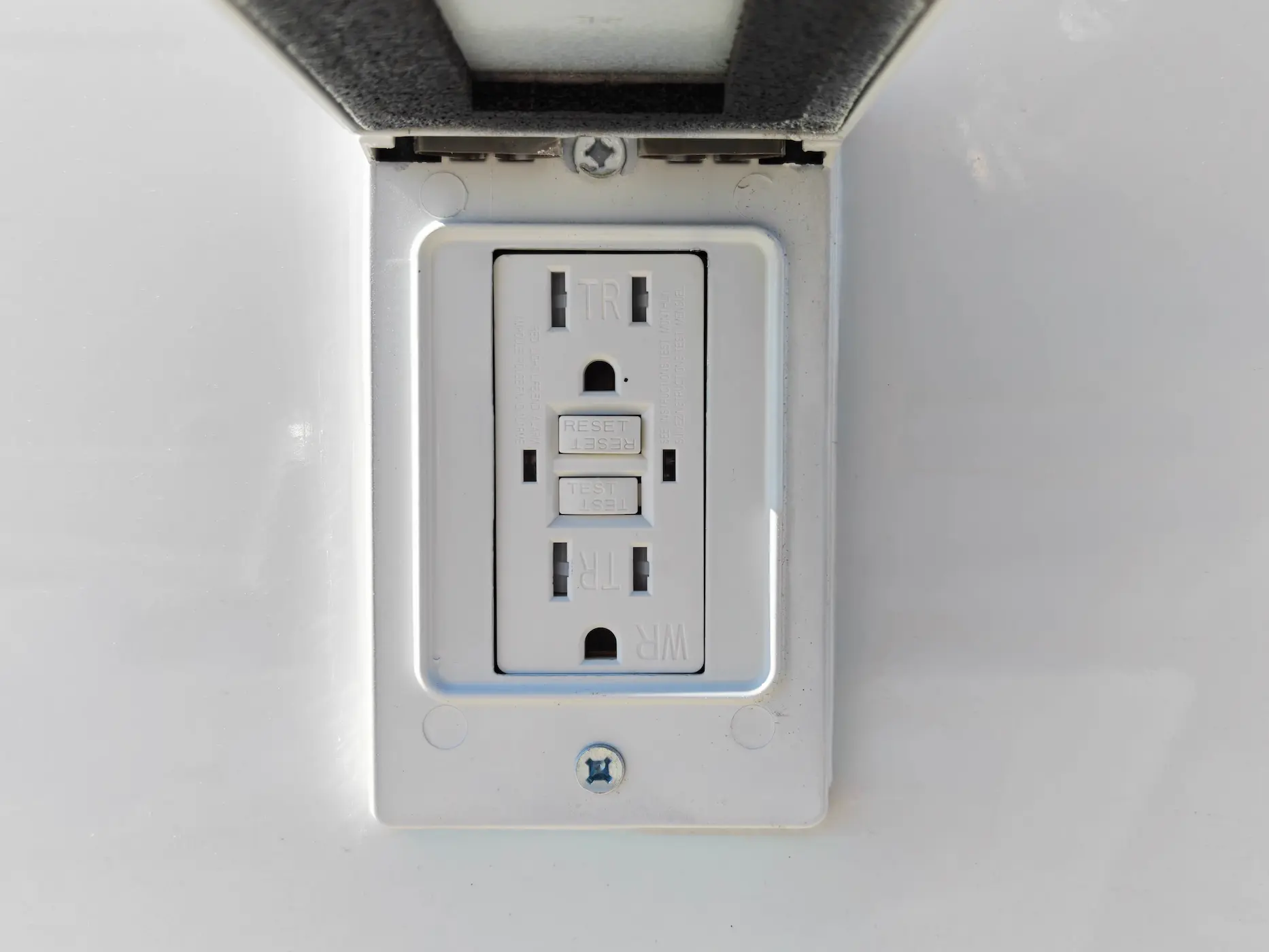

Every unit comes with a commercial grade generator and shore power capabilities. Shore power can provide the unit access to power at your parking locations to run your mobile unit electrical systems without use of generator. Please schedule a call with us to learn more about our custom electrical solutions.
What training and support is offered?
We offer onsite training at delivery of your unit, and ongoing virtual training support. We also offer preventative maintenance tools for your unit.
Do you offer Financing?
We have unique leasing programs. Please schedule a meeting with us to learn more about our financing and leasing options.
Can we trade in our used mobile unit?
We offer a robust used unit program. Please schedule a call with us to discuss your needs and current used mobile unit.
