29ft Two Room Mobile Medical Trailer
Group J
See 360 View
Check Floor Plan
360° Tour

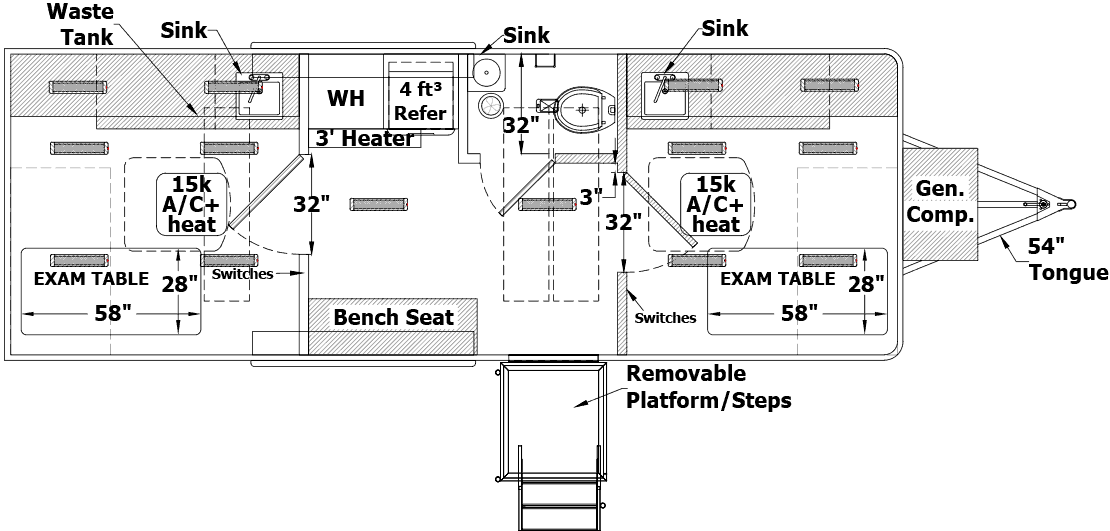

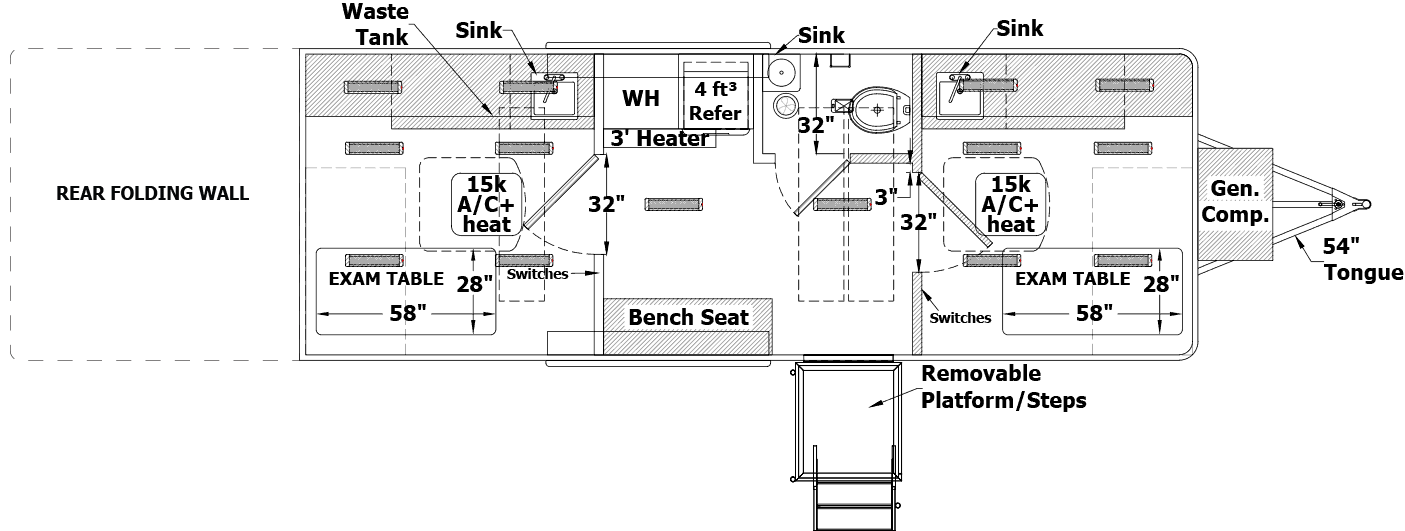

Floorplan
Vehicle Description
Overall

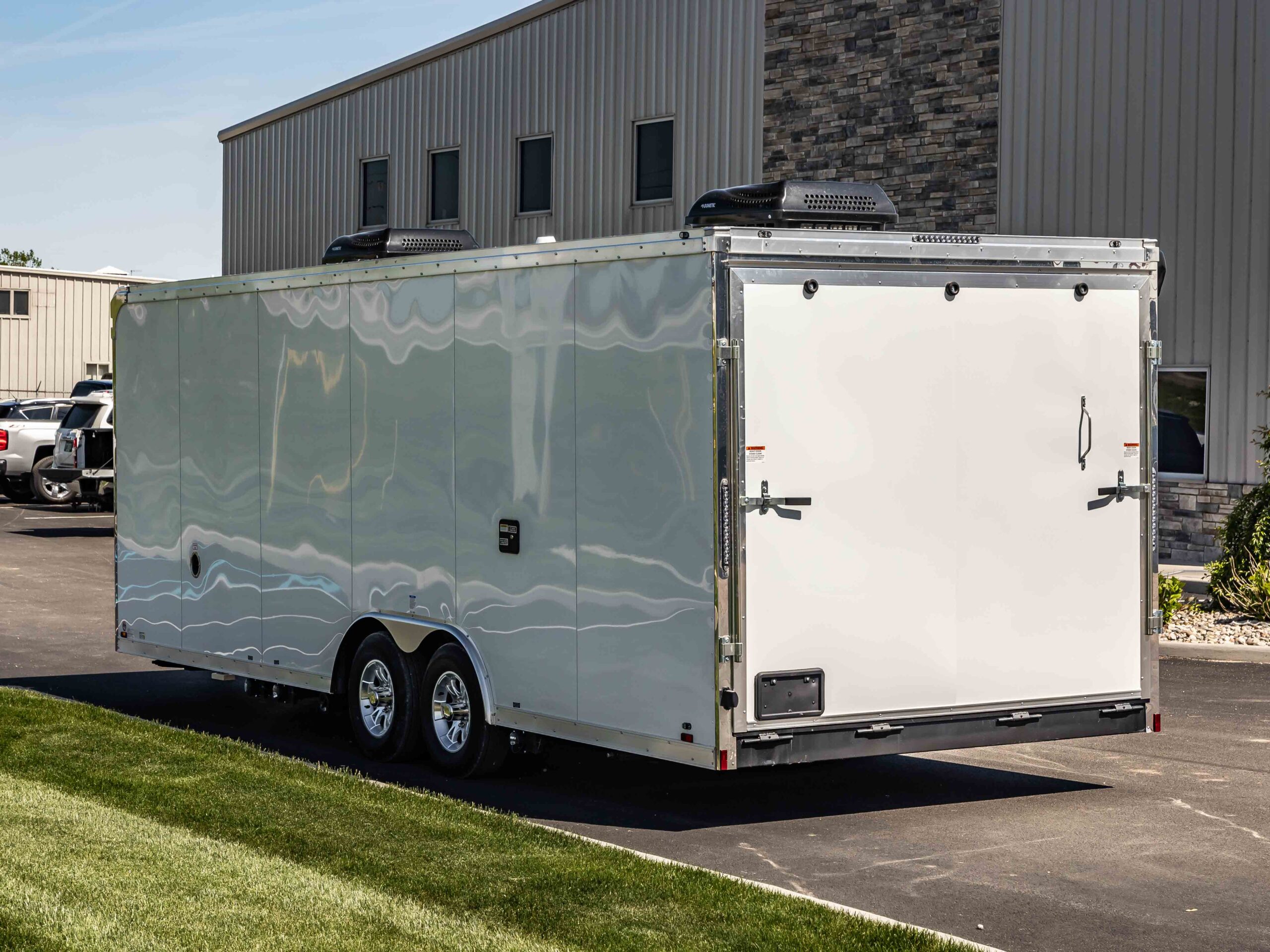

- Cargomate 29' Trailer with 18" Wedge Front Nose
- 9,800 lbs Gross Vehicle Weight Rating
- 18 Gallon Fuel Tank
- Special Trailer Tires Designated for Towing
- Silver Powder Coated Wheels
- Heavy Duty Cage Design
- Cage Primered with Rust Inhibitor to Minimize Corrosion
- Floor and Underbody Undercoated For Sound Deadening
- Bead Board Insulated Walls For Sounds Deadening and Efficient Temperature Control

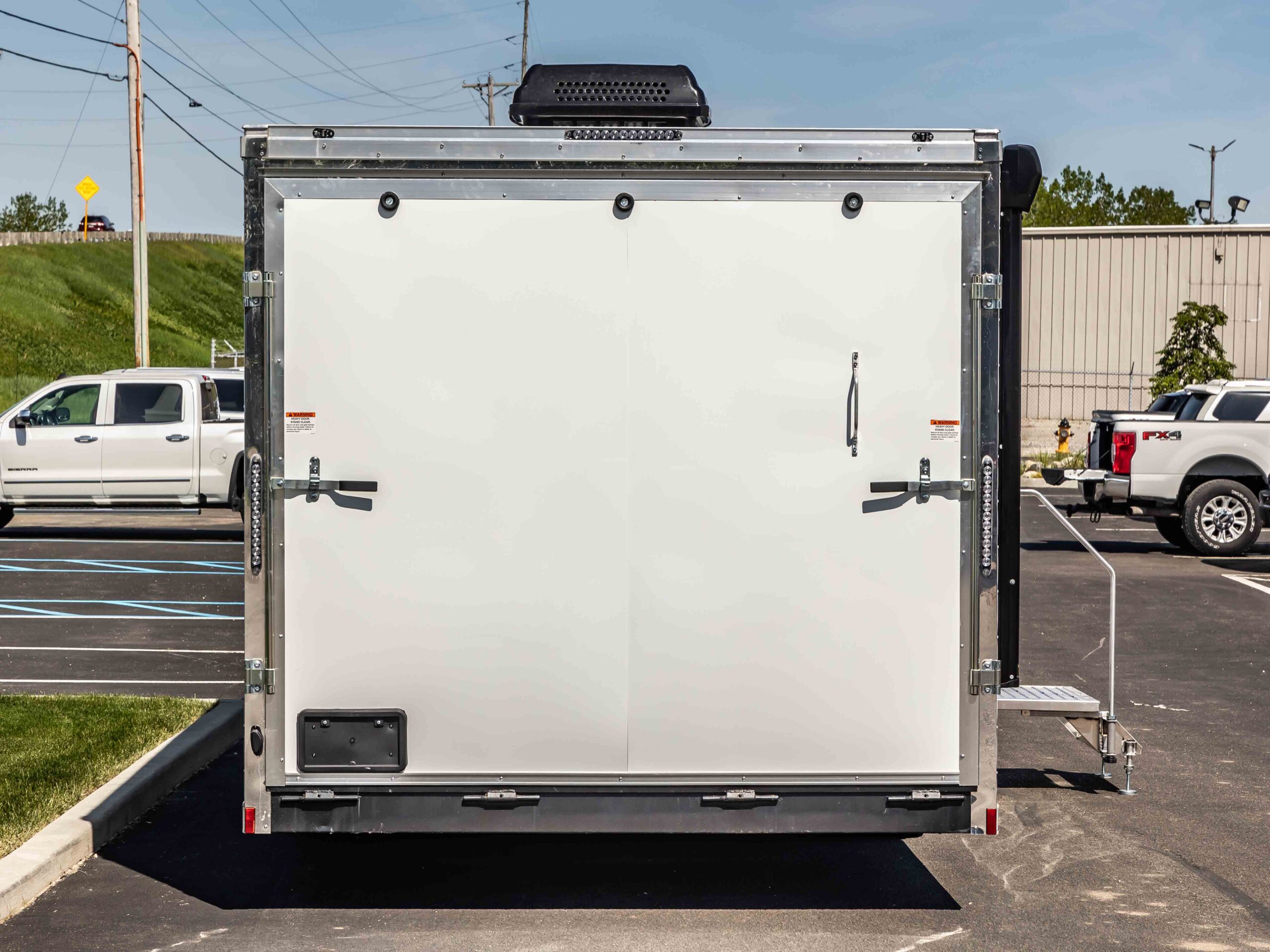

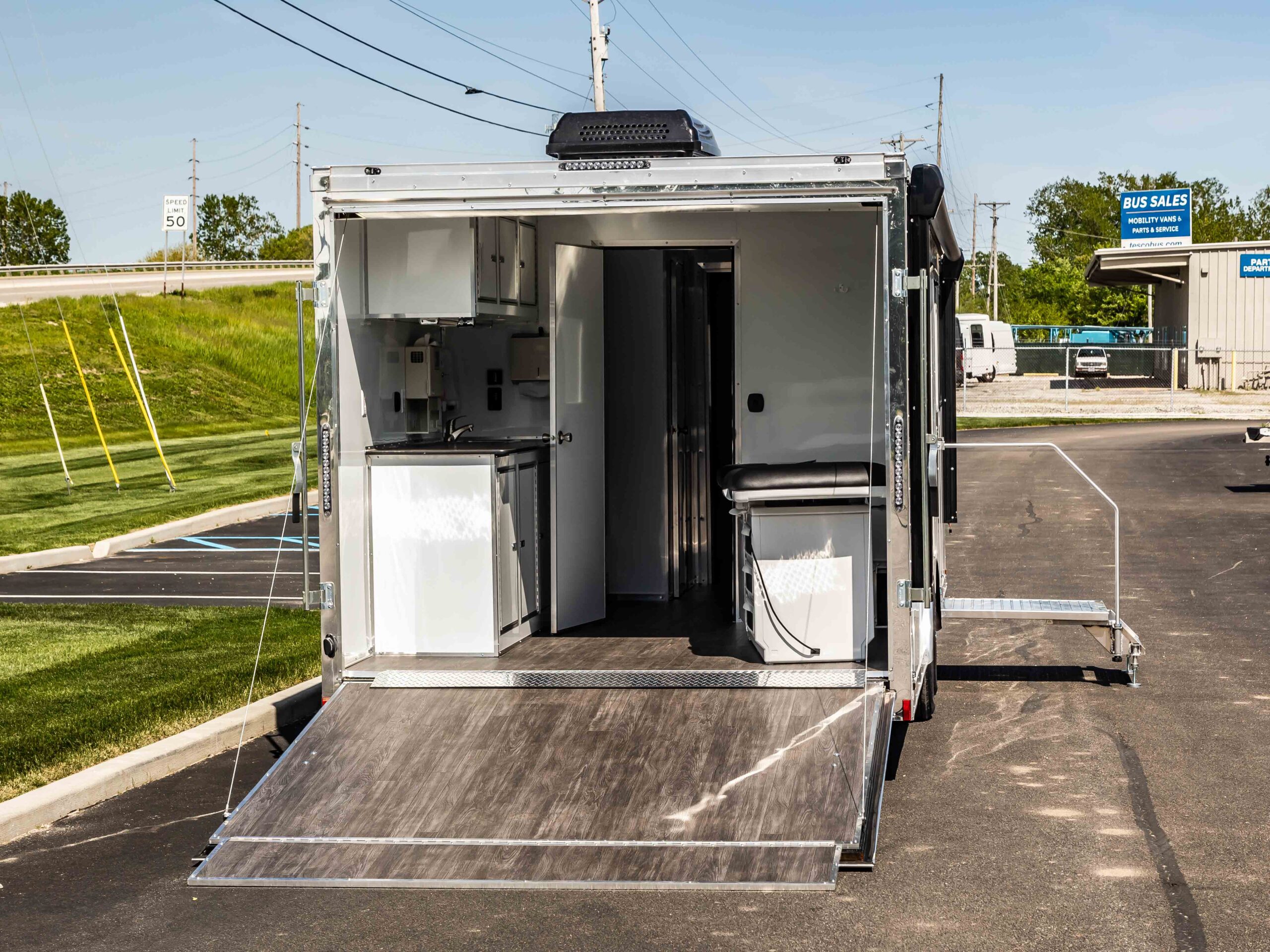

- No-Show Beavertail
- Dual Delux Scissor Jacks with Hand Crank, Pair 5000 lb Capacity
- 16" ATP Stone Guard
- Welded Safety Chains

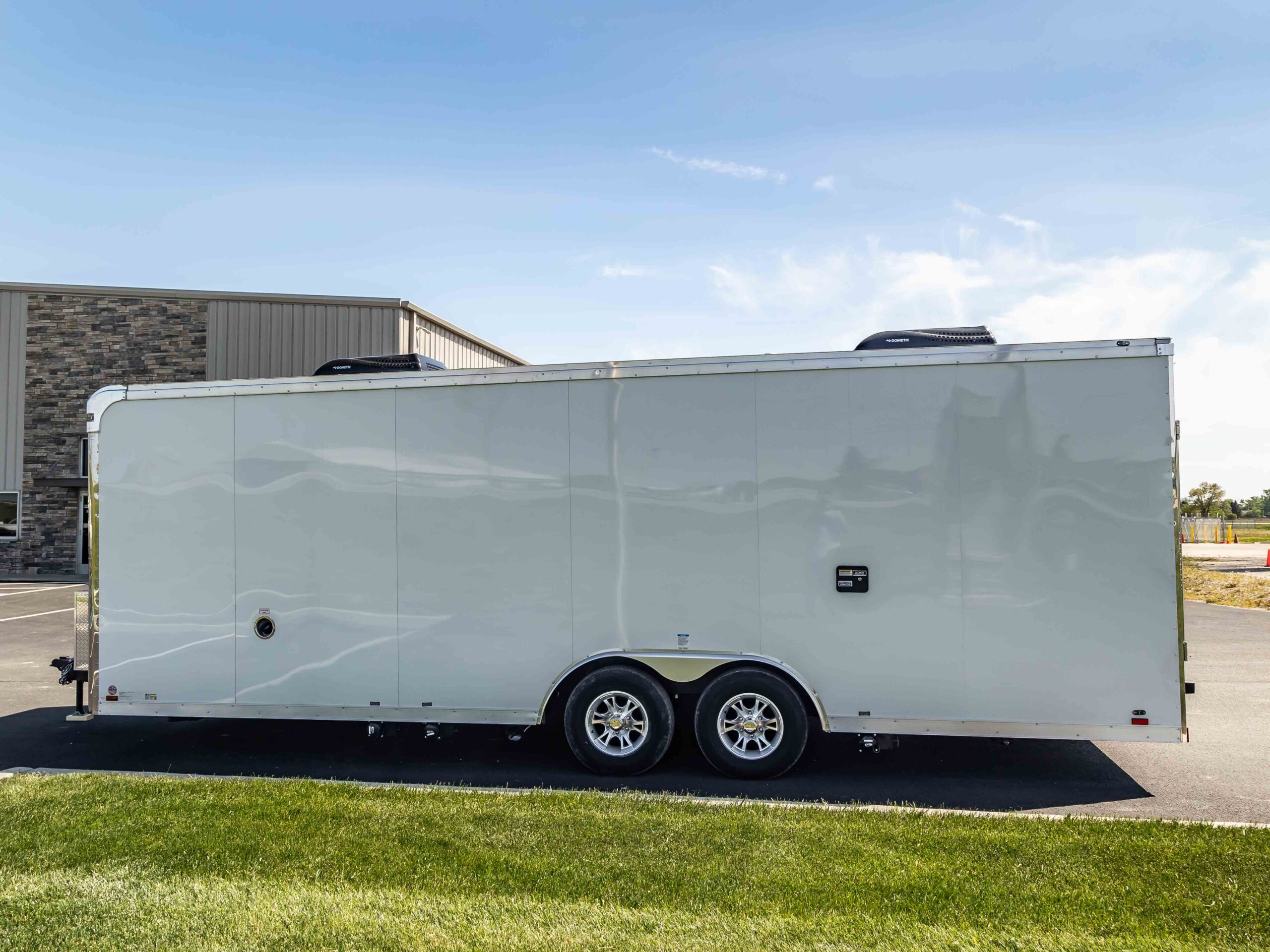

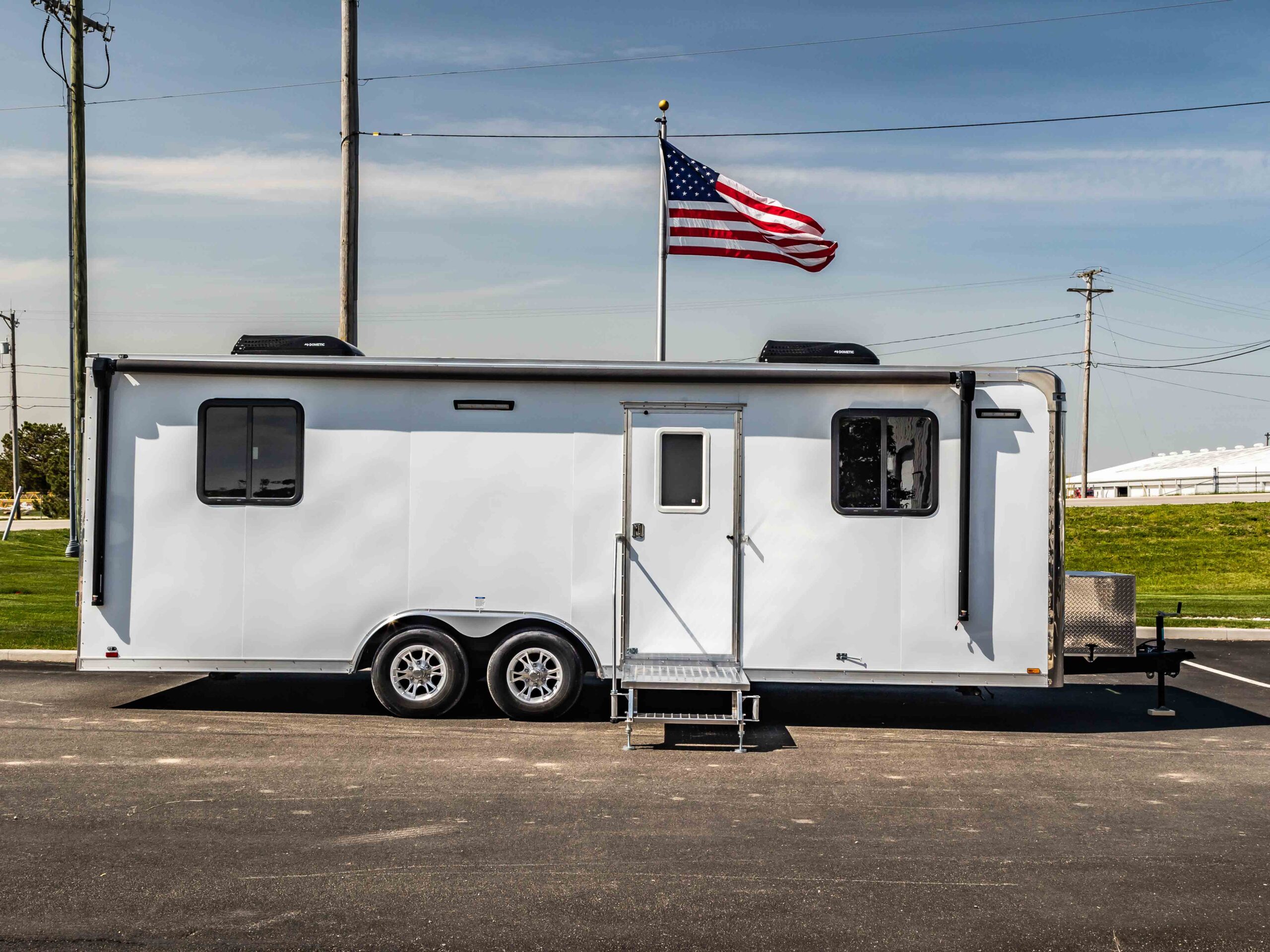

Exterior

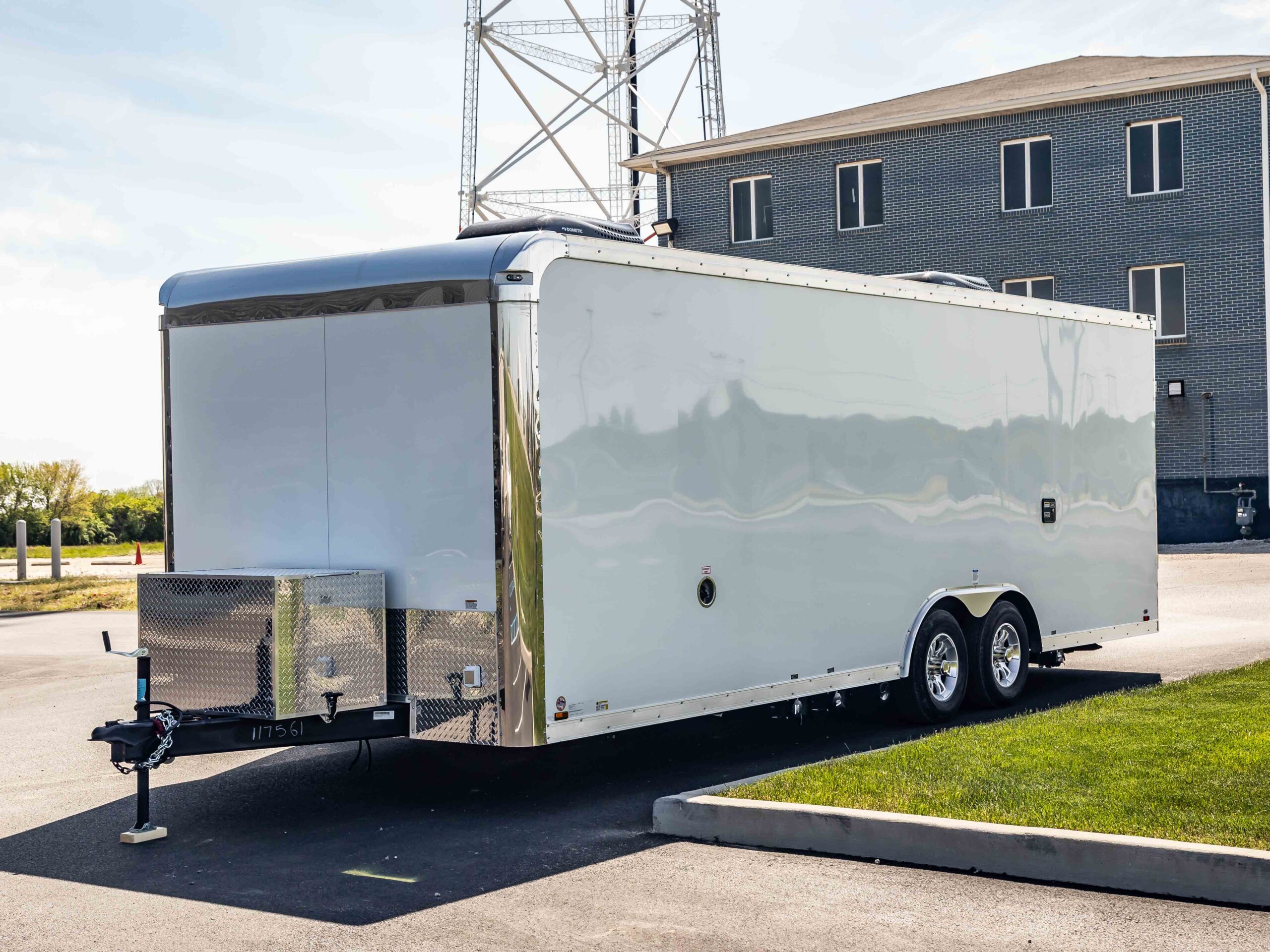

- 54" Extended Triple Tube Tongue
- Tongue Mount Generator Compartment
- .050 Polar White Aluminum Exterior, Per Foot
- 32" RV Door with Window, Screen Door, Deadbolt and Keys
- 102" Wide Porch/Steps/Railing
- 22' Power Awning (9000 Series)
- Dual 17" Exterior Sigma LED Lighting
- Galvanized Roof
- Aluminum Exterior Wheel Fenders
- 12" x 16" Lockable Water Fill Access Door with Keys

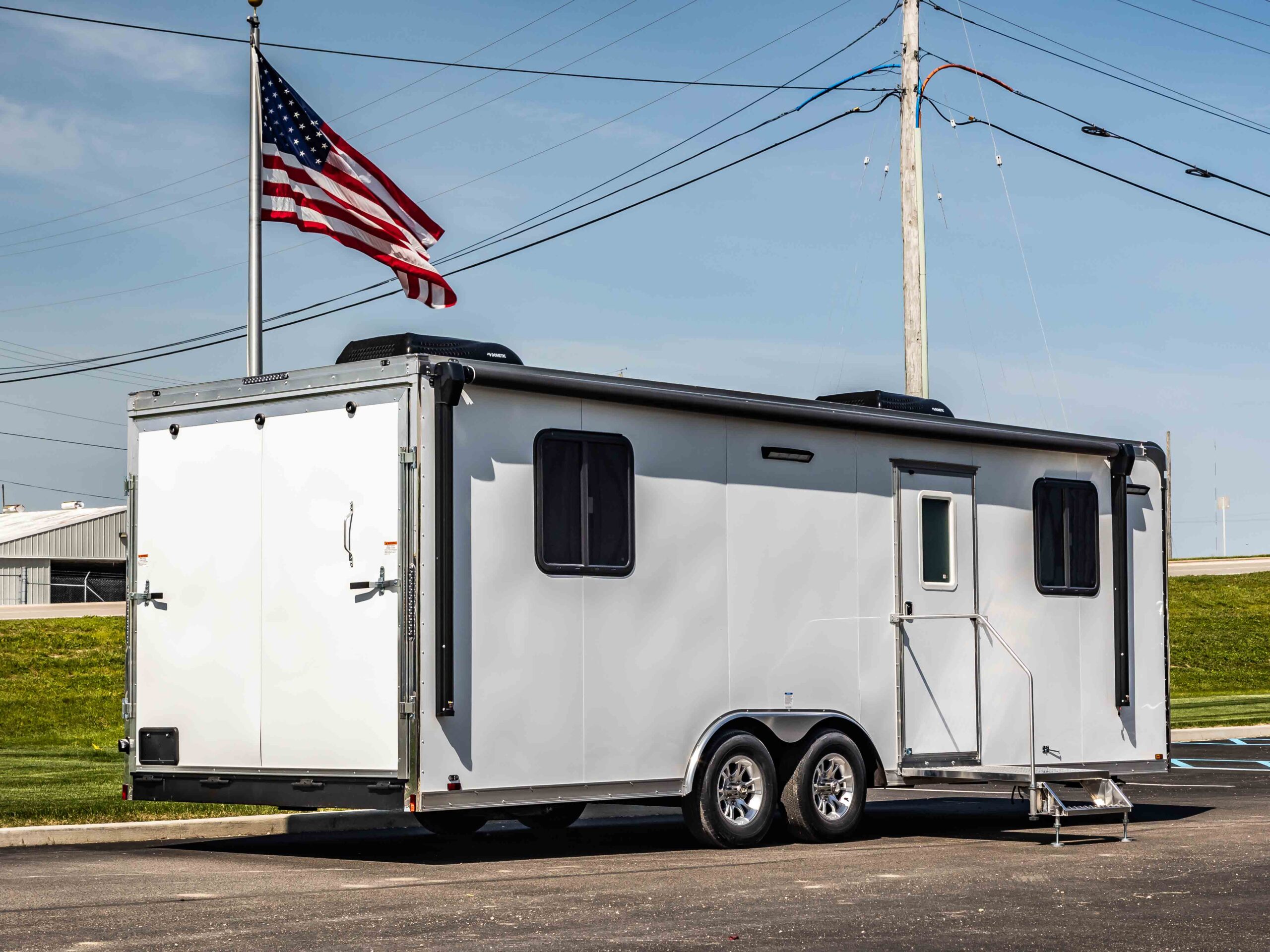

- Dual Egress Bay Windows 30" x 30" with Slider
Interior
- White Aluminum Interior Wall Liner
- 82" Upgraded Interior Height
- Completely Flat Floor
- Commercial Vinyl Flooring
- 18" Sigma LED Interior Lighting Throughout
- Aluminum Corner Boards and Door Trim
- Tankless Water Heater Upgrade
Electrical
- Commercial Grade Cummins Onan 7kw Generator With Prep Kit
- Generator Remote Start System
- 50 Amp Shore Power with 28 ft length Cord

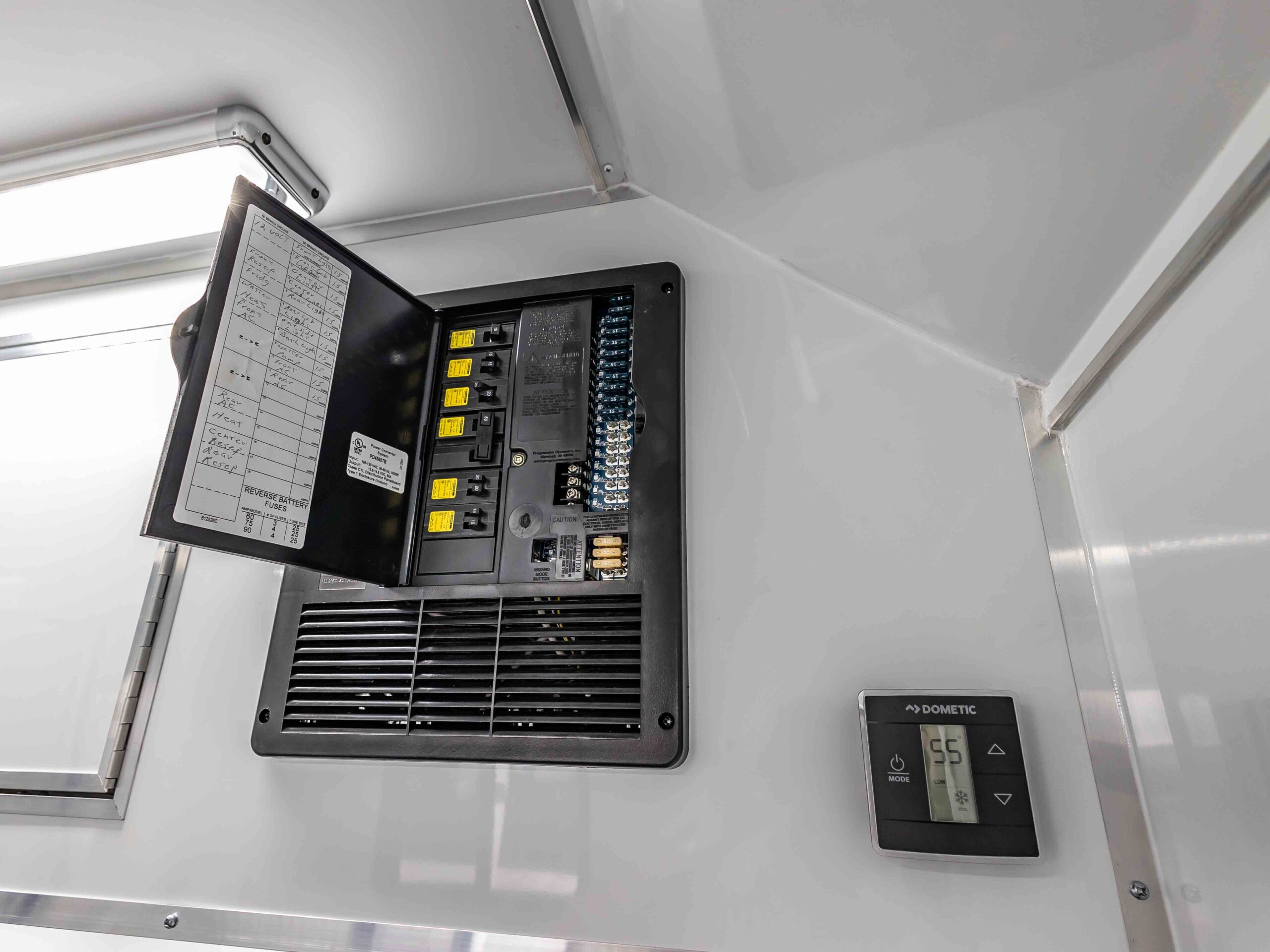

- 60 Amp Power Converter Distribution Panel
- Automatic Transfer Switch
- GFI Interior Outlets Throughout
- High Performance AGM 900 CCA Battery
Climate Control
- Dual 110V 15,000 BTU Rooftop Air Conditioners
- 3' Base Heater in Middle Waiting Room
Lavatory
- Lavatory Room with Toilet, Sink, Paper Towel Dispenser, and Trash
- Roof Vent
- Hand Wash and Foamy Sanitizer
- Plumbing System with Fresh Water and Individual Black Water Tanks
- Sewer Hose with Carrier
Safety
- 5 lb Fire Extinguisher
- Smoke and Carbon Monoxide Detector
- Safety Triangles For Roadside Emergency
- Eye Wash Station
- 24 Unit First Aid Kit

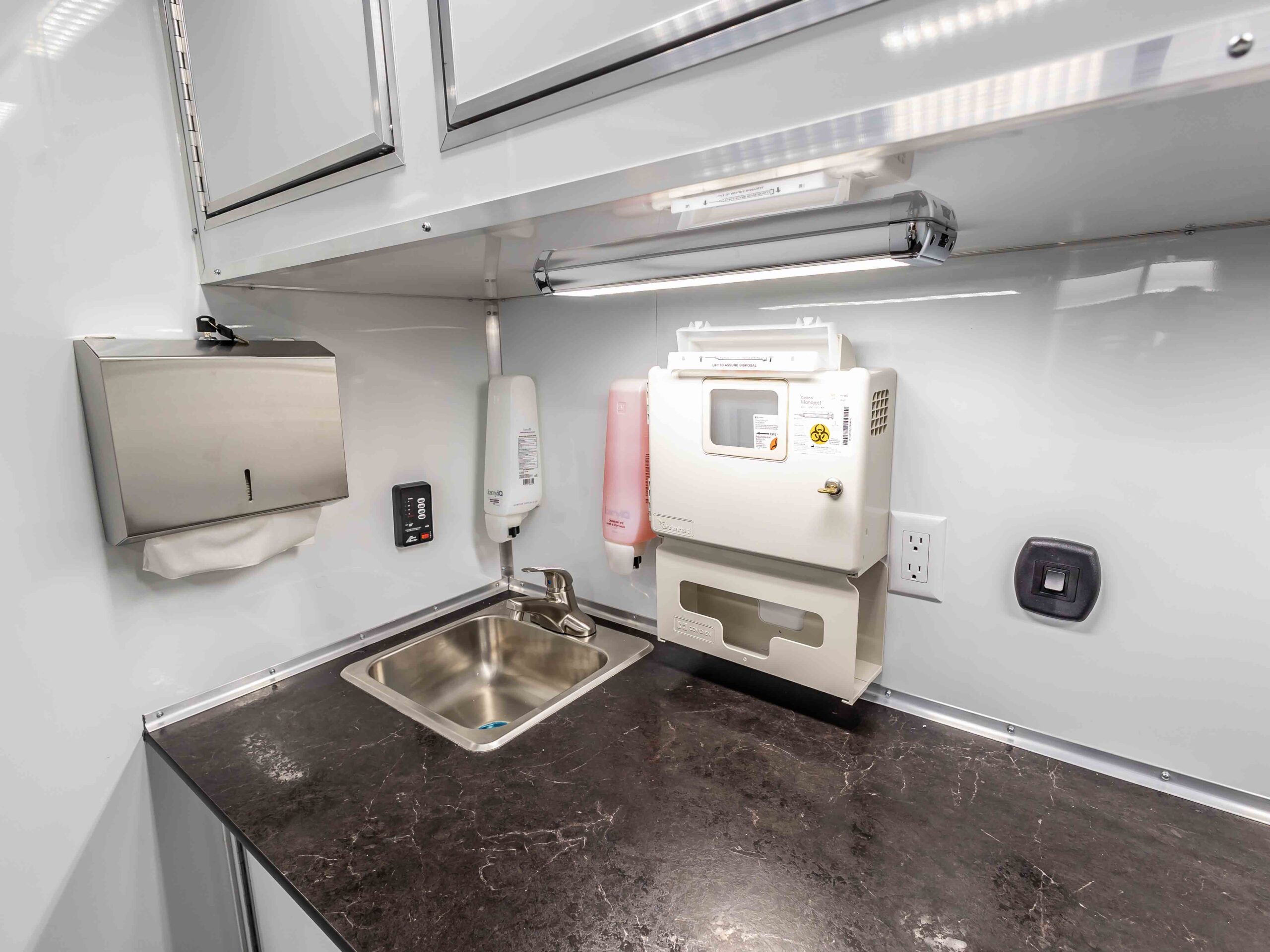

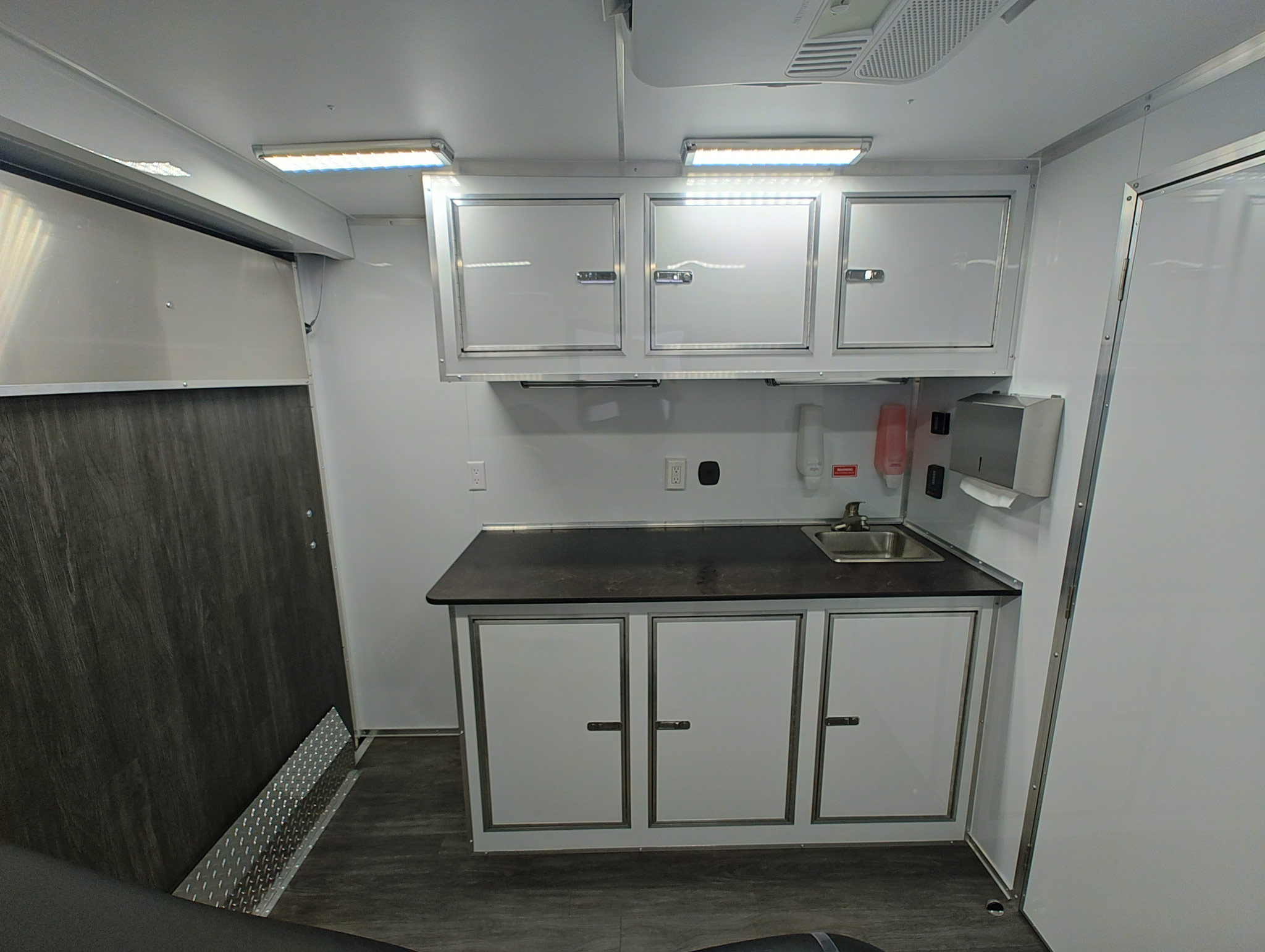

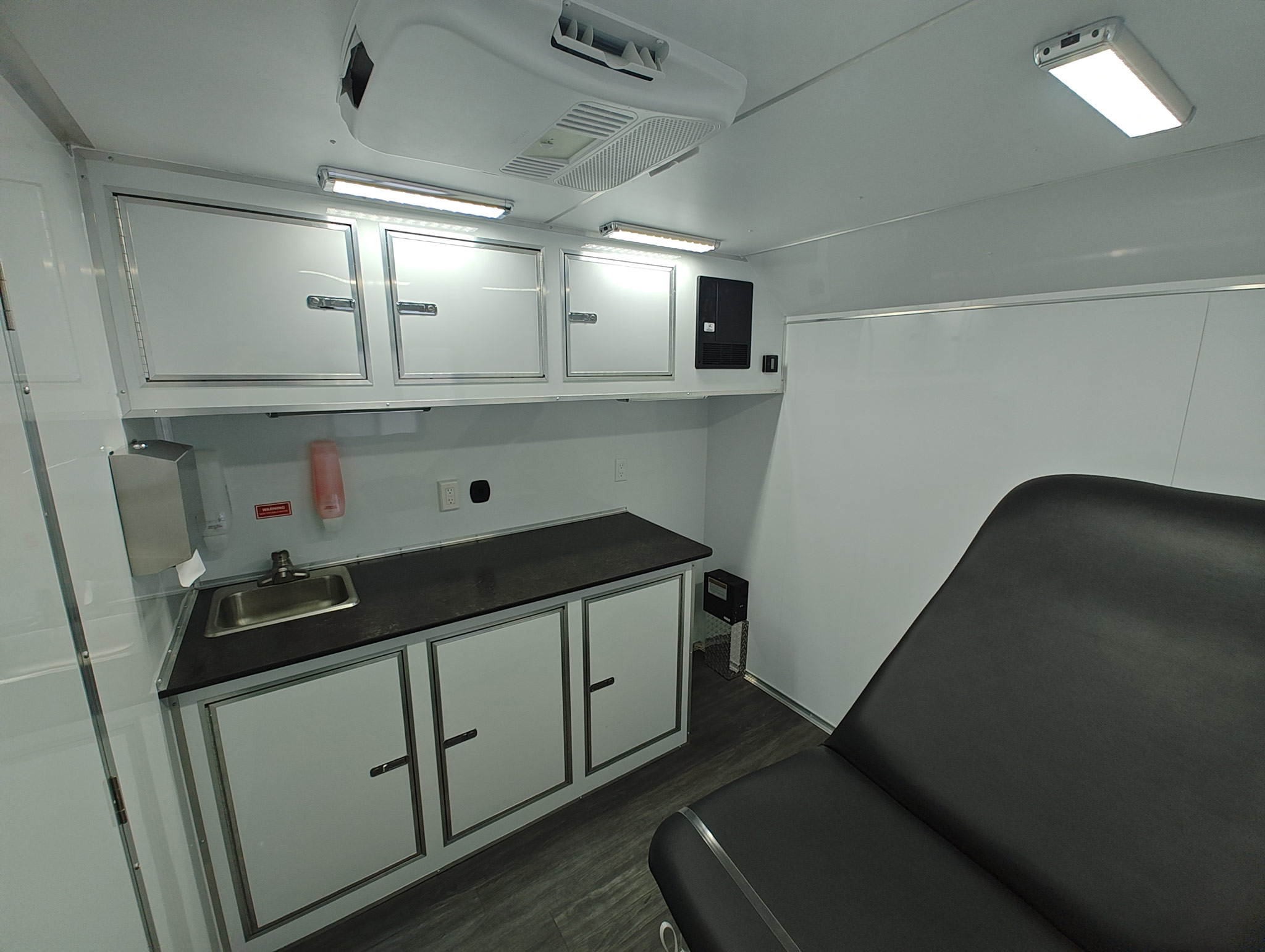

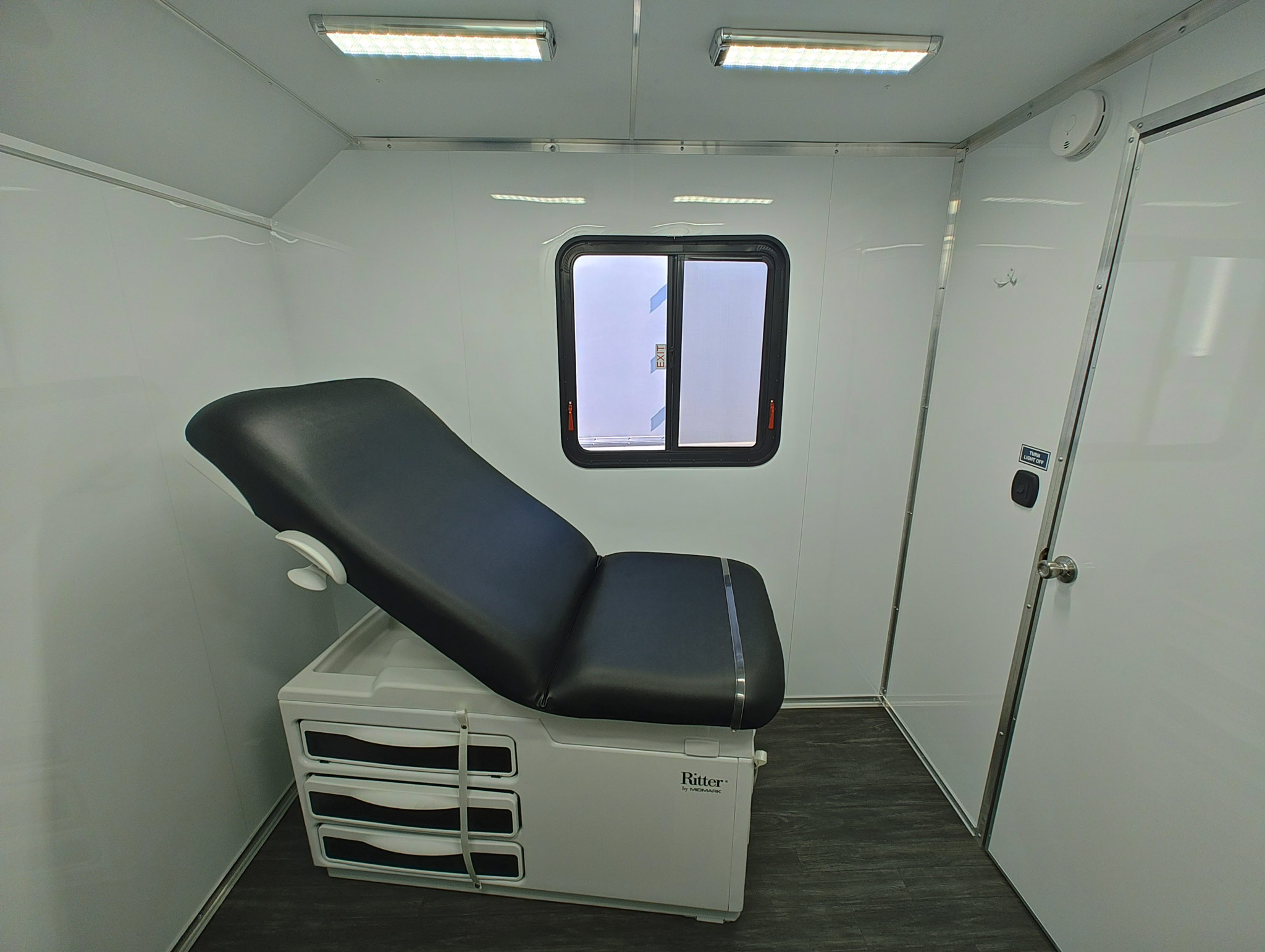

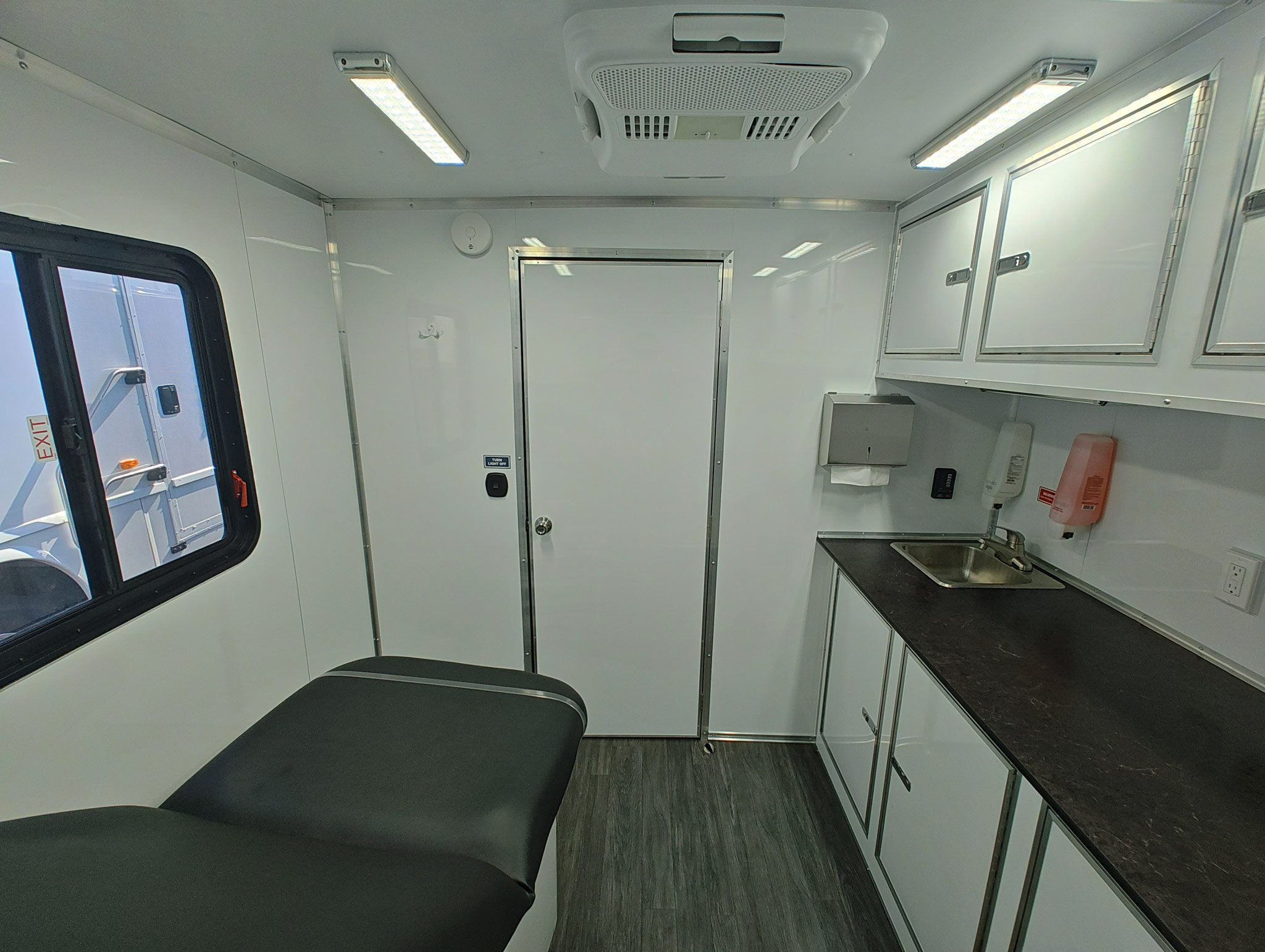

Front Exam Room
- Ritter 204 Exam Table with Stirrups
- Locking Upper and Lower Cabinets
- Dark Gray Countertops
- Under Cabinet LED Lighting
- Stainless Steel Sink with Heat
- Paper Towel Dispenser
- Hand Sanitizer System
- Sharps Disposal with Medical Glove Disposal Underneath
- Electric Tank Monitoring System
Middle Waiting Room

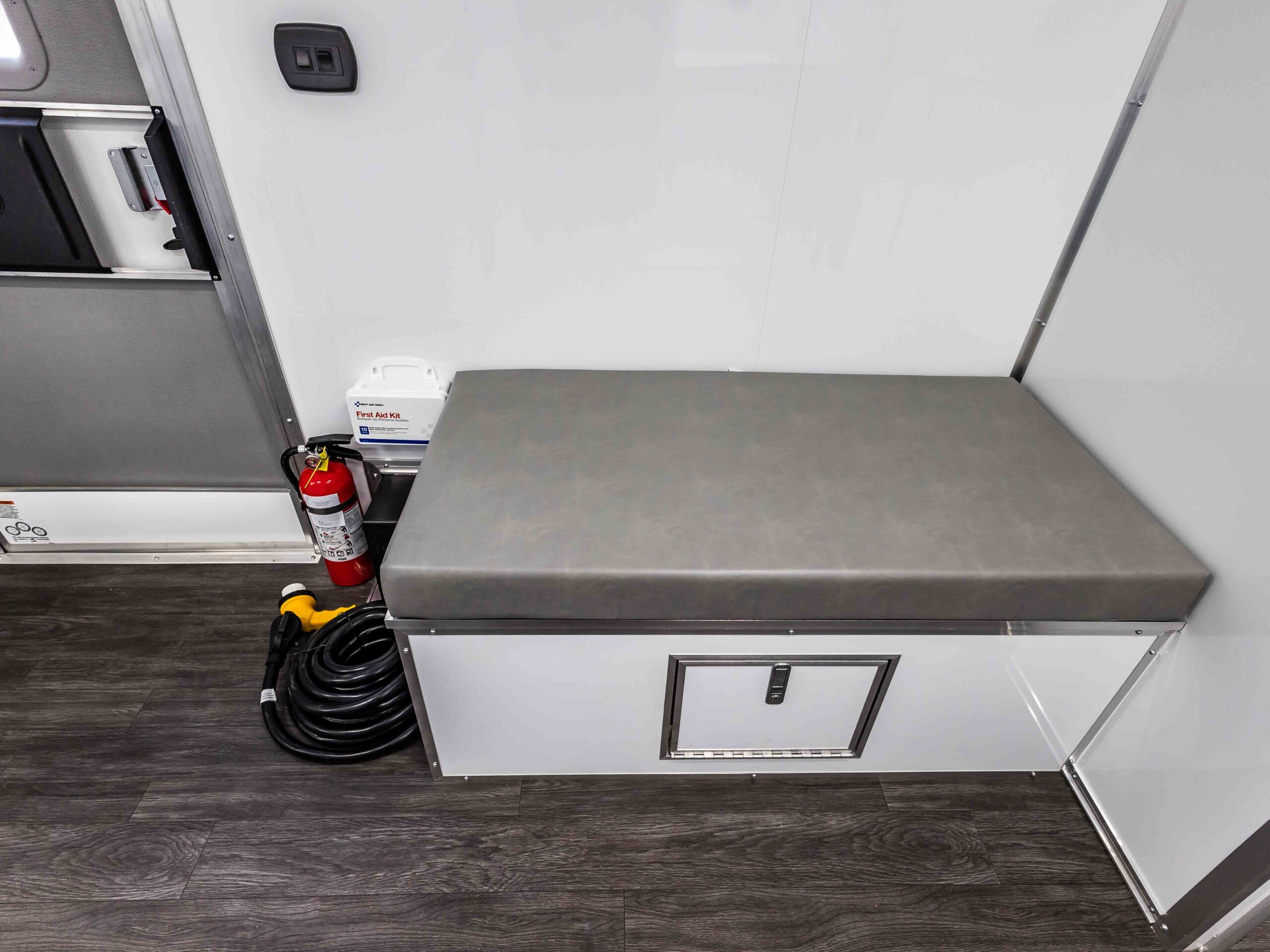

- 4' Waiting Area Bench with Vinyl Cushion and Under Storage
- Locking Lower Cabinet
- 4 cu ft Convenience Refrigerator
- Hand Sanitizer System

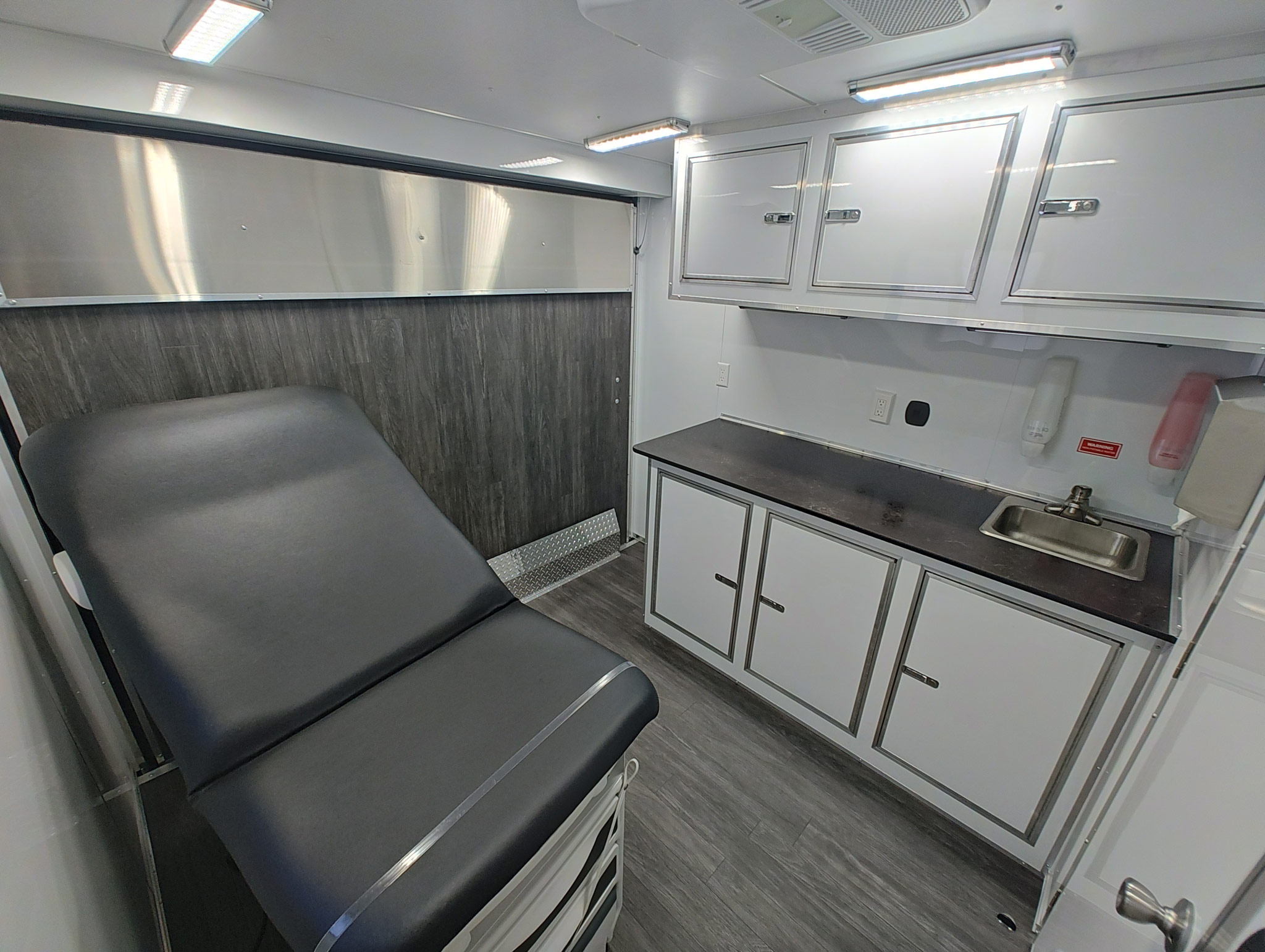

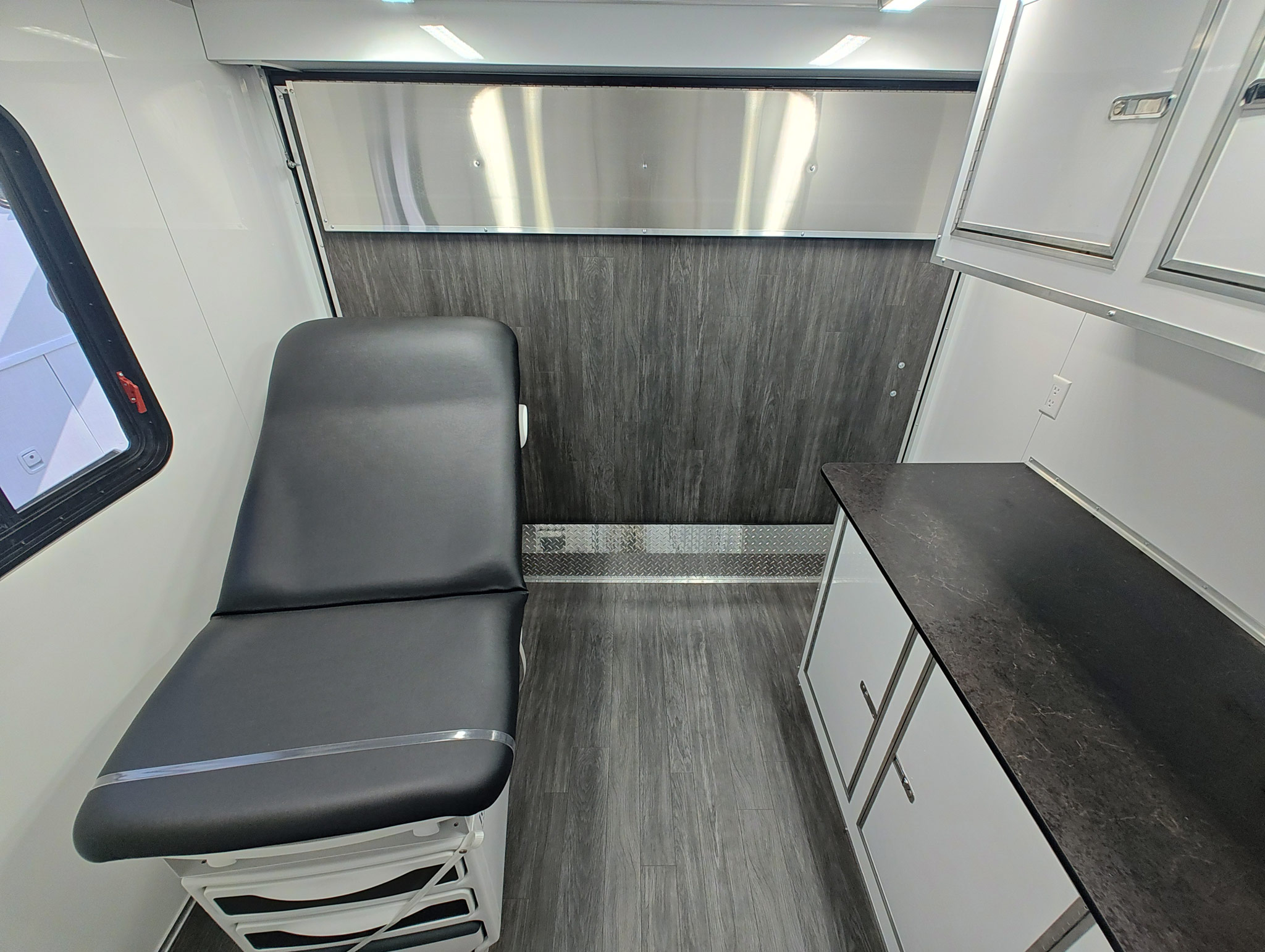

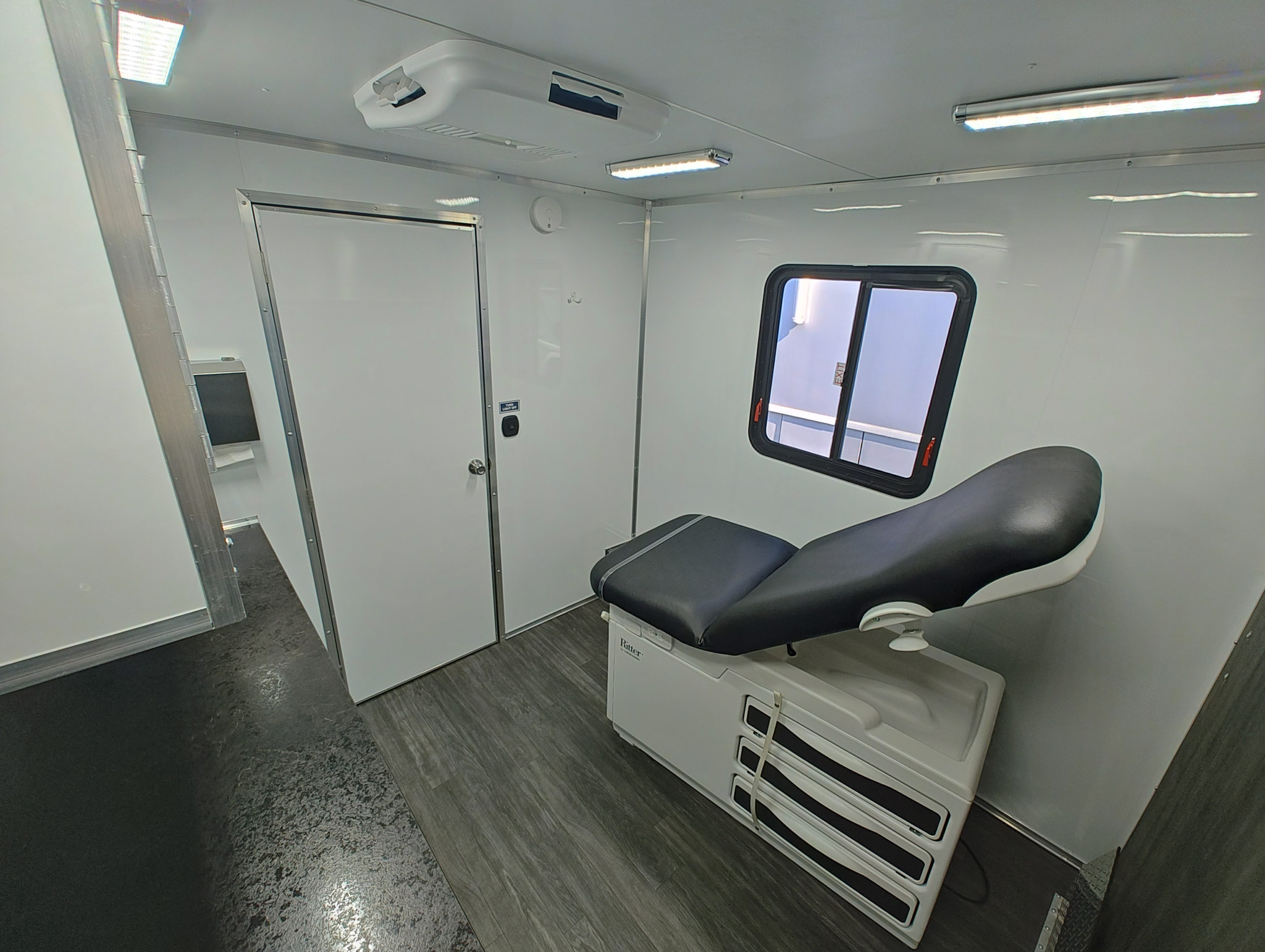

Rear Exam Room
- Ritter 204 Exam Table with Stirrups
- Locking Upper and Lower Cabinets
- Dark Gray Countertops
- Under Cabinet LED Lighting
- Stainless Steel Sink with Heat
- Paper Towel Dispenser
- Hand Sanitizer System
- Sharps Disposal with Medical Glove Disposal Underneath
- Electric Tank Monitoring System
Common Options
- Vehicle Based WiFi Internet Access
- Welch Allyn Diagnostic Board
- Full Wrap Exterior Graphics Package
- Vehicle Leveling System
- Specimen Pass Thru
- Delivery and On-Site Training Package
- Additional Options Available
Customers have to say:
FAQ
Do we need a Commercial Driver License (CDL) to drive a TESCO Specialty Vehicle?
Our Vehicles do not require a special drivers license. They are designed to be under CDL requirements of a Gross Vehicle Weight Rating of 26,000lbs or less.
Are your vehicles commercial grade?
Our vehicles are NEVER built from retrofitted RV’s which are not designed to hold up to the operational use of medical clinics. Each TESCO Specialty vehicle is custom built for its commercial application, with steel body construction directly to the chassis. We welcome the opportunity to show you the difference and review with you our manufacturing process.
Where do you ship your vehicles?
We ship our vehicles to every state in the US and have the capabilities to ship internationally.
Do you offer Warranty Coverage?
Yes. Each vehicle comes with a 3 to 5-year warranty for the chassis and body. Please contact us to learn more about our various warranty coverages.
What do I need to consider when starting a mobile unit program?
There are several key strategic areas to consider. At TESCO we offer a free consultation with our Director of Specialty. Our director has a clinical background and years of healthcare service line development, including real life experience with deploying a mobile unit program. We will be able to offer guidance on market research, setting a budget, design, and other strategic operational considerations. Please feel free to schedule appointment here.
How do we power our mobile unit?
Every unit comes with a commercial grade generator and shore power capabilities. Shore power can provide the unit access to power at your parking locations to run your mobile unit electrical systems without use of generator. Please schedule a call with us to learn more about our custom electrical solutions.
What training and support is offered?
We offer onsite training at delivery of your unit, and ongoing virtual training support. We also offer preventative maintenance tools for your unit.
Do you offer Financing?
We have unique leasing programs. Please schedule a meeting with us to learn more about our financing and leasing options.
Can we trade in our used mobile unit?
We offer a robust used unit program. Please schedule a call with us to discuss your needs and current used mobile unit.
